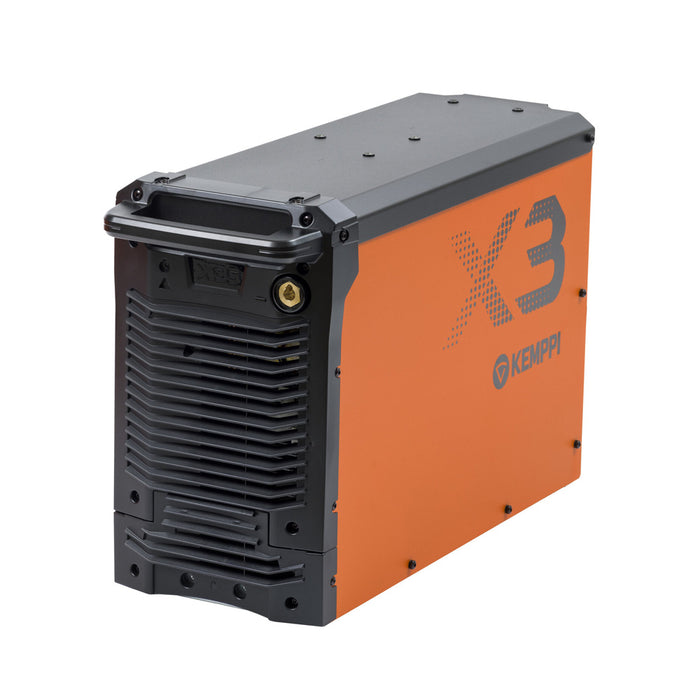

X3P POWER SOURCE PULSE 400 GM

Kemppi X3P Power Source Pulse 400 GM — Industrial Multi-Voltage Pulse MIG/MAG Power Source

The Kemppi X3P Power Source Pulse 400 GM is an industrial multi-voltage pulse MIG/MAG power source delivering 400 A at 60% duty cycle (380–460 V) and 400 A at 40% duty cycle (220–230 V). Includes 71 factory-installed welding programs, pulse MIG, 1-MIG synergic, MMA, and gouging. Generator-compatible. Part of the X3 FastMig system.

What Is the Kemppi X3P Power Source Pulse 400 GM?

The Kemppi X3P Power Source Pulse 400 GM is a high-output, industrial-grade pulse MIG/MAG power source and the multi-voltage variant of the X3P FastMig family. It delivers 400 A at a 60% duty cycle on a 380–460 V 3-phase supply and 400 A at a 40% duty cycle on a 220–230 V 3-phase supply — maintaining full 400 A output capability across both voltage ranges.

The GM designation confirms two key capabilities that set this model apart from the standard X3P 450 G:

• G — Generator compatible: rated for generator power supply with a recommended minimum generator output of 25 kVA, enabling full-output pulse MIG/MAG welding wherever 3-phase mains is not available
• M — Multi-voltage: accepts both 380–460 V ±10% and 220–230 V ±10% 3-phase inputs, making this the preferred choice for operations running across multiple facilities with different 3-phase voltage standards, international export projects, or mining and resource operations where infrastructure voltage varies

The X3P Power Source Pulse 400 GM is a power source only — it pairs with the X3 HD200 or X3 HD300 wire feeder to form a complete X3 FastMig MIG/MAG welding system. The control panel and DuraTorque 4x4 wire drive are located in the wire feeder, making the power source the pure energy platform of the system.

With 71 factory-installed welding programs covering the most common industrial filler materials — and supporting five welding processes including Pulse MIG/MAG, 1-MIG synergic, Manual MIG/MAG, MMA, and carbon arc gouging — the X3P 400 GM is ready for industrial production from day one.

Designed and manufactured in Finland. Compliant with IEC 60974-1 and -10.

Key Features of the Kemppi X3P Power Source Pulse 400 GM

Pulse MIG/MAG — Low-Spatter, High-Quality Arc Control

As an X3P model, the Power Source Pulse 400 GM includes full Pulse MIG/MAG welding capability — the key differentiator from the X3S synergic-only models. Pulse MIG delivers a controlled, low-spatter arc that significantly reduces post-weld cleanup time and improves fusion quality on aluminium, stainless steel, and thin-sheet mild steel. For operations where weld appearance, spatter reduction, and heat management are priorities, pulse MIG delivers measurable productivity and quality gains over standard MIG/MAG.

400 A Output Across Both Voltage Ranges

The X3P 400 GM delivers 400 A MIG output at a 60% duty cycle on 380–460 V and 400 A at a 40% duty cycle on 220–230 V — maintaining consistent maximum output regardless of which voltage range is active. This dual-voltage full-output capability is a significant advantage over machines that de-rate substantially on low-range input, ensuring that operations on 220–230 V 3-phase infrastructure are not restricted to lower welding productivity.

71 Factory-Installed Welding Programs — Ready From Day One

The X3P Power Source Pulse 400 GM ships with 71 factory-installed welding programs covering both 1-MIG (synergic) and Pulse MIG processes across the full range of common industrial filler materials:

• Fe — mild steel solid wire
• Ss — stainless steel solid wire
• AlSi5 — aluminium alloy wire
• AlMg5 — aluminium alloy wire
• Fe Metal — metal-cored wire
• Fe Rutil — rutile flux-cored wire
• FC-CrNiMo — flux-cored CrNiMo wire
• CuSi3 — silicon bronze wire

Wire diameters covered range from 0.8 mm to 2.0 mm — including larger diameter cored wires suited to high-deposition production welding. All 71 programs are immediately usable out of the box, with no additional program purchases, software setup, or commissioning fees required.

Multi-Voltage Operation — 380–460 V and 220–230 V (3-Phase)

The GM model accepts both 3-phase 380–460 V ±10% (standard Australian and European industrial supply) and 3-phase 220–230 V ±10% (low-range multi-voltage input used in some industrial facilities and international markets). This multi-voltage flexibility makes the X3P 400 GM the practical choice for:

• Operations maintaining welding fleets across Australian and international facilities
• Mining and resources companies with sites across different power infrastructure standards
• Export manufacturers and contractors who move equipment between different voltage environments
• Rental and hire fleets that must serve customers across varying 3-phase supplies

Generator Compatible — Industrial Pulse MIG Anywhere

The G designation confirms the X3P 400 GM is rated for generator operation with a recommended minimum generator power of 25 kVA, enabling full pulse MIG/MAG output from a site generator. For construction, heavy civil, mining maintenance, and remote infrastructure projects where 3-phase mains is unavailable, the X3P 400 GM delivers the same pulse arc quality and output as a fixed-workshop installation — powered entirely from a site generator.

Five Industrial Welding Processes in One Power Source

The X3P 400 GM supports five welding processes when paired with an X3 wire feeder:

• Pulse MIG/MAG — controlled, low-spatter arc for aluminium, stainless steel, and thin sheet
• 1-MIG (synergic MIG/MAG) — automatic parameter coordination from a single arc length control
• Manual MIG/MAG — full manual control over voltage and wire feed speed
• MMA (stick) — electrode welding capability for repair and site applications
• Carbon arc gouging — material removal and joint preparation without a dedicated gouging machine

Icon-Based User Interface — Fast Setup, No Language Barriers

The X3 FastMig system's non-language icon-based interface (located on the X3 wire feeder's control panel) provides immediate, intuitive access to process, program, and parameter selection without requiring language-specific menu navigation. Setup is fast for any operator regardless of experience level or native language — a practical advantage in multi-national workforces and high-turnover welding environments.

Welding Cable Calibration Without Sensing Cable

The X3P 400 GM supports welding cable calibration without a separate voltage sensing cable — a key practical advantage in industrial environments where cable management is critical. Calibration ensures accurate voltage delivery at the arc regardless of interconnection cable length or resistance variation.

Marathon Pack Compatible

In addition to standard wire spools, the X3P 400 GM system supports marathon pack (bulk drum) wire configurations via the X3 HD300 wire feeder — enabling uninterrupted high-volume continuous welding production without frequent spool changeovers. This is a significant efficiency gain on high-throughput production lines and long-seam fabrication applications.

Safe Crane Lift from Wire Feeder Handle

When paired with the X3 HD300 wire feeder, the complete wire feeder assembly — including welding torch, filler wire spool, and cable set — can be safely lifted and suspended by crane from the feeder handle. Water hoses and cable connectors are located outside the feeder casing for quick and easy torch package swapping during service or torch changeovers.

CAN Bus Communication — System Integration Ready

The X3P 400 GM uses CAN bus communication between the power source and wire feeder, supporting robust, high-integrity data transfer within the X3 FastMig system and enabling integration with optional remote controls and monitoring systems.

VRD — Voltage Reduction Device

The X3P 400 GM includes VRD (Voltage Reduction Device) functionality at 24 V open-circuit voltage in MMA mode, reducing electric shock risk when the arc is not struck — an important safety feature for site and confined space MMA welding applications.

Optional Remote Controls

The X3P 400 GM system supports optional HR53 wireless hand remote (with display) and GRe50 on-torch remote control, allowing welding current and program adjustment from the torch position — essential for large fabrication bays, confined spaces, and positional welding where frequent travel back to the wire feeder is impractical.

X3P 400 GM vs X3P 450 G — Choosing the Right Model

Who Is the Kemppi X3P Power Source Pulse 400 GM For?

The X3P Power Source Pulse 400 GM is designed for:

• Industrial fabrication and manufacturing operations running across multiple facilities with different 3-phase voltage standards — domestically and internationally
• Mining, resources, and civil contractors needing full-output pulse MIG/MAG from a site generator on remote projects
• Shipyards and heavy fabrication operations requiring pulse MIG on aluminium, stainless steel, and structural steel with marathon pack capability
• Export manufacturers and international contractors who deploy welding equipment across varying 3-phase voltage environments
• Equipment hire and rental fleets serving customers across multiple voltage standards without maintaining separate machine inventories
• Heavy production welding environments where 71 pre-installed programs across all major filler materials eliminates program setup time at commissioning

Kemppi X3P Power Source Pulse 400 GM — Technical Specifications

Frequently Asked Questions — Kemppi X3P Power Source Pulse 400 GM

What does X3P 400 GM mean? X3P identifies this as the Pulse model in the X3 FastMig family — supporting pulse MIG/MAG in addition to synergic and manual MIG processes. 400 is the maximum welding output in amps. G indicates generator compatibility. M indicates multi-voltage capability — the machine accepts both 380–460 V and 220–230 V 3-phase supplies.

Is the X3P 400 GM a complete welding system? No. The X3P 400 GM is a power source only — it requires an X3 HD200 or X3 HD300 wire feeder to form a complete X3 FastMig welding system. The wire feeder houses the control panel, DuraTorque 4x4 wire drive, and program interface. Power source and wire feeder are purchased separately, allowing customers to select their preferred feeder configuration.

What is the difference between the X3P 400 GM and the X3P 450 G? The X3P 450 G delivers a higher maximum output of 450 A at 60% duty cycle, but accepts only standard 380–415 V 3-phase input. The X3P 400 GM delivers 400 A at 60% duty cycle (380–460 V) or 400 A at 40% duty cycle (220–230 V), providing multi-voltage flexibility at a small trade-off in peak output. The 400 GM is the preferred choice where multi-voltage or generator operation across different voltage environments is required; the 450 G is preferred where maximum output on a fixed 400 V supply is the priority.

What is the difference between the X3P and X3S models? X3S models (Synergic) support Manual MIG, 1-MIG synergic welding, MMA, and gouging. X3P models (Pulse) add Pulse MIG/MAG capability to the full X3S process set. The X3P 400 GM includes 71 factory-installed programs covering both synergic and pulse processes; the X3S 400 GM includes programs for synergic processes only.

What generator is needed to run the X3P 400 GM? Kemppi recommends a minimum generator output of 25 kVA to power the X3P 400 GM at full welding capacity on 3-phase 380–460 V input.

What filler wire types and sizes does the X3P 400 GM support? The X3P 400 GM supports Fe (mild steel solid), Ss (stainless steel), AlSi5 and AlMg5 (aluminium), CuSi3 (silicon bronze), Fe Metal (metal-cored), Fe Rutil (rutile flux-cored), and FC-CrNiMo (flux-cored CrNiMo) wires from 0.8 mm to 2.0 mm diameter — all covered by factory-installed welding programs.

Can the X3P 400 GM be used with a marathon pack? Yes. When paired with the X3 HD300 wire feeder, the X3P 400 GM supports marathon pack (bulk drum) wire configurations for continuous high-volume welding production without frequent spool changeovers.

What wire feeder should be used with the X3P 400 GM? The X3P 400 GM is compatible with both the X3 HD200 (200 mm spool feeder) and the X3 HD300 (300 mm spool / marathon pack feeder with DuraTorque 4x4 drive). The HD300 is recommended for production environments requiring large spool capacity, marathon pack operation, and the full safe crane-lift capability.

Does the X3P 400 GM have Bluetooth or wireless connectivity? No. The X3P 400 GM uses CAN bus wired communication between the power source and wire feeder. Optional wireless remote controls (HR53 hand remote and GRe50 torch remote) communicate with the wire feeder's control panel rather than the power source directly.
