WELDMAX TURNING ROLLER 1000KG INC IDLER, CONTROL BOX & PEDAL

by WELDMAX
Excludes GST - GST calculated at checkout
PN WMXTR-1000

Advantages of Weldmax WMXTR-1000 Turning Roller
Specifically designed to rotate pipe for circular welding, cutting, and painting jobs.

Features
• Device for the turning and positioning of small tanks and cylindrical workpieces.
• Equipped with high performance PU-coated metal roller to provide stable running.
• DC infinitely variable speed control system.
• Switch for cw/ ccw rotation, foot switch for start/ stop functions.
• High frequency protection.
• Timer relay provide automatic welding requests

Scope of Delivery

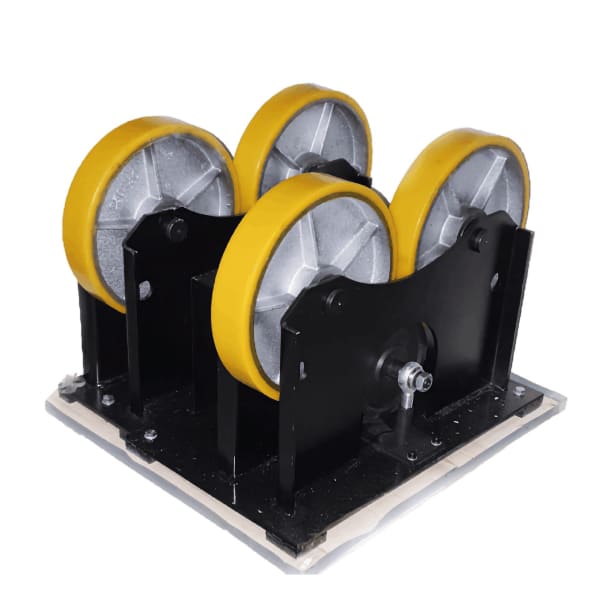

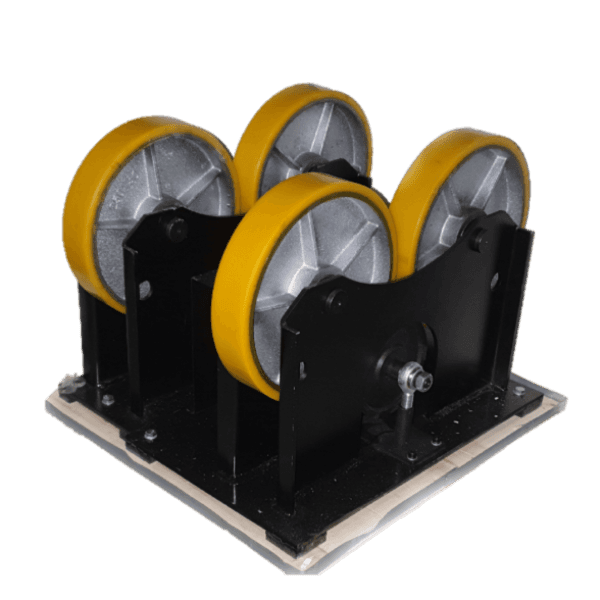

• 1 Power and 1 Idler turning rolls
• 1 Electric control system
• Foot Switch

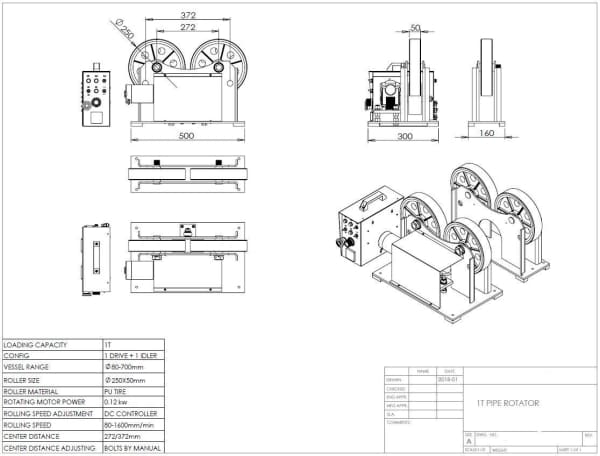

Main Technical Parameters

 Model

 WMXTR-1000

 Max Load (kg)

 1000kg

 Pipe Diameter Range(mm)

 Ø80-Ø700mm

 Rotation Speed (mm/min)

 80-1600mm/min

 Rotation Power (w)

 DC 120w

 Roller Size (mm)

 Ø250x50mm

 Roller Material

 Steel coated with PU

 Machine Size (mm)

660x320x390mm (Drive)
500x160x390mm (Idler)
600x600x650mm (Complete in box)

Shipping Dimensions  600x600x650mm (Complete in box)
Weight: 45kg
