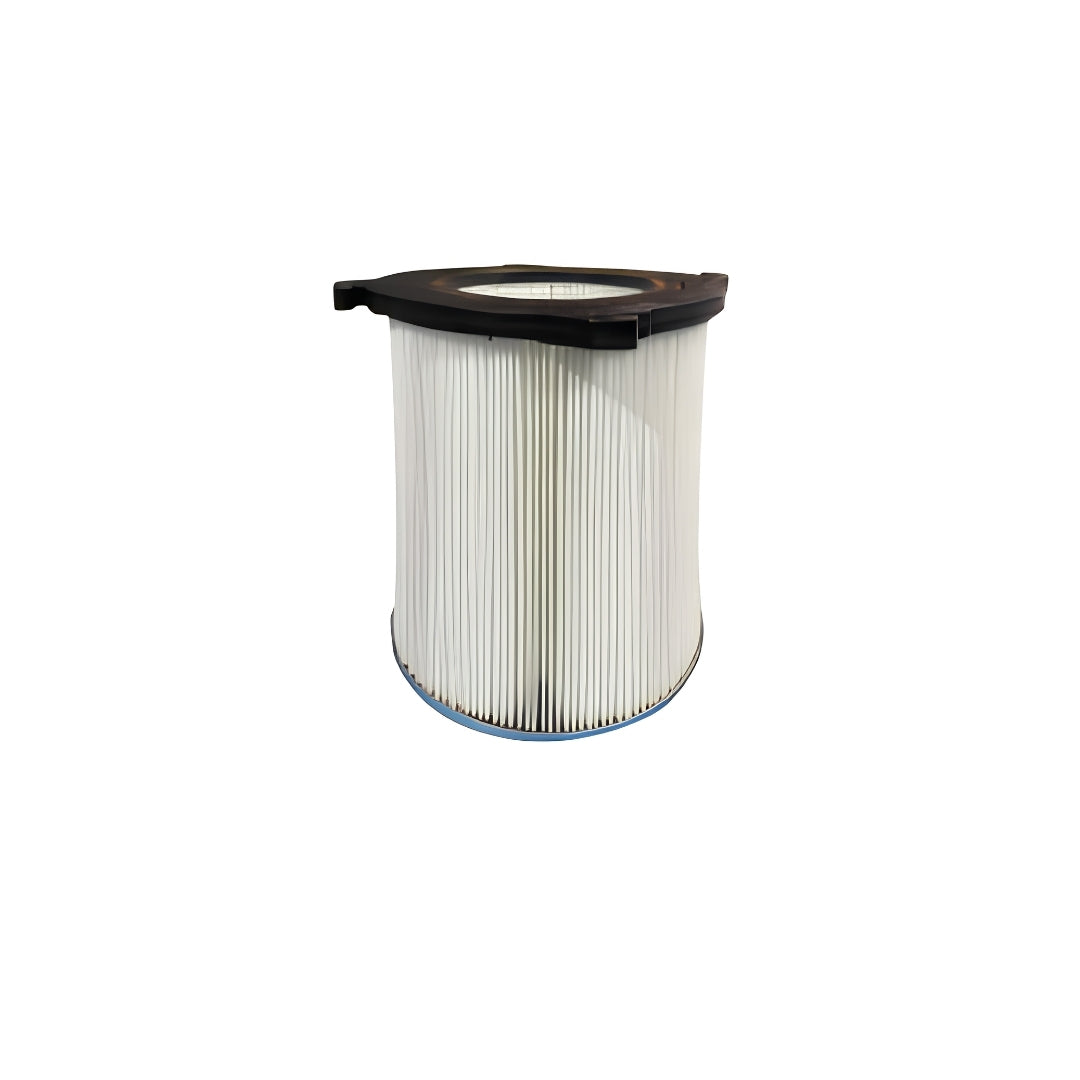

Weldmax FumeVault Replacement Filter Cartridge – M-Class
Keep your FumeVault fume extractor running at full filtration efficiency with this genuine M-Class replacement cartridge — the same horizontal filter used across the entire FumeVault EC range, from single-arm units through to dual-arm and W3 configurations. Rated to filter toxic industrial dust at better than 99.9% efficiency, it's the part that does the real work behind your FumeVault's clean-air performance.
Why it matters
A filter cartridge is a consumable, not a set-and-forget component — as it loads up with welding fume particulate, filtration efficiency and airflow both drop, even if the fan and motor are running perfectly. Keeping a genuine M-Class cartridge in your FumeVault matters for maintaining real-world capture performance as Australia's welding fume exposure limits tighten under the WES-to-WEL transition, effective 1 December 2026 — the certified 99.9%+ efficiency only holds if the filter itself is in good condition.
Key features
- M-Class certified — tested to IFA-BGIA standards, filtering toxic industrial dust at greater than 99.9% efficiency
- Large filtration surface area — 7–8 m² per single cartridge for strong dust-holding capacity between services

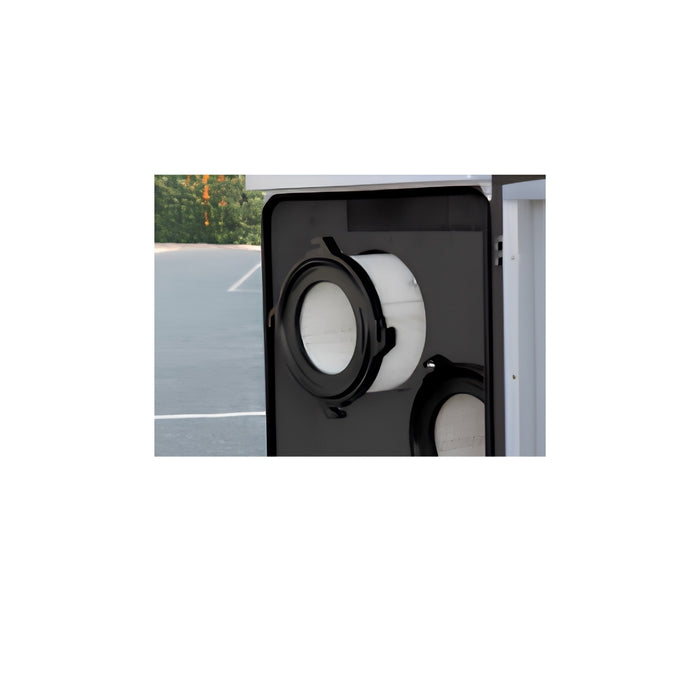

- Genuine FumeVault fit — the same horizontal cartridge used across the whole FumeVault EC range
Technical specifications
| Spec | Detail |
|---|---|
| Model | Ø325/4PS1-H400-M |
| Diameter | 325mm |
| Height | 400mm |
| Filtration surface area | 7–8 m² per cartridge |
| Classification | M-Class (IFA-BGIA certified) |
| Filtration efficiency | >99.9% |
Equipment compatibility
This cartridge fits the entire Weldmax FumeVault EC range:
| Model | Configuration |
|---|---|
| FumeVault EC Single (0.55/0.75kW) | 1 horizontal cartridge |
| FumeVault EC Dual / Dual W3 (1.1/2.2kW) | 2 horizontal cartridges |
Note: the FumeVault Single Arm and FumeVault Dual Arm units use 2 x horizontal cartridges each (24 m² total filtration area).
FAQ
Which media option should I choose?
Standard M-PES suits general welding fume and dust. If you're working with stickier or finer residues, the PTFE membrane option holds up better. For high-alloy steel welding (stainless, chrome, nickel alloys), the Membrane-H variant is purpose-built for that fume type.
How many cartridges does my FumeVault need?
The single-arm FumeVault EC uses 1 cartridge; the dual-arm and W3 models use 2 cartridges running simultaneously — check your unit's configuration before ordering.
How do I know when it's time to replace the filter?
A drop in suction at the hood, more frequent automatic cleaning cycles, or a rising pressure differential (if your unit has a gauge) are all signs the cartridge is nearing the end of its service life.
Is this compatible with older FumeVault units?
This cartridge is used across the current FumeVault EC range — if you have an older unit, confirm the model with QWS to make sure the fitment matches.
