WELDMAX FUME EXTRACT W/DUAL 160MM X 3M ARM XHD

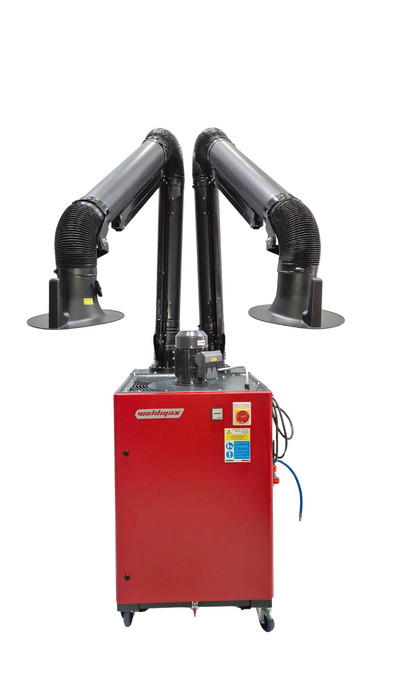

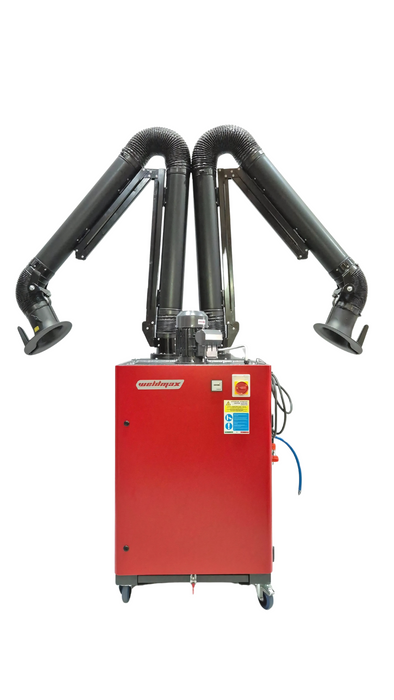

FumeVault Dual Arm Fume Extractor – High-Capacity Fume Control for Demanding Workspaces

Designed for larger work areas and multi-operator setups, the Weldmax FumeVault Dual Arm fume extractor combines 2.2 kW of motor power with dual 3m extraction arms to deliver up to 2,280 m³/h of airflow. Its advanced filtration system captures welding fumes, aerosols, and fine dust with >99.9% efficiency, ensuring a safer and cleaner working environment.

Key Features:

• Dual-arm reach for simultaneous multi-point extraction
• Automatic pulse-jet cleaning extends filter life
• Low operating noise (~74.5 dB) for improved workshop comfort
• Heavy-duty filtration with M-Class horizontal cartridges
• Plug & play setup – no installation required

Technical Specifications:

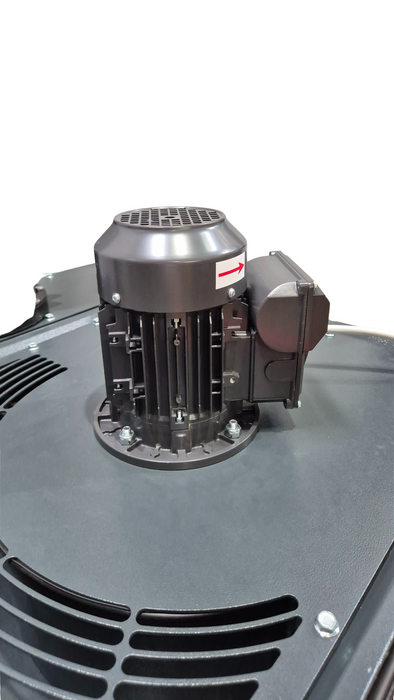

• Power: 2.2 kW
• Nominal Air Flow: 2,280 m³/h

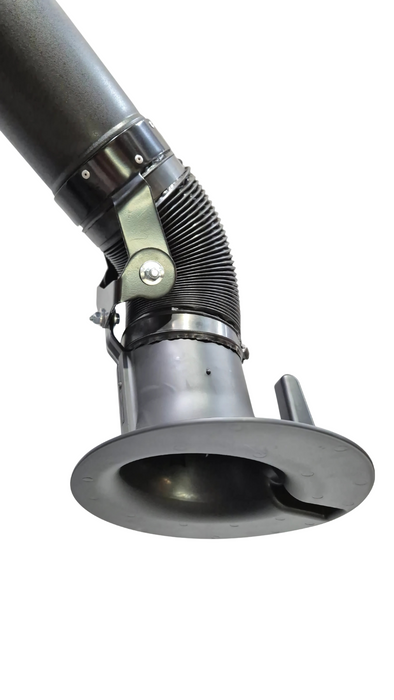

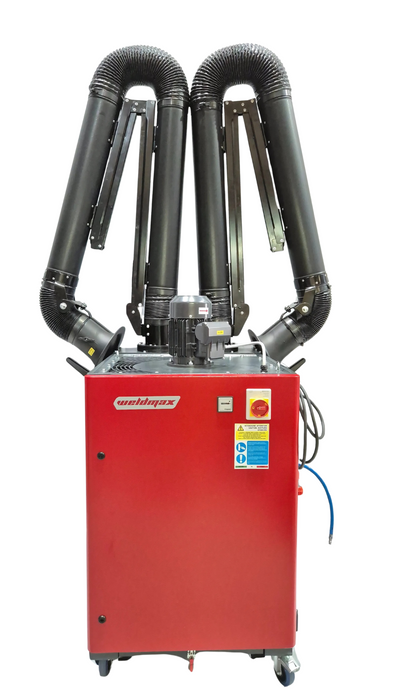

• Arm Configuration: 2 x Ø160mm, 3m self-supporting arms

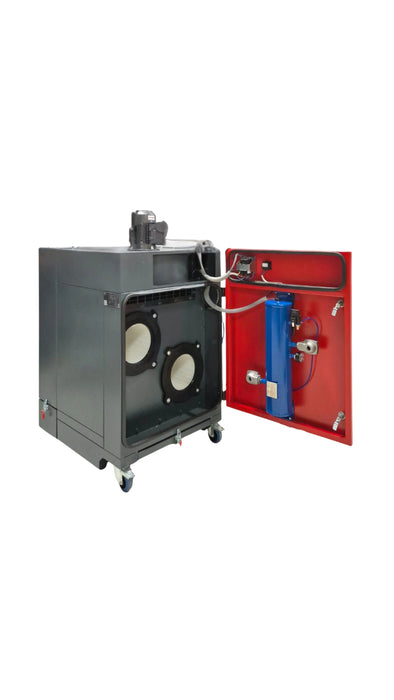

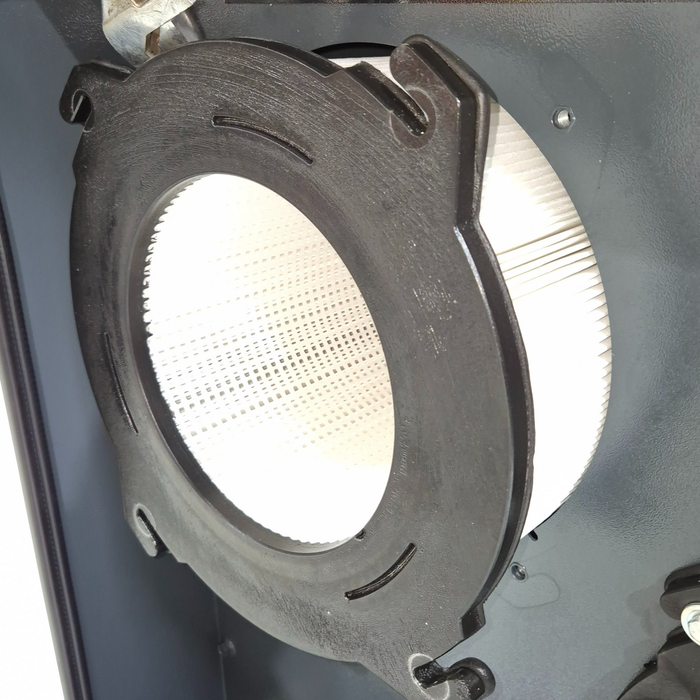

• Filter Type: 2 x Horizontal M-Class PES cartridge filters
• Filtering Surface Area: 24 m²
• Cleaning System: Automatic compressed air pulse-jet

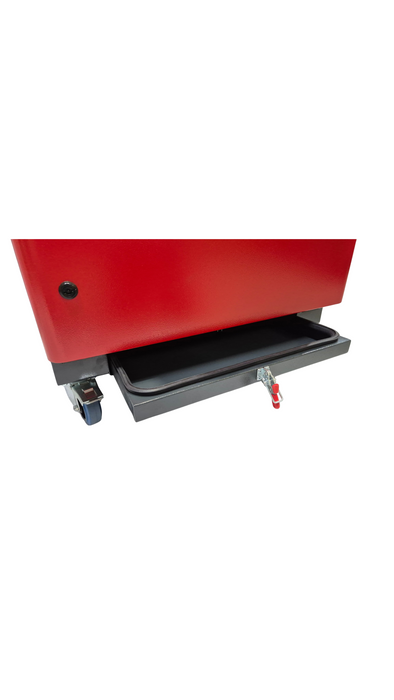

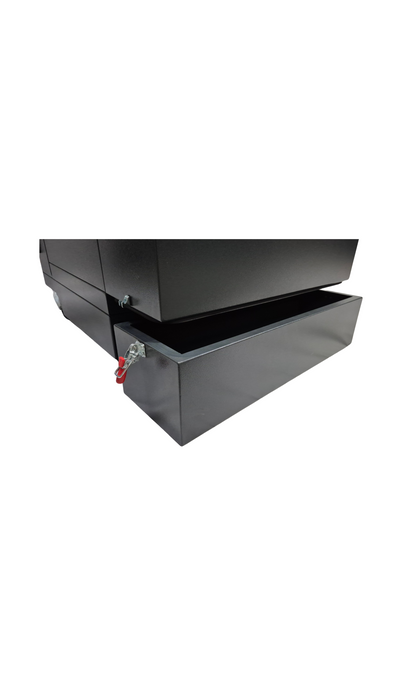

• Bin Capacity: 12L (rear) + 28L (front)
• Noise Level: 74.5 dB (70 dB with soundproofing)
• Power Supply: 230V / 50Hz, single phase
• Weight: 160 kg
• Warranty: 2 years

Why Choose the Weldmax FumeVault EC:

• Plug & Play Setup – Ready to use out of the box, no installation needed
• Dual Extraction Arms – Ideal for multi-operator or large workspace coverage
• Low Energy Consumption – High airflow with minimal power usage
• Automatic Filter Cleaning – Maintains performance and reduces downtime
• Certified Filtration – M-Class filters meet strict occupational safety standards
• Quiet Performance – Operates at low noise levels for a more comfortable environment
