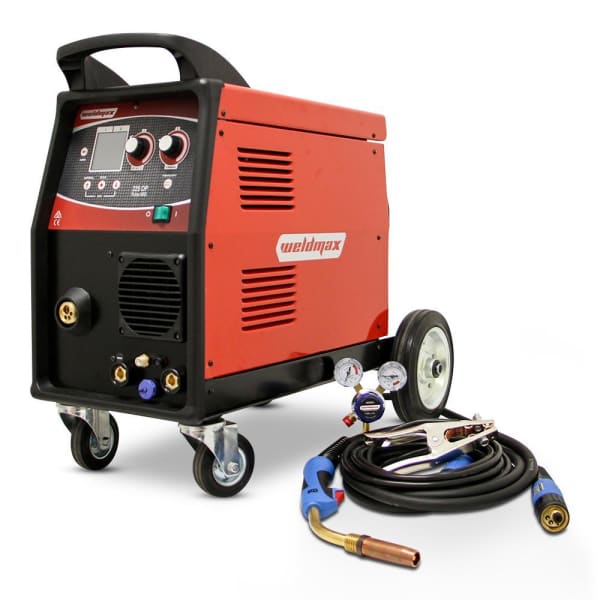

WELDMAX 225 DOUBLE PULSE MIG/TIG/MMA INVERTER

by WELDMAX
$5,630.00 Each
SKU WEMSP225DP

QUICK FEATURES:

MIG Double Pulse / Single Pulsed / MIG Synergic / MIG Manual Welding mode
Perfect 240V welding machine for Aluminium, Stainless steel and Mild Steels
TIG DC standard & TIG DC Pulsed arc for Steel & Stainless
Digital display for amps, volts, material thickness, wire feed speed adjustment, etc
Job / memory mode
2T / 4T & Spot trigger functions
Integrated 4 wheel drive wire feeder


COMPLETE MACHINE PACKAGE READY TO WELD INCLUDING:

  • Weldmax 225DP Pulse Inverter MIG power source
  • 3 metre Mig Torch with Graphite liner for Aluminium/Stainless OR 4 metre Mig Torch setup for Steel
  • Earth Lead 4 Metre with Spring clamp
  • Argon Regulator with 1.5mtr gas Hose
  • Drive Rollers to suit Aluminium/Steel/Stainless
  • 15A/240V phase plug fitted
  • Owners manual
  • 3 year warranty
  • Lifetime product support


Duty Cycle Rating

  • 200 Amps @ 40%
  • 140 Amps @ 100%


Dimensions & Weight

  • Weighs only 42kg
  • 770 x 450 x 660mm


The Weldmax 225DP Double pulse Mig is a Microprocessor-controlled multi-process welding inverter suitable for MIG/MAG (manual, synergic or pulsed or Double pulse MIG welding), TIG-DC (continuous or pulsed) and MMA welding. The large 3.3" display shows all the welding parameters, and makes settings easy and intuitive.

In synergic MIG/MAG welding, the microprocessor ensures easy and quick setting of the programs thus always guaranteeing optimal arc stability and highest weld quality. MIG-MAG features: DC controlled or pulsed welding using pre-set synergic curves, Program storage of your own custom weld parameters, 2T/4T & spot trigger function, pre-gas & post-gas time regulation, electronic reactance, soft start, burn-back time, hot start, slope down, crater fill.

In pulsed mode welding it is unbeatable and guarantees excellent quality results with is ability to regulate the heat input to ensure a great result even on the thinnest of materials including Aluminium & stainless.

TIG DC features: Lift arc DC controlled or pulsed welding, 2T/4T, Amperage Adjustment, frequency and Peak current levels in TIG pulsed welding, final current, up/down slope regulation.

MMA / Stick features: Anti-stick capability, adjustable hot start and arc force. Its simplicity and versatility make it ideal for use in body shops or maintenance jobs. VRD (Voltage Reduction Device) in MMA / Electrode Welding modes.

The Weldmax 225DP model is mobile & compact and accepts 200mm & 300mm wire reels.

To request a free onsite demonstration on this product, please contact us now.
