Description

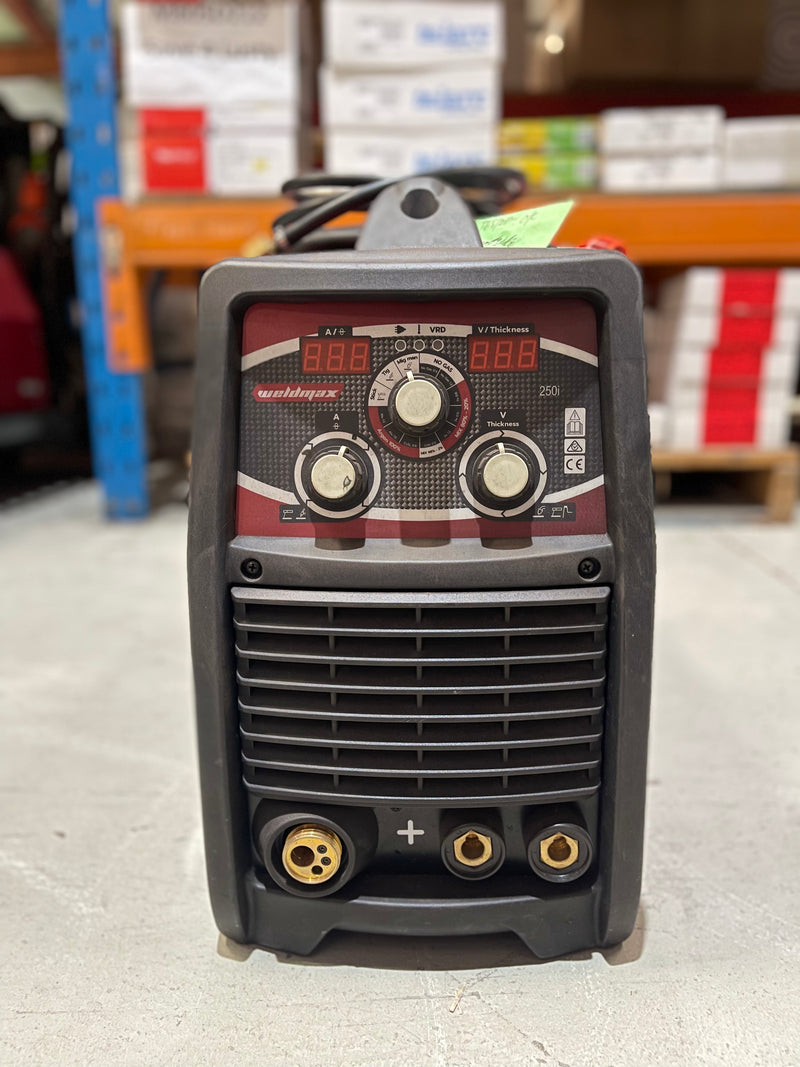

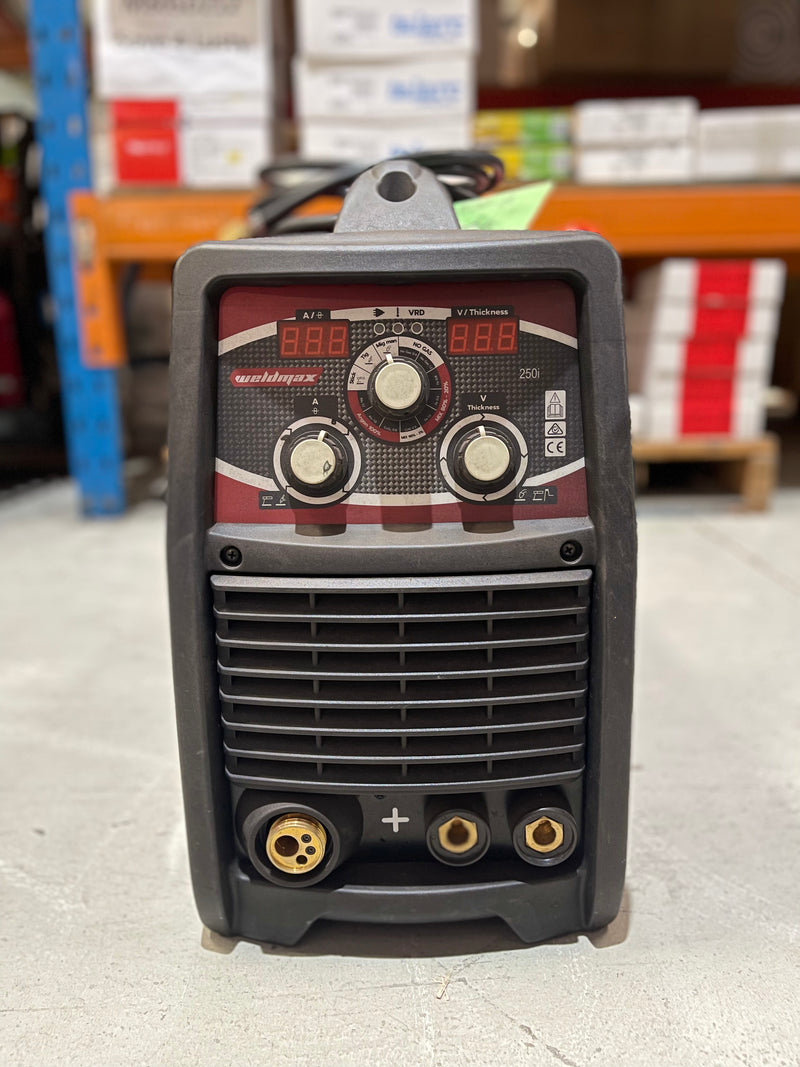

The Weldmax 250i Synergic MIG-TIG-STICK welding system is a lightweight single phase high performing multi-process welder. A microprocessor controlled inverter welder suitable DC controlled MIG/MAG, TIG and MMA (stick) which guarantees excellent stability of the welding arc with minimal spatter. In MMA mode the microprocessor controls the Hot Start, Arc Force & anti-sticking functions. In TIG mode it controls the Lift Arc function and in the MIG mode it allows either manual or fully synergic welding. Regulation of the slope-up motor with automatic soft start wire feed control of the arc makes it ideal for use in auto repair shops, light fabrication workshops and onsite maintenance work.

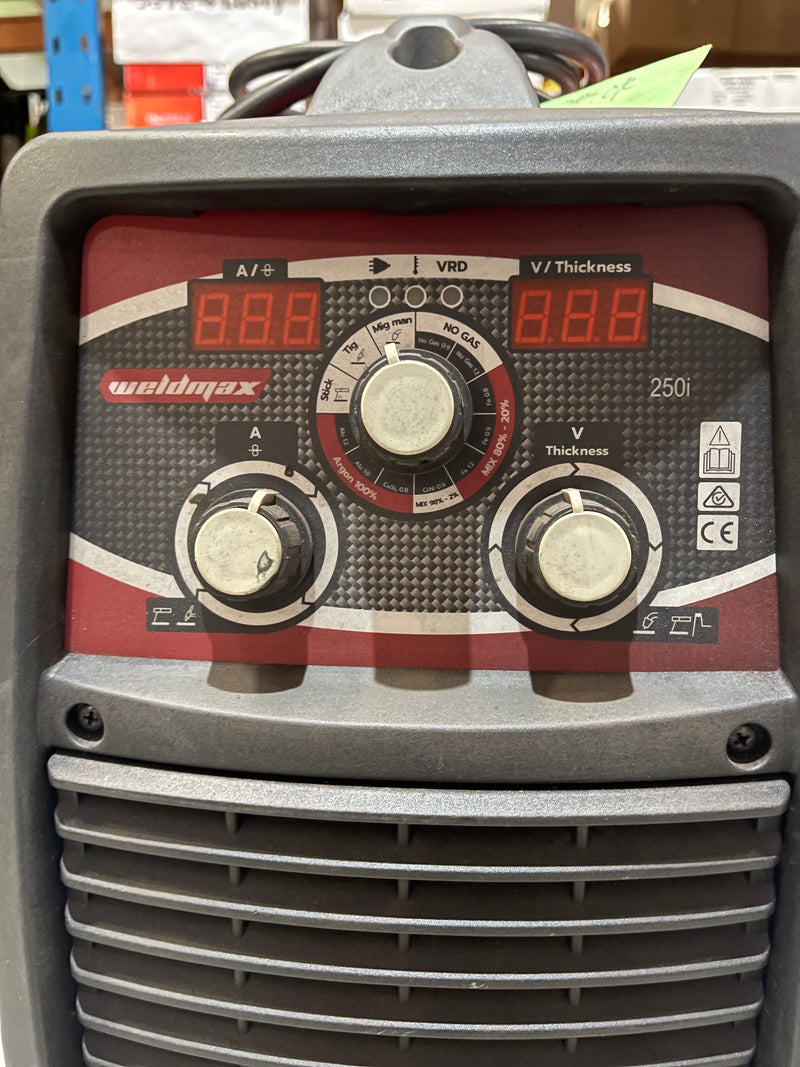

All the functions can easily be selected from the front panel and digital display shows the welding voltage and current parameters. The Weldmax 250i accepts 200mm & 300mm diameter spools.

Technical Specifications

• Input power: 240V/ 1Ph/ 50-60Hz
• Duty cycle: 7.5Kva

Amperage (min/max)

• MIG: 10 – 250A
• TIG: 5 – 250A
• MMA: 5 – 200A
• Wire Dia Range: 0.8mm – 1.2mm
• Electrode Range: 1.6mm – 4.0mm
• Dimensions (mm): 600 x 225 x 480
• Weight: 28kg
