UNIMIG T3 WATER COOLED TIG TORCH PKG X 8M (T3W-3KHL-8M)

by Unimig
Original price $569.40 - Original price $569.40
Original price
$569.40 / each
$569.40
$569.40 - $569.40
Current price $569.40
Excludes GST - GST calculated at checkout

Volume Discounts for ABN / Account holders -

Part No: UMT3F8M

Availability: 1 In stock, ready to be shipped!

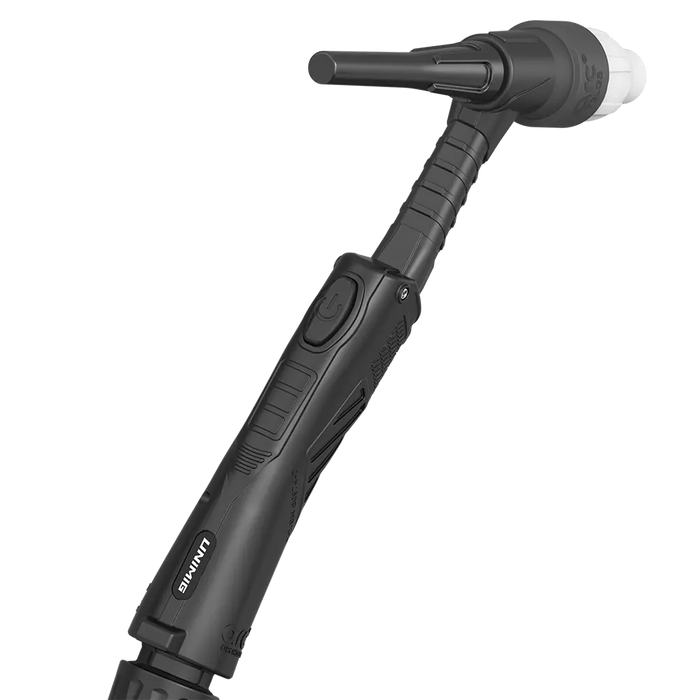

ARC TORCHOLOGY T3W WATER-COOLED TIG TORCH


The ARC TORCHOLOGY® T3W Water-Cooled TIG Torch has been designed for maximum performance and longer consumable lifecycles. Thanks to exclusive torch technologies, this torch boasts a better power to weight ratio compared to standard UNIMIG torches – more power in a lightweight body!



1.0-4.0mm - ELECTRODE SIZE COMPATIBILITY.
400A - MAXIMUM OUTPUT.
BETTER POWER-TO-WEIGHT RATIO - MORE POWER FROM A LIGHTER TORCH.
UP TO 20X LONGER CONSUMABLE LIFE - SUPERIOR LIFE & BETTER PERFORMANCE.

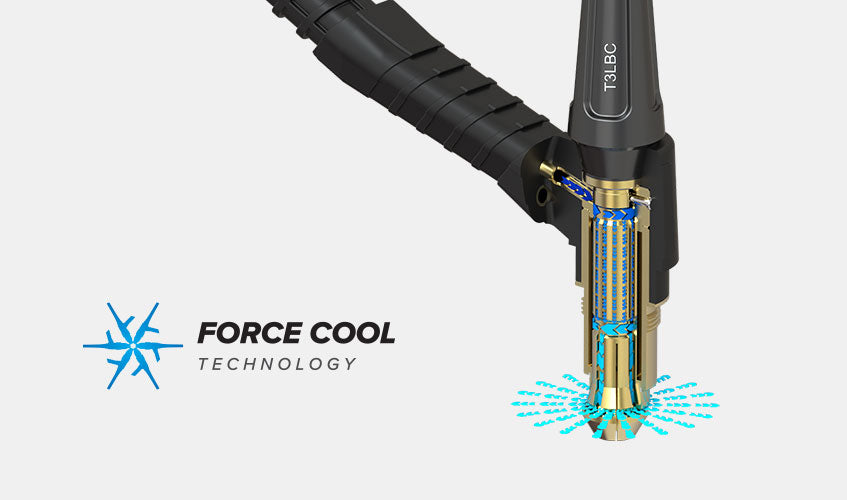

FORCE COOL™ TECHNOLOGY
A highly effective series of passages and wells force cool the collet, maximising conductivity and extending consumable life.



HEAT ZONE ISOLATION™ TECHNOLOGY
Transferred heat from the ceramic cup is isolated by a unique external barrier resulting in cooler running torches with increased power to weight performance ratios.

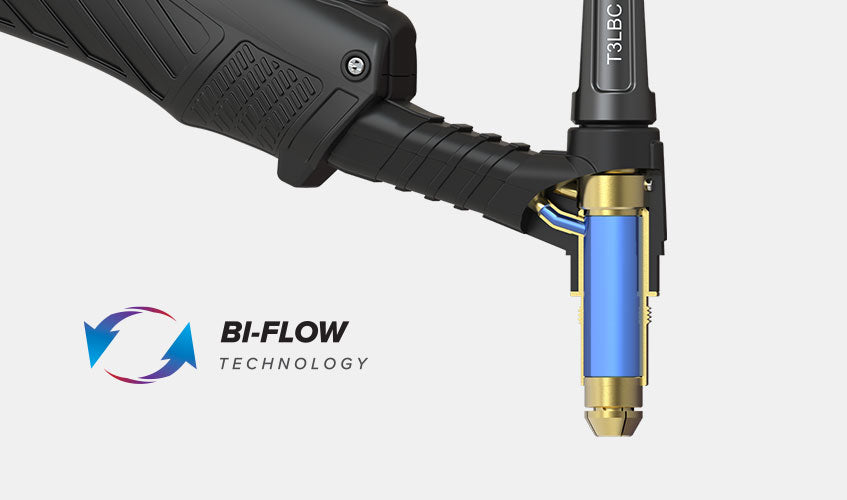

BI-FLOW™ TECHNOLOGY
High capacity cooling chambers remove excessive heat at source, allowing greater performance from a smaller body.

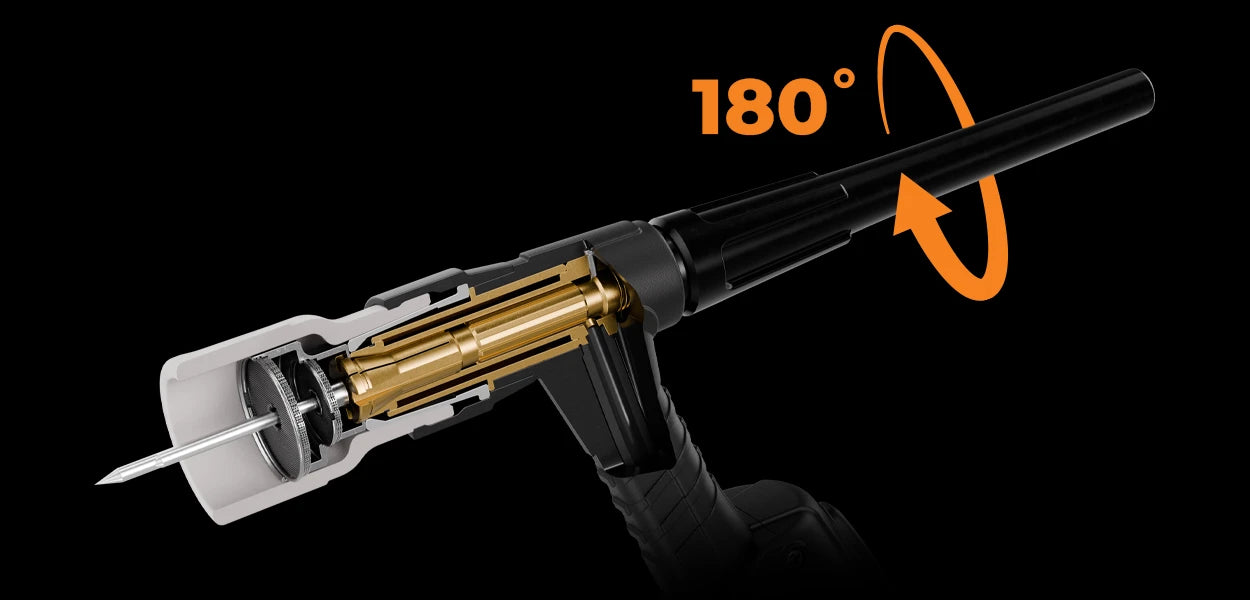

TUNGSTEN RELEASE SYSTEM™
Trouble free extension of the electrode with a 180° twist of the back cap. There is no need to remove any other wear parts to extend the electrode.


SPECIFICATIONS

TIG TORCH SPECIFICATIONS WATER COOLER SPECS
COOLING METHOD
Water Cooled
MINIMUM WATER FLOW
1.5L/min
DUTY CYCLE - DC
100% @ 400A
MINIMUM WATER INLET PRESSURE
3.0 Bar
DUTY CYCLE - AC
100% @ 280A
MAXIMUM WATER INLET PRESSURE
5.0 Bar
LENGTHS (m)
4 / 8
MAXIMUM WATER INLET TEMPERATURE
50°C
DINSE SIZE
35/50
MINIMUM COOLING POWER
900W
ELECTRODE SIZE
1.0-4.0mm

STANDARD
EN60974-7
