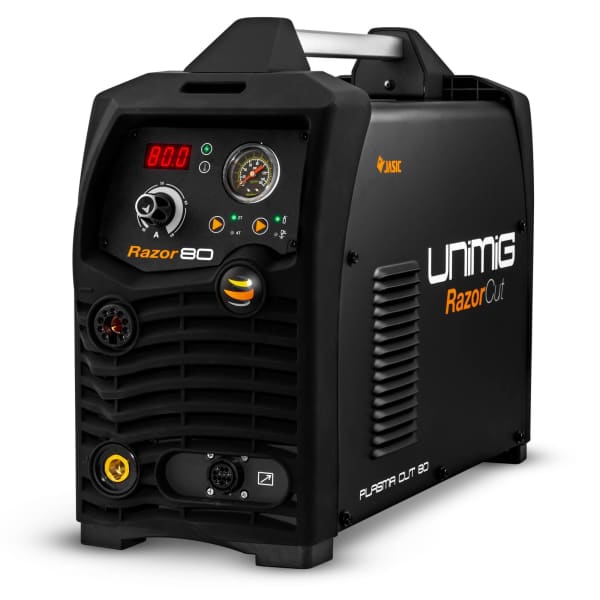

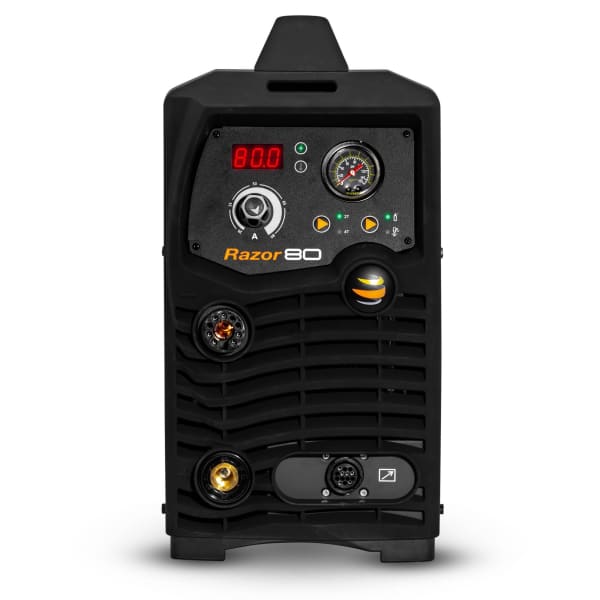

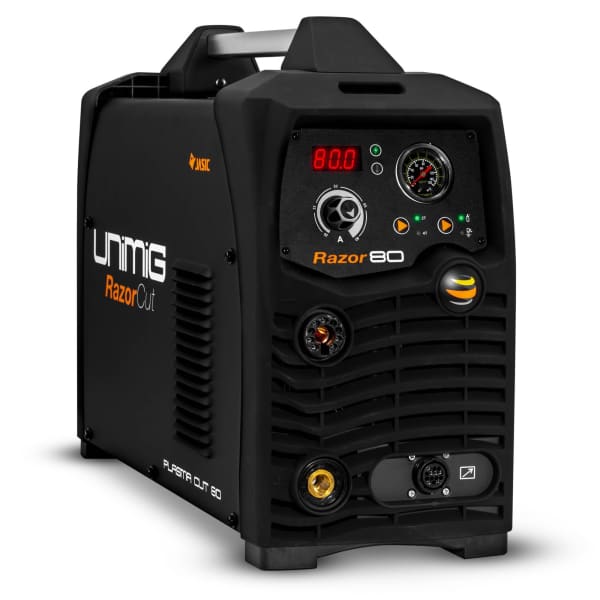

UNIMIG RAZORCUT 80 PLASMA CUTTER

by Unimig
Excludes GST - GST calculated at checkout
PN KUPJRRW80

The RAZOR™ CUT 80 is designed for maximum performance, offering the highest level of cutting performance from UNIMIG’s range. Capable of clean cutting 30mm and severing 35mm, this machine is for the professional needing maximum power from a portable machine.

  • THREE PHASE - 415V POWER
  • 30mm CLEAN CUT - MILD STEEL.
  • PILOT ARC START - START CUT WITHOUT DIRECT CONTACT.
  • 2T/4T TORCH CONTROLS - MORE COMFORT WHEN CUTTING.

Pilot Arc Start

  • Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.

Machine specifications

  • PRIMARY INPUT VOLTAGE - 415V Three Phase
  • SUPPLY PLUG - No plug supplied (20 AMP Recommended)
  • RATED INPUT POWER (kVA) - 15.0
  • NO LOAD VOLTAGE (V) - 340
  • PROTECTION CLASS - IP21S
  • INSULATION CLASS - F
  • MINIMUM GENERATOR (kVA) - 15.0
  • DINSE CONNECTOR - 35/50
  • STANDARD - AS/NZ60974-1
  • WARRANTY (Years) - 3

Size & weight

  • DIMENSIONS (mm) - 560x220x415mm
  • WEIGHT (kg) - 16kg

Machine features

  • THERMAL OVERLOAD PROTECTION - Over Temperature Warning

Plasma cut specifications

  • PLASMA CUT CURRENT RANGE - 20-80A
  • PLASMA CUT DUTY CYCLE @ 40°C - 40% @ 80A
  • MILD STEEL CUT THICKNESS - 30mm
  • MILD STEEL SEVERANCE THICKNESS - 35mm
  • ALUMINIUM CUT THICKNESS - 16mm
  • ALUMINIUM SEVERANCE THICKNESS - 20mm
  • STAINLESS STEEL CUT THICKNESS - 16mm
  • STAINLESS STEEL SEVERANCE THICKNESS - 20mm
  • AIR FLOW DRAW OFF (L/min) - 189
  • AIR FLOW PRESSURE (Bar) - 5.17 (75 psi)
  • PLASMA ARC START - Pilot Arc

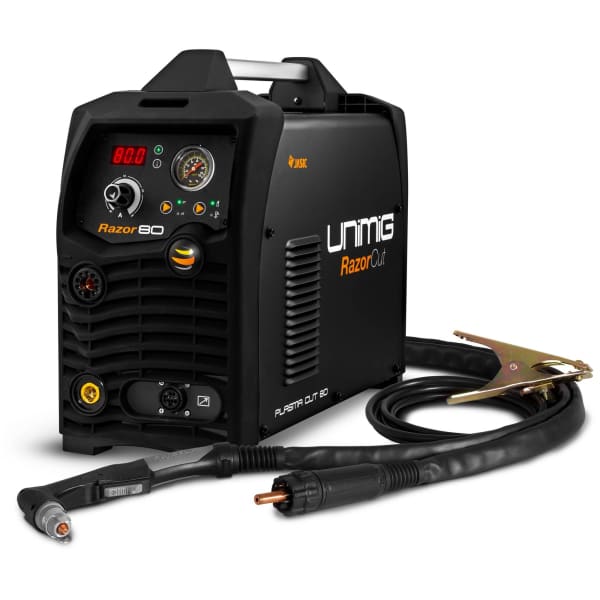

Package includes:

  • RAZOR™ CUT 80 Plasma Cutter
  • 6m SC80 Plasma Torch
  • 4m 300 AMP Earth Clamp
  • Air Regulator
  • Operating Manual
