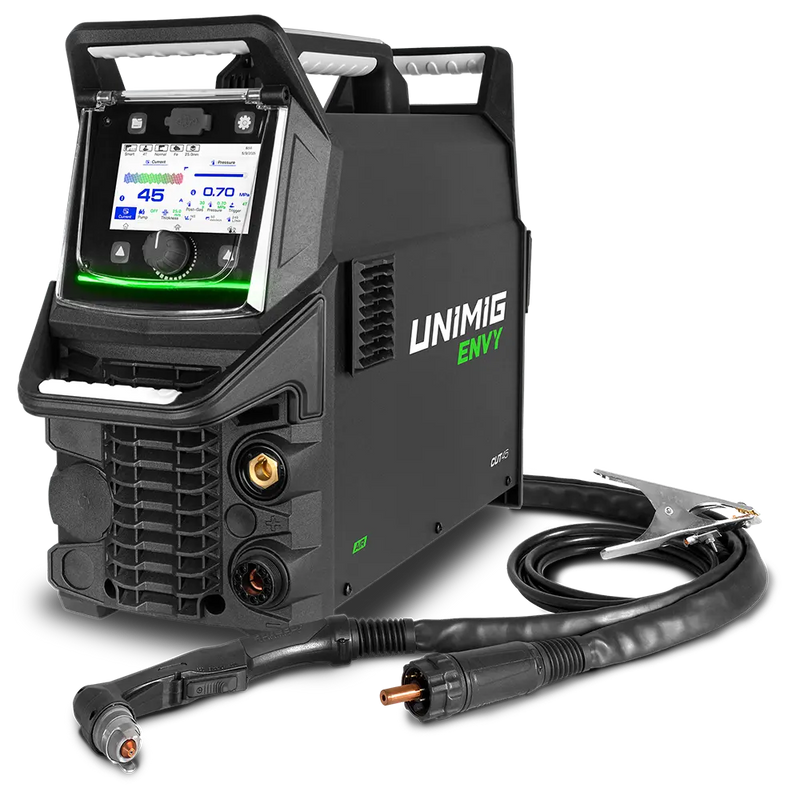

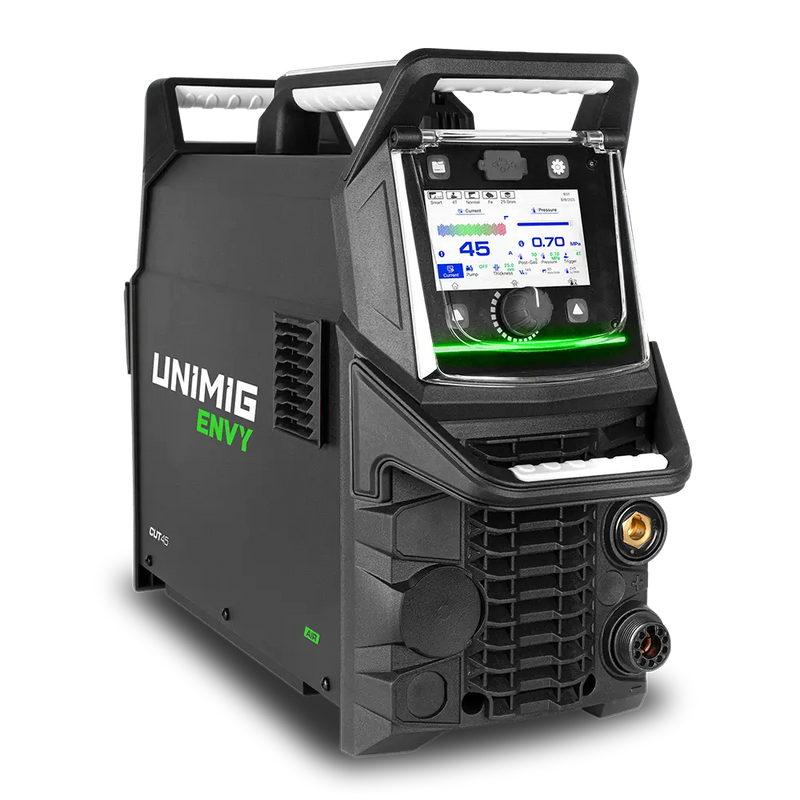

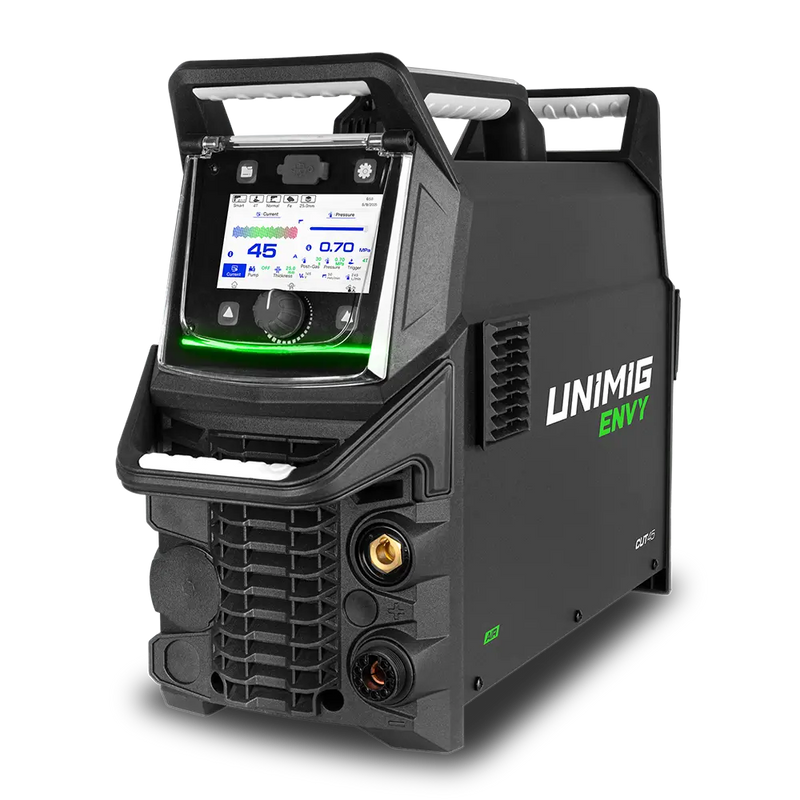

UNIMIG ENVY CUT 45 AIR Plasma Cutter with Built-In Compressor
The UNIMIG ENVY CUT 45 AIR is a 45A, 240V single-phase plasma cutter with its own air compressor built in. You don’t need a separate compressor, so you can cut anywhere you have a 15A power point or a 10 kVA generator. It makes 20 mm clean cuts and 25 mm severance cuts in mild steel. It also cuts stainless, aluminium and copper, and has modes for solid plate, perforated material and gouging. It has a CNC interface for table cutting and is covered by UNIMIG’s 5-year warranty. It suits fabricators, maintenance crews, farm workshops and mobile trades who need one portable machine for site work and the shop floor.
One Machine, No Compressor Required
Most plasma cutters need a clean, dry, regulated air supply from a separate compressor. That means extra gear to carry to site, a hose run and an air filter to maintain. The ENVY CUT 45 AIR has its own compressor and a digital air pressure regulator built in. The machine sets the correct pressure automatically for whichever cutting mode you choose. You plug it in, select a program and start cutting.
Key Features
Built-in air compressor: There is no external compressor, air hose or regulator to set up. It’s suited to site work, service vehicles and workshops without a compressed air supply.
Smart-Set programs: You choose the cutting type, material and thickness, and the machine sets itself up. This makes it quick to start for experienced operators and simple for apprentices and students.

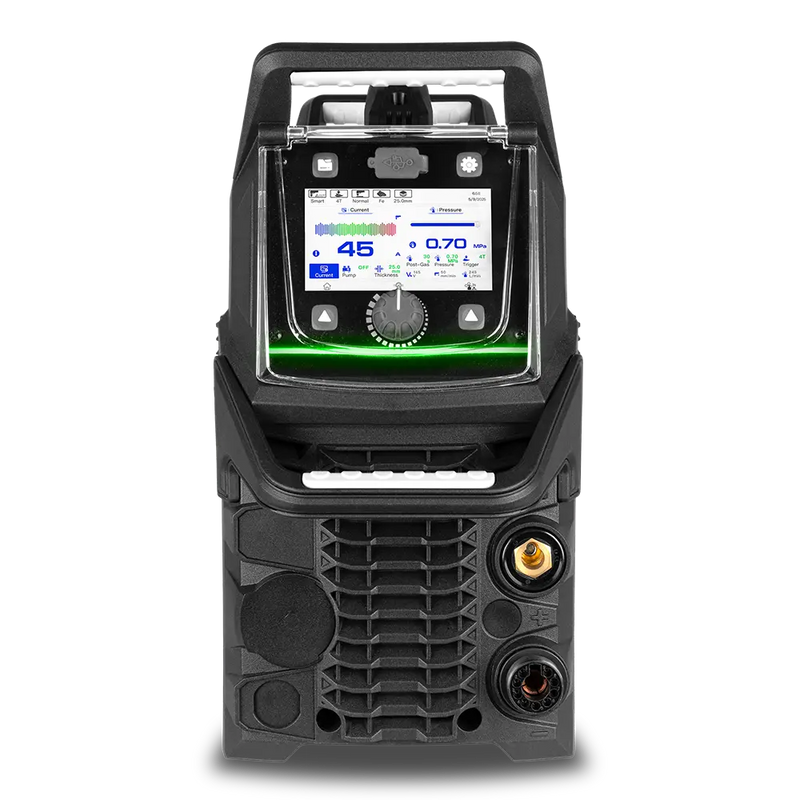

5" colour LCD touchscreen: A clear interface that makes settings easy to read and change.
Three cutting modes: Solid for plate. Perforated for cutting continuously through mesh, grating and expanded metal without losing the arc. Gouging for removing welds, defects or excess material without grinding.
Pilot arc start: The arc strikes without touching the workpiece. This lets you start on painted, rusty or greasy surfaces and on uneven or curved work, and it reduces wear on consumables.
CNC connectivity: You can connect a CNC torch and run the machine on a cutting table for repeatable, automated cuts.
Job memory: You can save up to 100 custom cut settings and recall them later.
2T/4T trigger modes: In 2T you hold the trigger to cut. In 4T you press once to start and once to stop, which is more comfortable on long cuts.
Air test function: Lets you check the air pressure before you cut.
Power Factor Correction (PFC): Makes better use of the power supply, compensates for voltage fluctuations and runs reliably on a generator.
Smart Fan: The cooling fan runs only when it’s needed. This reduces noise and power use, and draws less dust into the machine.
Technical Specifications
| Specification | Detail |
|---|---|
| Part number | U11604 |
| Input power | 240V single phase |
| Supply plug | 15A |
| Ieff / Imax | 14.5 A / 26.5 A |
| Minimum generator | 10 kVA |
| Cutting current range | 20–45 A |
| Duty cycle @ 40 °C | 30% @ 45 A · 60% @ 32 A · 100% @ 25 A |
| Mild steel | 20 mm clean cut · 25 mm severance |
| Stainless steel | 18 mm clean cut |
| Aluminium | 14 mm clean cut |
| Copper | 8 mm clean cut |
| Arc start | Pilot arc |
| Cutting modes | Solid, Perforated, Gouging |
| Air pressure | 4.5–6.0 bar (0.45–0.6 MPa), regulated automatically |
| Air flow | 190–245 L/min |
| No-load voltage | 380 V |
| Protection class | IP21S |
| Insulation class | H |
| Dinse connector | 35/50 |
| Standard | AS 60974.1 |
| Dimensions | 665 × 220 × 425 mm |
| Weight | 23.1 kg |
| Warranty | 5 years |
What’s Included
- ENVY CUT 45 AIR plasma cutter
- 6 m SC80 plasma torch
- 4 m 300A earth clamp and lead
- Operating manual
Frequently Asked Questions
Does the UNIMIG ENVY CUT 45 AIR need an air compressor?
No. It has a built-in air compressor and a digital pressure regulator, so it cuts without any external air supply.
How thick can the ENVY CUT 45 AIR cut?
It makes clean cuts up to 20 mm in mild steel, 18 mm in stainless steel, 14 mm in aluminium and 8 mm in copper. Its severance capacity in mild steel is 25 mm.
Can I run the ENVY CUT 45 AIR from a 15A power point?
Yes. It runs on 240V single-phase power and comes with a 15A plug.
Can it run off a generator?
Yes. UNIMIG recommends a generator of at least 10 kVA.
Can I use the ENVY CUT 45 AIR on a CNC plasma table?
Yes. It has a CNC interface, so you can connect a CNC torch and use it for automated table cutting.
Can it cut mesh and expanded metal?
Yes. Perforated cut mode keeps the arc going across the gaps in mesh, grating and expanded metal.
What’s the warranty on the ENVY CUT 45 AIR?
UNIMIG covers it with a 5-year warranty.
