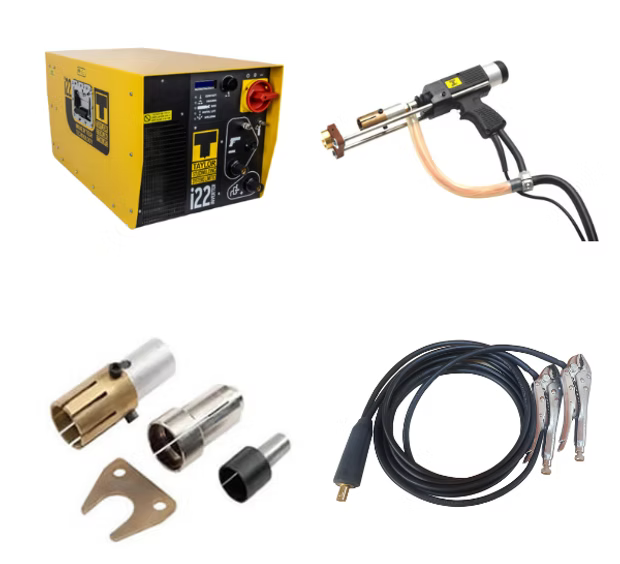

TAYLOR DRAWN ARC STUD WELDER I22 INVERTER W/ DA6 TORCH

Heavy-Duty Three-Phase Stud Welding System for Industrial, Construction & Shipbuilding Applications

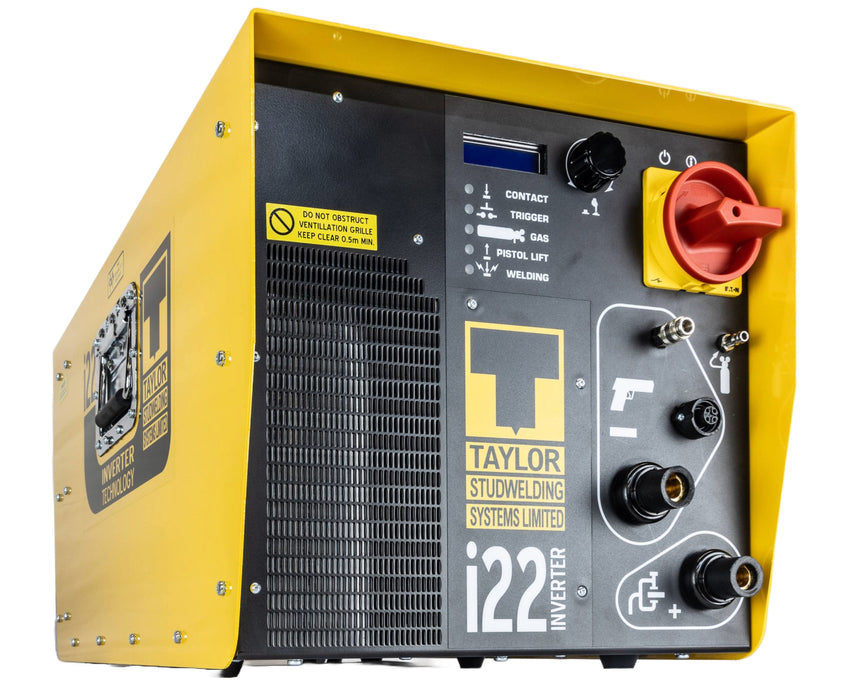

The Taylor Drawn Arc Stud Welder I22 Inverter, paired with the high-speed DA6 hand tool, is a professional-grade drawn arc stud welding system engineered for demanding industrial environments. As the flagship model in the Taylor Studwelding range, the I22 controller is built to weld studs up to 22mm in diameter, making it the ideal choice for shipbuilding, structural steel fabrication, construction, and other heavy-fastening applications that call for speed, strength, and repeatable weld quality.

Key Features

• Three-Phase 400V Inverter Technology – Delivers efficient, stable power management with stepless adjustment of welding current and time for precise control over every weld
• Microcomputer-Controlled Operation – Constant current regulation ensures consistent, high-quality welds in both standard Drawn Arc and Short Cycle (SC) welding modes
• Welds Up to 22mm Studs – Handles larger-diameter mild steel and stainless steel studs than the I12 and I16 models, suited to heavy structural work
• Compact, All-in-One Cabinet – Lightweight and portable for its power class, housing all components in a single transportable unit
• Integrated Fan Cooling & IP23 Protection – Built for long-term durability and reliable performance even in harsh site conditions
• CE and UKCA Marked – Manufactured to meet all required international quality and safety standards
• DA6 High-Lift Hand Tool – Purpose-built for speed rather than stud diameter, the DA6 gun is designed to weld at a rate exceeding one stud every 6 seconds, making it a top choice for high-volume production runs and large-scale projects

Why Choose the I22 with DA6 Torch?

For fabricators and contractors who need to move fast without sacrificing weld integrity, the I22/DA6 combination offers one of the quickest stud welding cycles available in the Taylor Drawn Arc range. The system's robust, simple construction provides an economical and reliable method for fixing mild steel and stainless steel studs, while stepless current and time adjustment lets operators fine-tune settings for different stud sizes and base materials.

Typical Applications

• Shipbuilding and marine fabrication
• Structural steel and construction projects
• Heavy fabrication and manufacturing
• High-volume production welding environments

Specifications Summary
