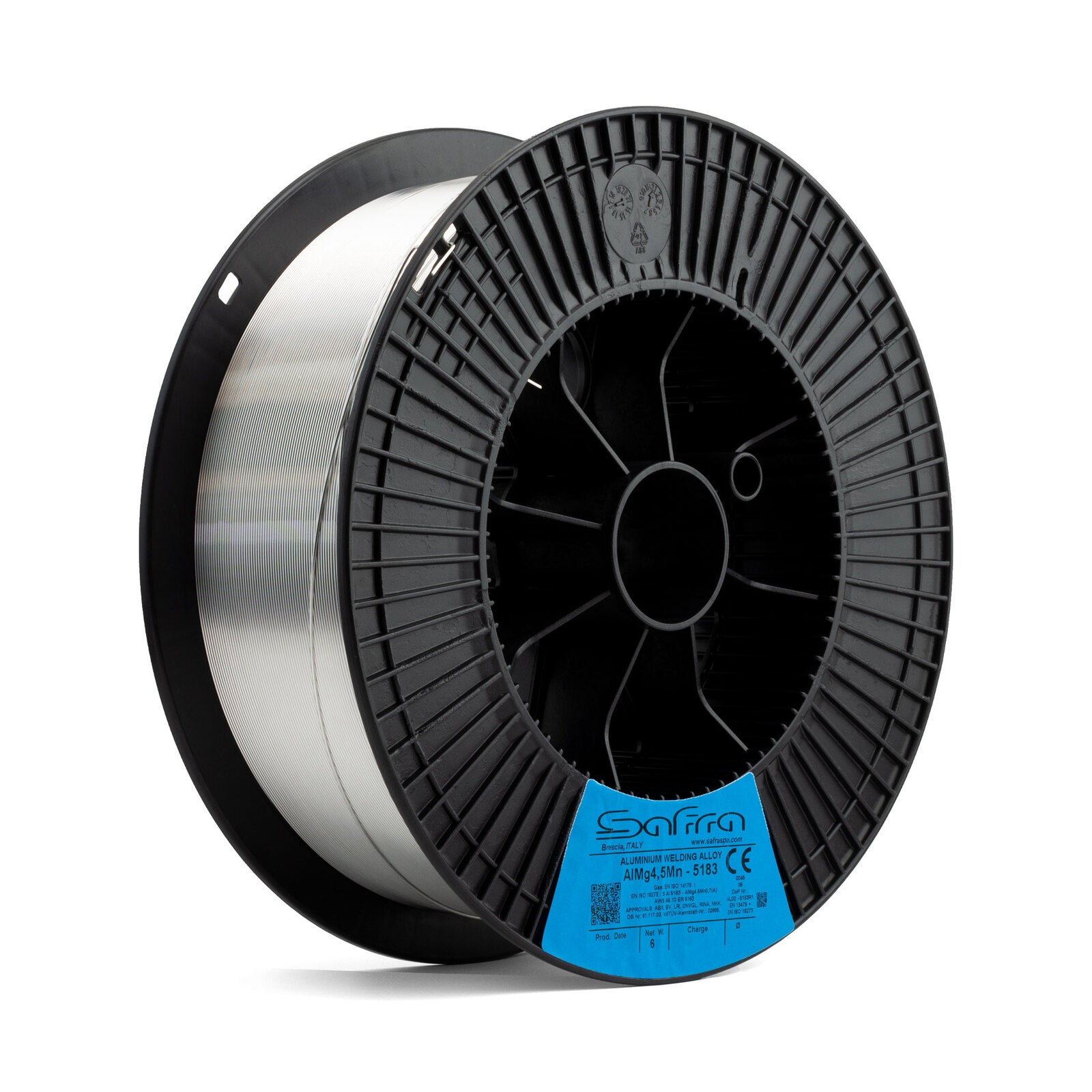

MIG WIRE SAFRA 5183 ALUMINIUM 1.2MM 6KG ROLL

by Safra
$155.58 /6kg Roll
$25.93 / kg
Excludes GST - GST calculated at checkout
PN M518312
6kg Roll

Precision layer wound aluminium wire alloyed with Mg, Mn and Cr. Double shaved for superb feedability. The 5183 can achieve higher tensile strength in the as welded condition of alloy 5083, which the filler alloy 5356 will generally fail.

Typical Applications:

Recommended for welding 5083 type material in the annealed condition, particularly for low temperature applications where good ductility and toughness are required such as cryogenic plants and boat building.

Applications:

  • Low Temperature
  • 5083 Type Material

Processes:

  • MIG-MAG
  • GMAW

Classification:

  • AS/NZS ISO 18273 - S AI 5183
  • AWS A5.10: ER5183

Specifications:

Typical All Weld Metal Chemical Analysis

  • Si: 0.4
  • Fe: 0.4
  • Cu: 0.1
  • Mn: 0.5 - 1.0
  • Mg: 4.3 - 5.2
  • Cr: 0.05 - 0.25
  • Zn: 0.25
  • Ti: 0.15
  • Ai: Bal

Typical All Weld Metal Mechanical Analysis

  • Gas Type: Ar
  • Yield Strength: 110 MPa
  • Tensile Strength: 240 MPa
  • Elongation: 17%
