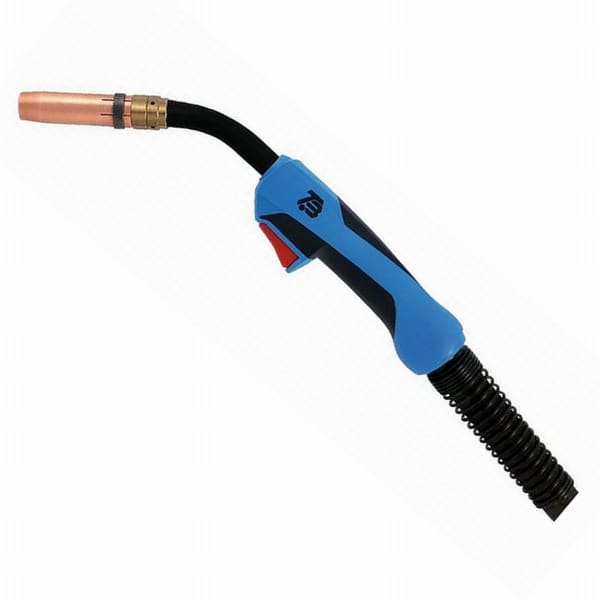

MIG TORCH TBI 511-CC EXPERT EURO 4MTR

by Tbi
$539.15 / each
Excludes GST - GST calculated at checkout
PN 175P421040

Technical Data


Rating at 100% duty cycle (10 min. cycle)
- Mixed gas: 500 A
- CO2: 550 A

Cooling method: 2-circuit water cooling
Wire diameter: 1.2 - 1.6 mm
Gas flow: 16 l/min
Technical specification according to IEC: 60974-7
Connection: Euro-Central connector

Other connectors are available upon request.

Torch rating will be reduced when using pulsed-arc power sources.



Download Specifications & Technical Data here
