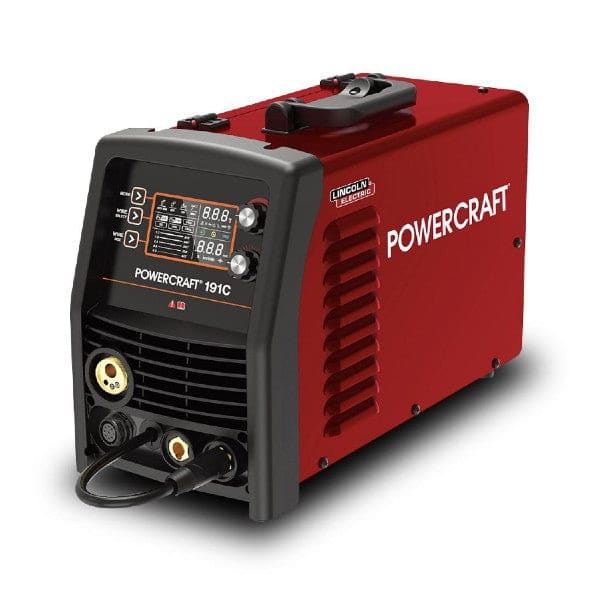

LINCOLN POWERCRAFT 191C MIG

Lincoln K69072-1 - 240V Powercraft 191C 3 in 1 Welder MIG

POWERCRAFT® 191C is single phase 190 amp 3-in-1 multi-purpose.
Light portable and easy to use it is capable of MIG welding (both gas-shielded and gasless flux-cored welding), stick and TIG welding. A perfect companion for DIY projects, general maintenance and field work.

Includes:

• 1 x Powercraft 191C power source
• 1 x MIG gun
• 1 x Electrode lead
• 1 x Work return lead
• 1 x Gas hose
• 1 x Regulator / Flowmeter
• 1 x Input lead (3m) with 10 amp plug
• 1 x Drive roll 0.6 / 0.8 (solid)
• 1 x Drive roll 0.9 / 1.2 (cored)
• 1 x Instruction manual

Features:

• 190 amp output with a 10 amp input supply – can be used anywhere a 10 amp powesupply is available.
• Easy to use LCD display screen.
• Includes EZYSET™ functionality – one dial synergic control for amps and volts.
• Fast and easy cable connection makes getting started quick, safe and simple.
• Solid and flux-cored wires capable – 0.6-1.2mm wire diameter.
• Stick electrodes – up to 4.0mm in diameter.
• TIG lift-arc welding, program control, easy arc start, anti-sticking torch.
• Spool gun capable – ideal for aluminium welding with the addition of a Lincoln
• spool gun.
• Comes ‘Ready To weld’ including power source, MIG gun, electrode lead, work return
• lead, drive rolls, gas hose and regulator/flowmeter.
• 3 year warranty

Machine Specifications:

• Type: MIG, Synergic, Flux-cored, Lift TIG DC, Stick
• Supply voltage: 240V Single Phase
• Supply plug: 10Amp
• Rated output: 15-190A
• Protection class: IP21S
• Insulation class: F
• Power factor: 0.99
• Minimum generator (kVA): 10kVA
• Australian standard: AS60974.1, AS60974.10, AS/NZS CISPR11, IEC6097-1 and IEC60974-10
• Warranty (years): 3
• Dimensions in mm HxWxD: 340 x 220 x 470
• Weight (kg): 13.75
• Wire drive: Geared – Aluminium drive plate
• VRD: Yes
• Spool gun connection: Yes
• Burnback adjustment: Yes
• Wire inch: Yes
• Thermal overload protection: Over temperature warning

MIG Specifications:

• MIG welding current range: 30-190A
• MIG duty cycle @ 40°c: 180A/23.0V@23%
• MIG wire spool size: up to 5kg or 200mm
• MIG wire size range: 0.6-1.2mm

TIG Specifications:

• TIG function type: Lift TIG
• TIG welding current range: 15-180A
• TIG duty cycle @ 40°c: 180A/17.2V@25%

Stick Specifications:

• Stick welding current range: 15-180A
• Stick duty cycle @ 40°c: 180A/27.2V@18%
• Electrode size: up to 4.0mm
