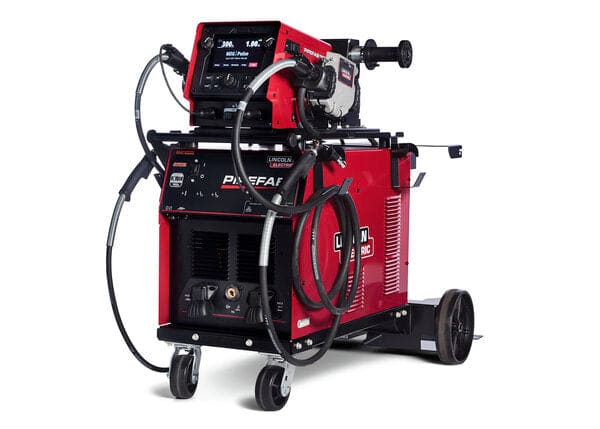

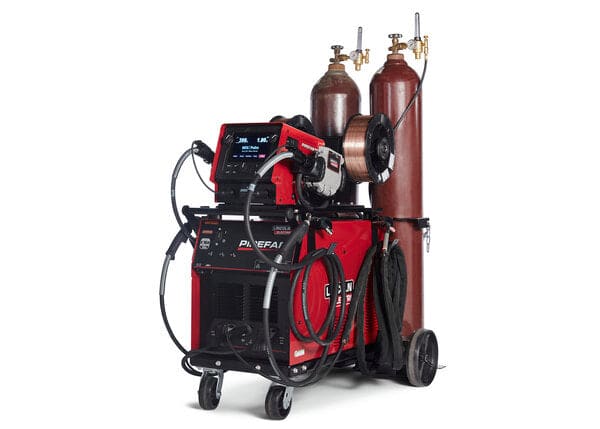

LINCOLN PIPEFAB® MULTI-PROCESS WELDING SYSTEM

The PIPEFAB™ welding system was developed for one purpose – as an ideal setup for pipe & vessel fabrication. From machine design to arc performance, no detail was overlooked in delivering a complete, customer driven system that lets your focus on what matters most – making high-quality root-to-cap welds, faster & easier. The Ready-to-Run™ design keeps all process outputs electrically isolated and ready to weld when needed – meaning you’ll never have to swap cables to change processes again.

Features:
Reliable and consistent arc performance no matter what input voltage is used
Smart Pulse™ monitors your machine settings and automatically tailors the pulse to deliver the ideal arc for your pipe welding needs.
Weld modes optimized specifically for pipe and vessel fabrication.
Up to 55% Increase in root pass productivity
Consistent arc performance with no sense lead, even in long or coiled cables
Remote diagnostics & configuration
Memory buttons for preferred settings
Single point of use – all controls in one location on the feeder
Free & easy software updates.
CheckPoint® Production Monitoring

Specifications:
Input Power: 200-208/220-230/380-415/460/575
Output Range: 5-400A
Rated Output:
MMA: 55 – 400A / 36V @ 100%
GMAW: 40 – 400A / 26V @ 100%
FCAW: 40 – 400A / 26V @ 100%
GTAW: 5 – 400A / 26 V @ 100%
Input Current: 53/46/26/24/19
Dimensions(mm): 561H x 445W x 884H
Weight(kg): 94
