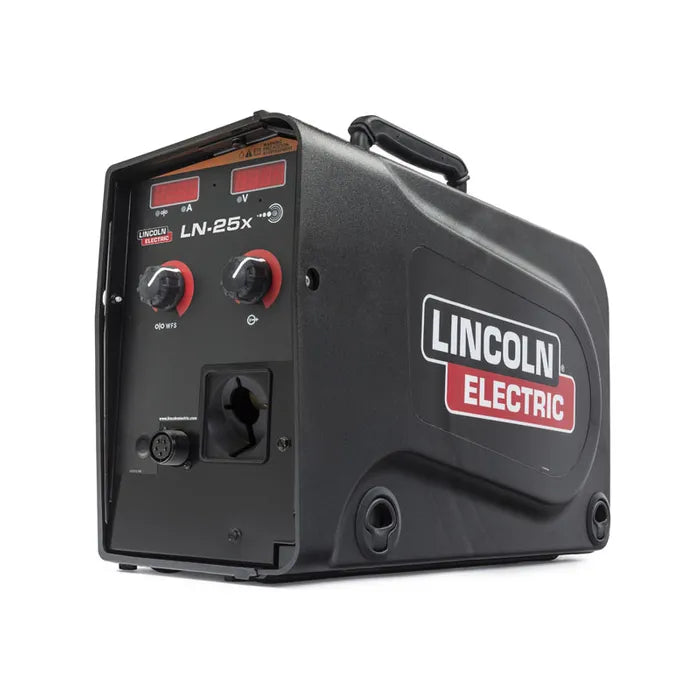

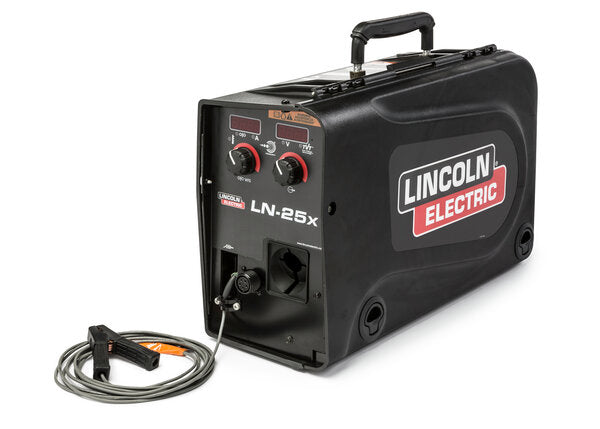

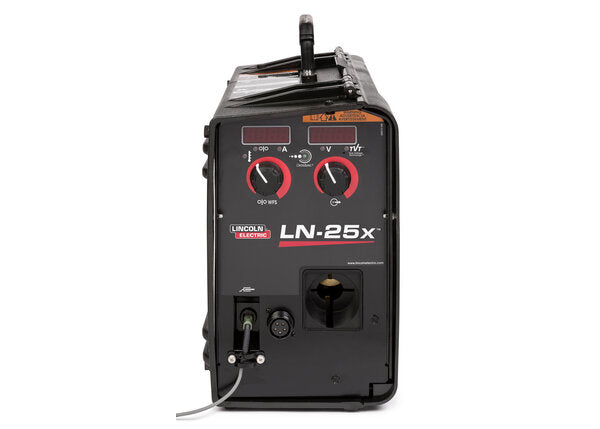

LINCOLN LN-25X (WITH BONUS MAGNUM GUN)
Lincoln LN-25X Wire Feeder + Magnum 400 MIG Gun Package
Take your welding setup to the next level with the Lincoln LN-25X wire feeder, bundled with a rugged Magnum 400 MIG gun. This portable, high-performance package is ideal for field, fabrication, and site welders who demand precision, convenience, and reliability.
Key Features & Benefits
-
CrossLinc® Technology — No Control Cable Needed
When paired with a CrossLinc-capable power source, voltage control is managed at the feeder itself, eliminating the need for bulky control cables between the feeder and the power source. -
True Voltage Technology™ (TVT) — Automatic Voltage Drop Compensation
TVT senses voltage drop over long welding cables and automatically adjusts the power source to maintain the set voltage at the arc — giving you consistent welds even on large setups. -
High Capacity & Versatility
- Supports solid wires up to ~1.6 mm (0.063 in) and cored up to ~2.0 mm (5/64 in)
- Wire feed speed range: ~50 to 700 ipm (1.3 to 17.7 m/min)
- Accepts 12″ (300 mm) spools (up to 44 lb)
-
Robust & Portable Design
Encased in a flame-resistant, replaceable shell, with sealed electronics to withstand tough environments. lincolnelectric.com+2ch-delivery.lincolnelectric.com+2
Lightweight enough to carry on site while providing heavy-duty performance. -
Magnum 400 MIG Gun Included
The package includes the Magnum 400 MIG gun and necessary drive rolls (e.g. 0.040–0.045 cored wire) weldersupply.com+2WeldingMart.com+2. The gun is rated for around 400 A (at ~60% duty) with good cable reach. WeldingMart.com+2lincolnelectric.com+2 -
Fast Setup & Reduced Clutter
Fewer external control cables means easier setup, less mess on the job site, and fewer things to trip on. lincolnelectric.com+2weldersupply.com+2
Typical Specifications
| Parameter | Value / Range |
|---|---|
| Input Voltage | 15 – 110 V DC (for control logic) |
| Duty Cycle | Feeder supports 450 A @ 60% (for wire feed) |
| Dimensions (H × W × L) | 381 × 221 × 589 mm |
| Weight | ~16 kg (net) |
| Wire Feed Speed | ~50 – 700 ipm (1.3 – 17.7 m/min) |
| Wire Sizes | Solid: 0.6 – 1.6 mm, Cored: 0.8 – 2.0 mm |
| Max Spool | 12″ (300 mm) / ~44 lb |
Why Choose the LN-25X + Magnum 400 Package?
- Precision Control on the Feeder — Thanks to CrossLinc and TVT, you can fine-tune voltage right where you weld.
- Cleaner Job Sites, Less Setup Hassle — No long control cables means less clutter and faster deployment.
- Designed for Field Conditions — Rugged, sealed, efficient — made for real work sites, not just clean shops.
- All-in-One Package — No need to source a gun separately — the Magnum 400 comes with the unit.
- Scalable Workflow — Works well with standard MIG / FCAW machines, especially those compatible with CrossLinc setups.
