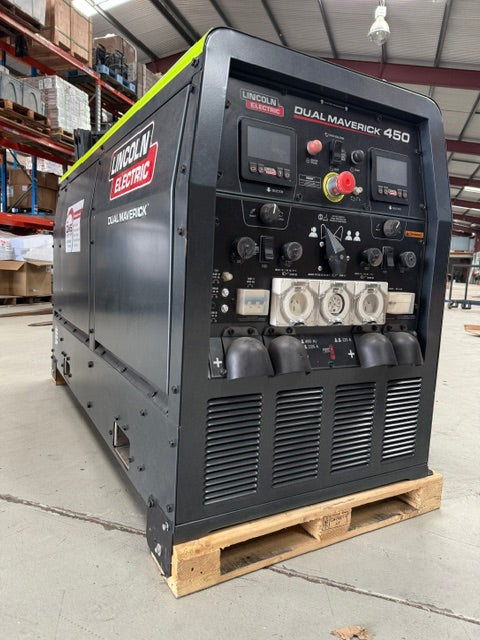

LINCOLN DUAL MAVERICK™ 450 DIESEL WELDER GENERATOR DEMO UNIT
Lincoln Electric Dual Maverick® 450 (Perkins®) — DEMO UNIT | Serviced, 12-Month Warranty, Ready to Ship

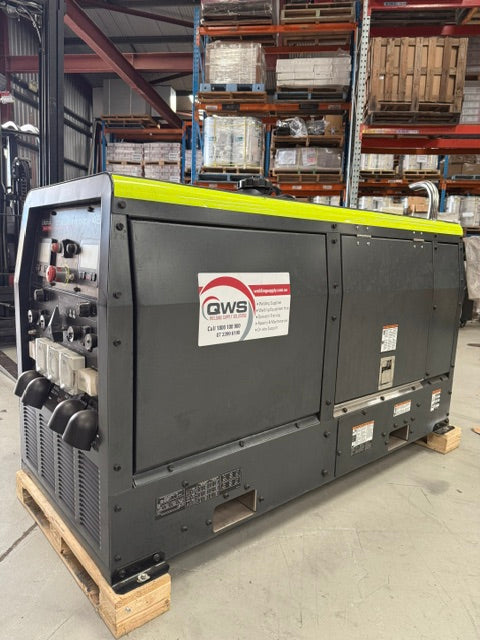

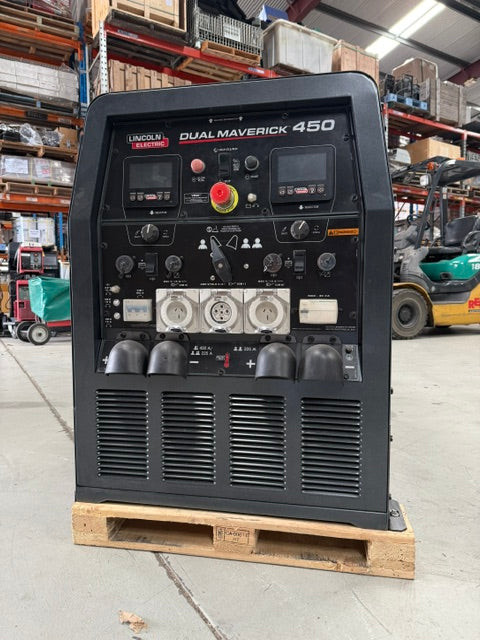

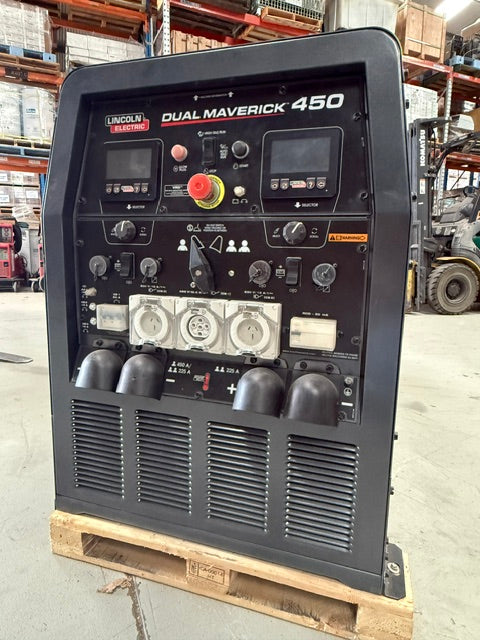

This Lincoln Dual Maverick 450 is an ex-demonstration unit available now from QWS. It has been recently serviced, comes with a 12-month warranty and all original documentation, and is ready to ship immediately. It is the same dual-operator diesel welder/generator as a new unit. Two operators can each weld at up to 225A, or one operator can weld and gouge at up to 450A at 100% duty cycle. It is powered by a 26.4 hp Perkins® 403D-11 water-cooled diesel engine.
Why buy this demo unit
- Recently serviced
- 12-month warranty
- All original documentation included, including manuals and paperwork
- Ready to ship immediately, with no factory lead time
- Demo pricing on a machine that has only been used for demonstrations
Two welders, one machine to maintain
Running two operators from one engine means one machine to transport, fuel, service and tag. For contractors and hire fleets, one Dual Maverick replaces two single-operator machines on site. It is quieter than earlier models, running at 69 dBA at low idle (measured at 7 m), and variable RPM with auto start/stop reduces fuel use when nobody is welding.
Key features
- Dual or single operator, selected at the machine
- Stick, downhill pipe, TIG, MIG, flux-cored and carbon arc gouging up to 9.5 mm
- VRD for both operators to AS 1674.2 Category C

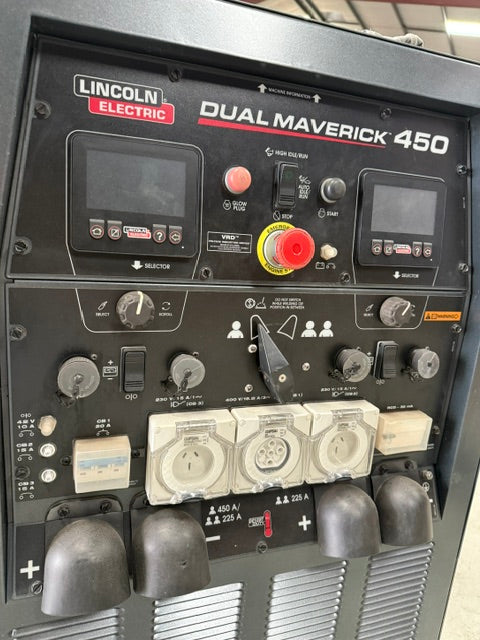

- Two 4.3" weatherproof LCD screens with built-in maintenance reminders
- Lincoln's patented Chopper Technology® for a smooth, stable arc
- Up to 13 kW three-phase / 10 kW single-phase continuous auxiliary power
Typical applications
Pipeline · structural steel and construction · mining and mobile maintenance · marine and shipyard · hire fleets · gouging and back-gouging.
Technical Specifications
| Specification | Detail |
|---|---|
| Part number | K4381-2 |
| Processes | Stick (SMAW), Downhill Pipe, Touch Start TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW-S / FCAW-G), Arc Gouging (CAC-A) |
| Operators | 1 or 2 (selectable) |
| Max rating @ 40°C | Single: 450A / 26V / 100% · Dual: 225A / 26V / 100% |
| IEC rating @ 40°C | Single: 350A / 34V / 100% · Dual: 210A / 28.4V / 100% |
| Single mode output | Stick 50–450A · Pipe 50–450A · TIG 20–255A · CV 13–40V · Gouge 100–450A |
| Dual mode output | Stick 30–255A · Pipe 30–225A · TIG 20–250A · CV 13–40V |
| Open circuit voltage | 90V peak @ 3000 RPM |
| Max gouging carbon | 9.5 mm (3/8") |
| Wire feeder supply | 42VAC |
| Aux power — single phase | 10,000 W continuous, 50 Hz |
| Aux power — three phase | 13,000 W continuous, 50 Hz |
| Aux receptacles | IEC 60309 |

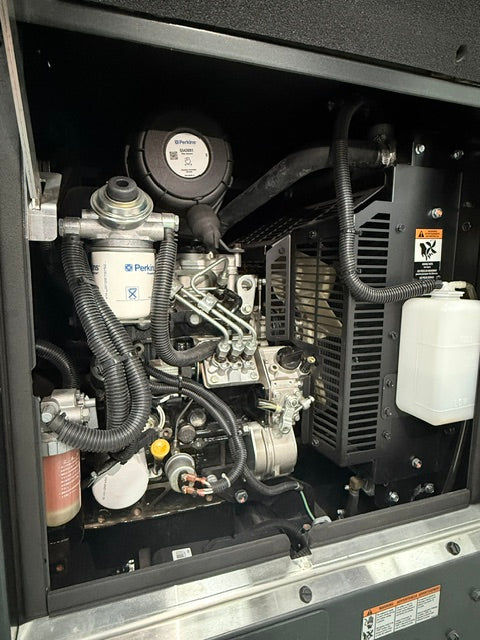

| Engine | Perkins® 403D-11, 3-cylinder, naturally aspirated, water-cooled diesel, 26.4 hp, Tier 4i |
| Engine speed | 3000 RPM high idle / 2100 RPM low idle |
| Sound level @ 7 m | 69 dBA low idle / 74 dBA high idle |
| Fuel tank | 75.7 L |
| Oil / coolant capacity | 4.4 L / 18.9 L |
| Ingress protection | IP23 |
| Dimensions (H × W × D) | 917 × 686 × 1651 mm |
| Net weight | 524 kg |
Frequently Asked Questions
What is a demo unit?
A demo unit is a machine that has used for customer demonstrations and product trials. It is not an ex-hire or ex-site machine. This unit has been serviced and checked, and it is sold with a 12-month warranty.
What warranty comes with the demo Dual Maverick 450?
A 12-month warranty backed by Lincoln Electric Australia.
Does it come with manuals and paperwork?
Yes. All original documentation is included.
How quickly can I get it?
It is in stock and ready to ship immediately. Contact QWS to arrange dispatch or pick-up from Brisbane.
Can two welders use it at the same time?
Yes. In dual mode it runs two independent arcs at up to 225A each, and each operator can use a different process.
How much generator power does it provide?
Up to 13 kW of continuous three-phase and 10 kW of single-phase auxiliary power, which drops while welding.
Secure this demo unit before it goes. Call QWS on 07 3399 6199 or email qldsales@weldingsupply.com.au. Only one available.
