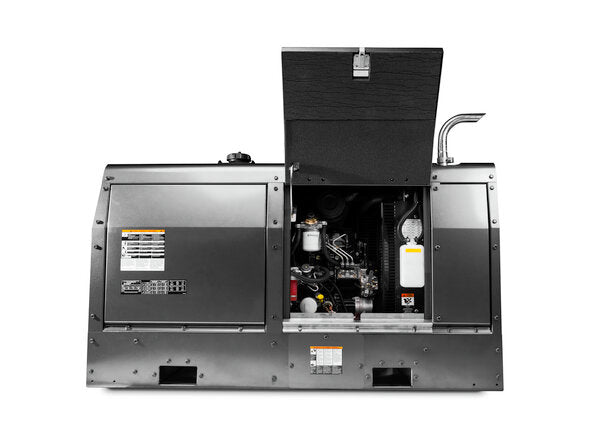

LINCOLN DUAL MAVERICK™ 450 DIESEL WELDER GENERATOR
Lincoln Electric Dual Maverick® 450 (Perkins®) — Diesel Engine-Driven Welder/Generator

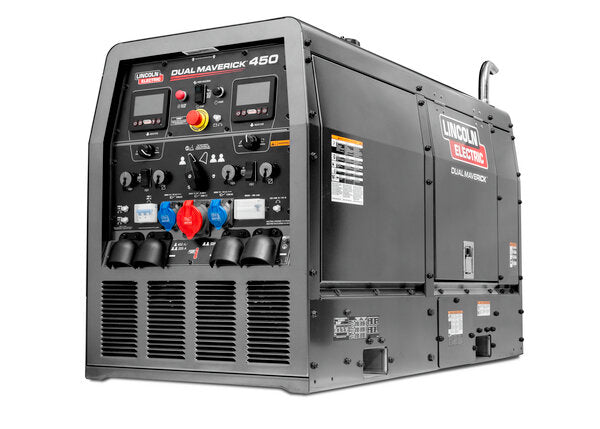

The Lincoln Dual Maverick 450 is a diesel engine-driven welder/generator that runs two independent welding arcs from one engine. Two operators can each weld at up to 225A, or one operator can switch to single mode for up to 450A at 100% duty cycle. It handles stick, TIG, MIG, flux-cored and carbon arc gouging with rods up to 9.5 mm, and supplies on-board auxiliary power for tools and lighting. It is powered by a 26.4 hp Perkins® 403D-11 water-cooled diesel and is built for construction sites, pipelines, mining and hire fleets.
Two welders, one machine to maintain
Running two operators from one engine means one machine to transport, fuel, service and tag. A crew that would normally tow two single-operator units to site can do the same work with one Dual Maverick, which saves trailer space, fuel and servicing costs.
Made for Australian site conditions
- Quieter operation: Engine speed adjusts to the welding load, and the machine runs at 69 dBA at low idle (measured at 7 m). That makes it easier for crews to hear instructions and warnings near the machine.
- Fuel savings: Variable RPM and auto start/stop shut the engine down after a set period without welding. It restarts when the electrode touches the work.
- Operator safety: Voltage Reduction Device (VRD) for both operators, compliant with AS 1674.2 Category C for welding in hazardous environments [verify for K4381-2 — confirmed on the earlier AU model K4393-1].

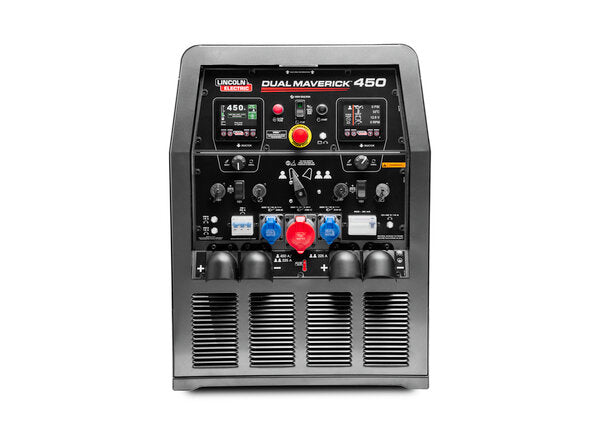

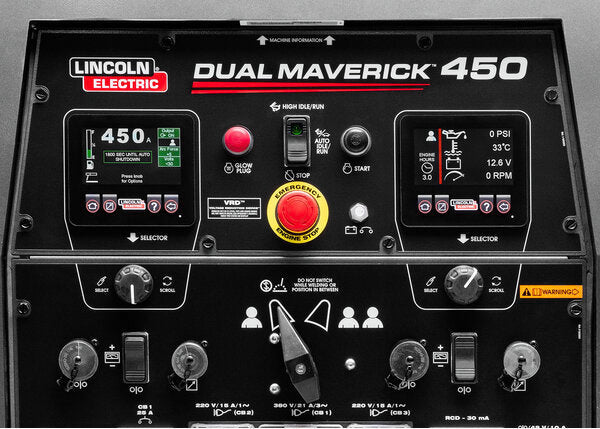

- Simple controls: Two heavy-duty 4.3" weatherproof LCD screens handle setup, and built-in maintenance reminders help protect engine life.
- Chopper Technology®: Lincoln's patented output control gives a smooth, stable arc across all processes.
Auxiliary power
The machine provides up to 13 kW of continuous three-phase and 10 kW of single-phase auxiliary power, enough for grinders, lighting, pumps and small compressors. Available auxiliary power drops while welding. On Australian construction sites, anything powered from the generator must meet AS/NZS 3012 requirements, including RCD protection [verify whether aux outlets are RCD-protected from factory].
Typical applications
Pipeline and downhill pipe welding · structural steel and construction · mining and mobile maintenance · marine and shipyard work · hire and rental fleets · carbon arc gouging and back-gouging.
Technical Specifications
| Specification | Detail |
|---|---|
| Part number | K4381-2 (Australia) |
| Processes | Stick (SMAW), Downhill Pipe, Touch Start TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW-S / FCAW-G), Arc Gouging (CAC-A) |
| Operators | 1 or 2 (selectable) |
| Max rating @ 40°C | Single: 450A / 26V / 100% · Dual: 225A / 26V / 100% |
| IEC rating @ 40°C | Single: 350A / 34V / 100% · Dual: 210A / 28.4V / 100% |
| Single mode output | Stick 50–450A · Pipe 50–450A · TIG 20–255A · CV 13–40V · Gouge 100–450A |
| Dual mode output | Stick 30–255A · Pipe 30–225A · TIG 20–250A · CV 13–40V |
| Open circuit voltage | 90V peak @ 3000 RPM |
| Max gouging carbon | 9.5 mm (3/8") |
| Wire feeder supply | 42VAC |
| Aux power — single phase | 10,000 W continuous, 50 Hz |
| Aux power — three phase | 13,000 W continuous, 50 Hz |
| Aux receptacles | IEC 60309 |
| Engine | Perkins® 403D-11, 3-cylinder, naturally aspirated, water-cooled diesel, 26.4 hp, Tier 4i |
| Engine speed | 3000 RPM high idle / 2100 RPM low idle |
| Sound level @ 7 m | 69 dBA low idle / 74 dBA high idle |

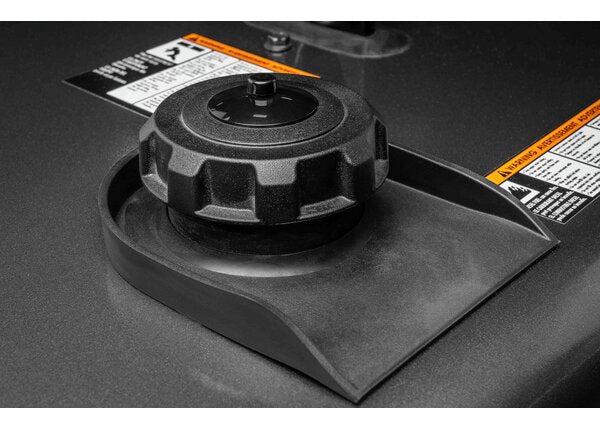

| Fuel tank | 75.7 L |
| Oil / coolant capacity | 4.4 L / 18.9 L |
| Ingress protection | IP23 |
| Dimensions (H × W × D) | 917 × 686 × 1651 mm |
| Net weight | 524 kg |
Frequently Asked Questions
Can two welders use the Dual Maverick 450 at the same time?
Yes. In dual mode it runs two fully independent arcs at up to 225A each, and each operator can use a different process. For example, one can stick weld while the other runs flux-cored wire.
What size gouging rod can it run?
Up to 9.5 mm (3/8") carbon rods in single-operator mode, with gouging current up to 450A.
Is it suitable for pipeline welding?
Yes. It has a dedicated downhill pipe mode for cellulosic electrodes, and the dual-arc setup lets two welders work on a pipe joint from the same machine.
How much generator power does it provide?
Up to 13 kW of continuous three-phase and 10 kW of single-phase auxiliary power. Available auxiliary power drops while you are welding.
Does it have a VRD for Australian worksites?
The Australian Dual Maverick 450 is fitted with a VRD for both operators to AS 1674.2 Category C.
How fuel-efficient is it?
Variable engine RPM matches engine speed to the welding load, and auto start/stop turns the engine off when nobody is welding. Both reduce fuel use and engine hours.
