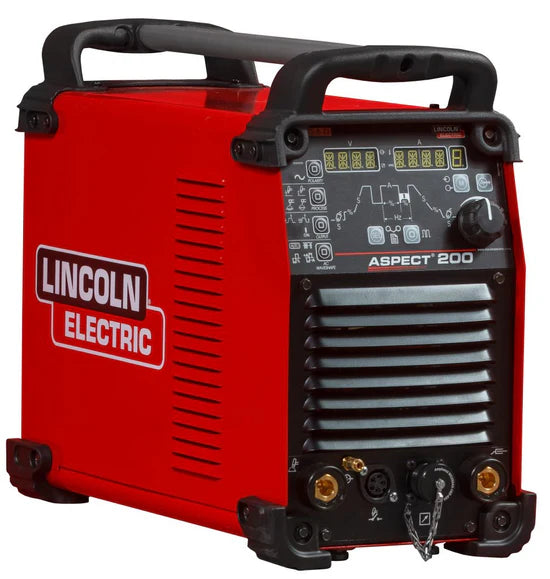

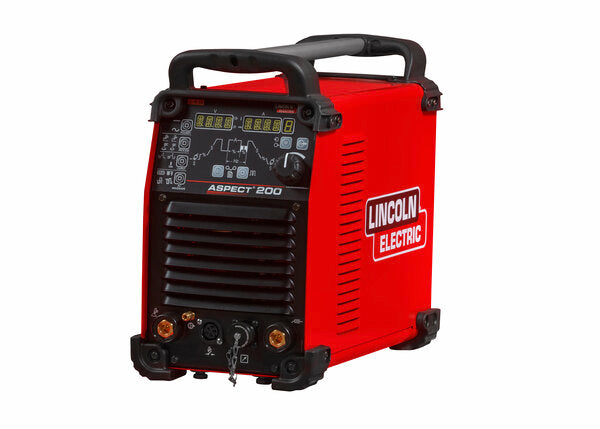

LINCOLN ASPECT 200 AC/DC TIG PACKAGE
by Lincoln
Part No: K14189-2
Lincoln Electric Aspect 200 AC/DC TIG / Stick Welder (240 V)
Power, precision, and flexibility — the Aspect 200 from Lincoln Electric is built to handle demanding TIG and Stick (MMA) welding tasks in both workshop and field environments. Designed to be user-friendly yet feature-rich, it’s ideal for fabricators, repair shops, and professionals who need reliable performance across multiple welding modes.
Key Features & Capabilities
- Full AC / DC TIG & Stick Functionality — Designed for TIG (GTAW) on AC or DC, and MMA (Stick) welding, giving you maximum versatility.
- Advanced Wave Control — Offers four selectable wave shapes, pulse mode, adjustable balance and offset, enabling fine control over arc behavior.
- Bright Digital Display & Intuitive Interface — Easy-to-read display, dedicated setup buttons, and torch-mounted control options for convenience.
- Low Current Start — Provides stable arc ignition down to just 2 A, giving better control on thin materials.
- Generator & Site Compatible — Equipped with a buck-boost / power factor correction circuit, making it tolerant of voltage fluctuations and suitable for remote job sites.
- Modular Design / Optional Water Cooling — Ships as an air-cooled unit, but can be upgraded to a water-cooled system simply by adding the Cool Arc 24 water cooler module.
- Robust & Reliable Construction — Built with “True HD” design, potted PCBs, and protection for harsh environments.
- Memory & Recall — Store and recall up to 9 welding programs, helping save time on commonly used settings.
Technical Specifications (Summary)
| Parameter | Value |
|---|---|
| Input Voltage / Phase | 230/240 V single-phase (±15%) |
| Output Range | 2 – 200 A |
| Rated Output | 200 A @ 35% duty |
| 100% Duty Output | ~130 A |
| Open-Circuit Voltage | ~109 V |
| Protection / Insulation | IP23, Class H |
| Weight | ~23 kg |
| Dimensions | 419 × 246 × 506 mm (H × W × D) |
Benefits & Applications
- Versatile Performance — Switch effortlessly between TIG (AC or DC) and Stick modes to suit job requirements.
- Arc Stability on Thin Metals — Low-current start and advanced wave shaping help avoid burn-through.
- Scalable Cooling Option — Start with the air-cooled version and upgrade to water cooling later if your application demands longer duty cycles.
- Field & Workshop Ready — Suitable for shop use and harsh site conditions thanks to robust build and generator compatibility.
- Memory for Efficiency — Save time by recalling saved settings for repeated tasks or materials.
