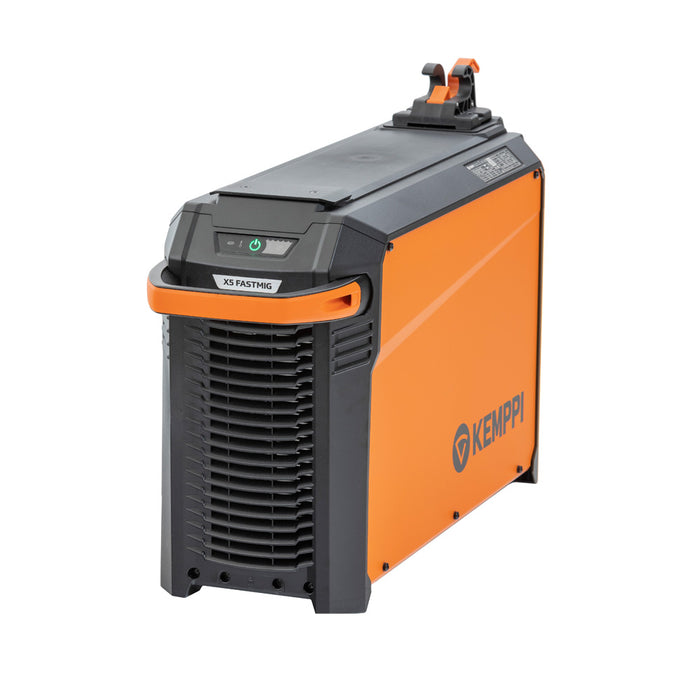

KEMPPI X5 POWER SOURCE 500 PULSE+

Kemppi X5 Power Source 500 Pulse+ — Premium Industrial Multi-Process MIG/MAG Power Source

The Kemppi X5 Power Source 500 Pulse+ is a premium industrial multi-process MIG/MAG power source delivering 500 A at 60% duty cycle. Supports Double Pulse, all MAX processes, WiseFusion, WisePenetration+, WiseRoot+, WiseThin+, and WiseSteel. Cobot-capable, WeldEye ArcVision native, dWPS-ready. 5-year warranty via MyFleet.

What Is the Kemppi X5 Power Source 500 Pulse+?

The Kemppi X5 Power Source 500 Pulse+ is the premium flagship model of the X5 FastMig family — a professional multi-process industrial MIG/MAG power source delivering 500 A at a 60% duty cycle from a 3-phase 380–460 V supply. It is more than a high-output welding machine. The X5 Power Source 500 Pulse+ is Kemppi's most advanced Industry 4.0-ready manual welding platform, combining maximum arc output with the full suite of Wise and MAX intelligent arc processes, native WeldEye ArcVision integration, digital WPS (dWPS) support, and cobot compatibility — all in a single power source.

The Pulse+ designation is critical. It is the hardware tier that unlocks the complete X5 process library, including WiseRoot+ and WiseThin+ — two specialist arc processes that are exclusive to Pulse+ models and not available on standard Pulse variants. Without Pulse+ hardware, these two processes cannot be activated regardless of software.

The X5 Power Source 500 Pulse+ is a power source only — it pairs with the X5 Wire Feeder HD200 AP/APC or X5 Wire Feeder HD300 AP/APC to form a complete X5 FastMig welding system. The APC (Advanced Process Control) wire feeder enables wireless connectivity features including dWPS and WeldEye ArcVision access directly from the control panel.

Supporting six welding processes — Double Pulse MIG, Pulse MIG, 1-MIG (synergic), Manual MIG/MAG, DC TIG, MMA (stick), and carbon arc gouging (TIG and MMA not available in robotic configurations) — and compatible with every MAX and Wise arc process in the Kemppi library, the X5 500 Pulse+ sets the benchmark for advanced industrial MIG/MAG welding.

A 5-year warranty is available through end-user registration in the Kemppi MyFleet service — extending well beyond the standard 3-year coverage offered on lower-tier models.

Designed and manufactured in Finland. Compliant with IEC 60974-1 and -10.

Key Features of the Kemppi X5 Power Source 500 Pulse+

500 A Multi-Process Output

The X5 500 Pulse+ delivers 500 A MIG output at a 60% duty cycle — the highest output in the X5 FastMig power source range. Supporting sustained high-current production welding across thick-section steel, heavy stainless pipe, large aluminium fabrications, and high-deposition cored wire applications, the 500 A output combined with the full Wise and MAX process library makes this the most capable manual welding power source in the Kemppi range.

Double Pulse MIG — Superior Arc Control at High Output

The Pulse+ designation enables Double Pulse (DPulse) MIG/MAG welding — an advanced arc control mode that alternates between two independently configurable pulse cycles. Double Pulse produces a highly controlled, low-spatter arc with superior weld bead appearance, reduced heat input compared to standard pulse, and improved fusion consistency on aluminium, stainless steel, and high-strength materials. It is not available on standard Pulse models or any X3 FastMig power source.

WiseFusion — 25% Faster Welding, 25% Lower Heat Input

WiseFusion produces a narrow, energy-dense welding arc that delivers 25% lower heat input than conventional MIG/MAG welding — and enables welding speeds up to 25% faster than traditional pulse MIG. The narrow, focused arc improves fusion control, reduces distortion on heat-sensitive materials, and delivers significantly higher productivity on stainless steel, aluminium, and precision fabrication applications. WiseFusion is a purchasable process add-on for the base 500 Pulse+ model, and is included as standard in the 500 Pulse+ WP variant.

WisePenetration+ — Consistent Penetration and Reduced Gap Welding

WisePenetration+ stabilises welding penetration regardless of variation in stick-out length and keeps welding current stable in all situations by actively adjusting wire feed. It also enables Reduced Gap Technology (RGT) — Kemppi's solution for reliable, efficient narrow gap welding on heavy metal structures up to 30 mm thick, without the need for special equipment or accessories. Reducing the groove angle can add significantly to the efficiency and productivity of welding heavy metal structures, and WisePenetration+ enables the use of RGT with the X5 FastMig. This is a transformative capability for pressure vessel, structural steel, and heavy fabrication operations.

WiseRoot+ — High-Quality Root Pass Welding (Pulse+ Exclusive)

WiseRoot+ is an advanced root pass welding process exclusively available on Pulse+ hardware — it cannot be activated on standard Pulse models. WiseRoot+ delivers controlled, high-quality root pass welds with superior gap bridging, consistent penetration, and minimal defect risk — supporting the most demanding root pass applications in pipe welding, pressure vessel fabrication, and structural steel construction. Requires a Pulse+ power source and APC wire feeder.

WiseThin+ — Precision Thin Sheet Welding (Pulse+ Exclusive)

WiseThin+ is a specialist thin sheet welding process also exclusively available on Pulse+ hardware. It provides optimised arc behaviour for welding thin and ultra-thin sheet materials where conventional arc processes risk burn-through, excessive heat input, or distortion. WiseThin+ is the preferred process for automotive, aerospace, and precision sheet metal fabrication where material integrity on thin gauges is critical. Requires a Pulse+ power source and APC wire feeder.

WiseSteel — Superior Out-of-Position and High-Speed Steel Welding

WiseSteel tackles the challenges of the globular arc range by alternating between short arc and spray transfer. In short-circuit transfer, it improves arc stability adaptively, providing better out-of-position steel welding capabilities. In spray transfer mode, micropulsing of current and voltage increases travel speed significantly. WiseSteel is included as standard in the 500 Pulse+ WP variant and available as a purchasable add-on for the base model.

Full MAX Arc Process Suite

The X5 500 Pulse+ is compatible with every MAX arc process in the Kemppi library:

• MAX Cool — reduced heat-input MIG/MAG for root pass welding, thin sheet, and gap bridging

• MAX Speed — increased travel speed on steel and stainless steel in PA/PB positions

• MAX Position — improved weld pool control and stability in positional (PF) welding

• MAX Root — controlled root pass welding process for consistent first-pass quality

All MAX processes are purchasable add-ons for the base 500 Pulse+ model. The combination of MAX and Wise processes gives operators an unparalleled toolkit for tackling demanding welding tasks across all materials, positions, and joint configurations.

WeldEye ArcVision — Native Industry 4.0 Integration

The X5 FastMig offers a native connection to WeldEye welding management software, opening a world of welding data even in the welding machine's user interface. X5 FastMig offers a free three-month trial for the WeldEye ArcVision module and the Welding Procedures module, including digital WPS functionality.

WeldEye ArcVision records welding data — current, voltage, wire feed speed, arc-on time — in real time from the machine, making this data immediately available for production analysis, quality reporting, and management review without manual data entry. This is a native, built-in capability of the X5 FastMig platform with an APC wire feeder, not an afterthought add-on.

Digital WPS (dWPS) — Welding Procedure Compliance at the Machine

The dWPS function of WeldEye ArcVision ensures that welding procedure specifications (WPS) are always followed exactly. With dWPS active, the welding machine enforces the parameter limits defined in the approved WPS — preventing operators from welding outside the specified ranges and generating a digital record of compliance for every weld. This is essential for fabrication to AS/NZS, ISO, EN, and ASME standards where WPS adherence must be demonstrated, audited, and traceable. Requires APC wire feeder.

Cobot-Capable — Seamless Collaborative Robot Integration

The X5 FastMig is a cobot-capable welding machine with quick and easy setup with a digital connectivity module and the Kemppi Cobotics app. The X5 500 Pulse+ can be integrated with collaborative robots (cobots) for semi-automated and fully automated welding cells — bringing the full X5 arc process library, including Wise and MAX processes, into cobot-controlled welding applications. This future-proofs the investment for operations moving toward automation without replacing their manual welding infrastructure.

Weld Assist — Guided Parameter Setup

Weld Assist guides welders to the correct application-specific welding procedure and application-specific selection of parameters, shortening the time to productive welding. At 500 A with the full Wise and MAX process library active, correct parameter setup is critical to weld quality and material performance — Weld Assist removes the setup burden for complex applications, high-strength materials, and operators moving between different processes.

5-Year Warranty via MyFleet Registration

The X5 Power Source 500 Pulse+ offers a 5-year warranty through end-user registration in the Kemppi MyFleet fleet management service — significantly extending the standard 3-year warranty coverage. MyFleet also provides a central platform for managing the service history, maintenance schedules, and registration status of multiple X5 units across a workshop fleet.

Power Source Only — Pairs with X5 Wire Feeder AP/APC

The X5 500 Pulse+ is a power source only and requires a compatible X5 Wire Feeder HD200 AP/APC or X5 Wire Feeder HD300 AP/APC to form a complete welding system. The APC (Advanced Process Control) wire feeder variant is required to access wireless connectivity, dWPS, WeldEye ArcVision, and Pulse+ processes including WiseRoot+ and WiseThin+. Standard AP feeders support 1-MIG and basic processes but do not enable the full Pulse+ process library.

X5 vs X3 FastMig — Understanding the Platform Difference

The X5 FastMig is a fundamentally different and more advanced platform than the X3 FastMig. Both are industrial MIG/MAG welding systems, but the X5 is designed for operations where arc intelligence, digital connectivity, and welding quality management are as important as raw output.

Who Is the Kemppi X5 Power Source 500 Pulse+ For?

The X5 Power Source 500 Pulse+ is designed for:

• Premium fabrication and manufacturing workshops requiring the highest-output multi-process MIG/MAG platform with intelligent arc processes for steel, stainless, and aluminium
• Quality-certified fabricators working to AS/NZS, ISO, EN, or ASME standards where dWPS compliance, WPS enforcement, and digital welding traceability are mandatory
• Pressure vessel, pipeline, and heavy structural fabricators needing WisePenetration+ for consistent penetration and Reduced Gap Technology on sections up to 30 mm thick
• Pipe and structural welders requiring WiseRoot+ for first-class root pass quality on critical joints
• Thin sheet and precision fabricators needing WiseThin+ for controlled, low-heat welding on delicate materials
• Operations transitioning to or evaluating cobot welding who need a power source that works seamlessly in both manual and cobot-assisted configurations
• Production managers who need real-time welding data, arc-on time records, and WPS compliance reporting via WeldEye ArcVision without additional hardware or manual data capture
• High-throughput production environments where WiseFusion's 25% faster welding speed and 25% lower heat input translate directly into productivity and quality gains

Kemppi X5 Power Source 500 Pulse+ — Technical Specifications

Full confirmed specifications available in the official Kemppi X5 FastMig technical data sheet.

The base 500 Pulse+ model is the maximum-flexibility entry point: all processes and work packs are available as modular purchases, allowing operations to build exactly the feature set they need. The 500 Pulse+ WP includes WiseSteel, WiseFusion, and the 54-program Work Pack Pulse pre-installed, providing immediate out-of-the-box productivity for pulse MIG and steel/aluminium/stainless applications.

Frequently Asked Questions — Kemppi X5 Power Source 500 Pulse+

What does Pulse+ mean on the Kemppi X5 Power Source? Pulse+ is the hardware tier of the X5 power source that unlocks the complete Kemppi arc process library — including WiseRoot+ and WiseThin+, which are exclusively available on Pulse+ models. Standard Pulse models cannot run WiseRoot+ or WiseThin+ regardless of software. If root pass welding quality or thin sheet performance with Wise processes are required, a Pulse+ power source is mandatory.

What is the difference between the X5 Power Source 500 Pulse+ and the X5 Power Source 500 Pulse+ WP? Both models are identical in hardware and process compatibility. The WP (Work Pack) variant includes WiseSteel and WiseFusion pre-installed and the X5 Work Pack Pulse with 54 welding programs as standard. The base Pulse+ model has no pre-installed programs or processes — these are purchased separately as modular add-ons. The WP variant is the recommended choice for operations that want to weld immediately across all common materials; the base model suits operations that want to purchase only the specific processes they need.

Is the X5 Power Source 500 Pulse+ a complete welding system? No. It is a power source only and requires a compatible X5 Wire Feeder HD200 AP/APC or X5 Wire Feeder HD300 AP/APC to form a complete welding system. Note that the APC feeder variant is required to access dWPS, WeldEye ArcVision, wireless connectivity, and the Pulse+ process library. Standard AP feeders support 1-MIG and basic processes only.

What is the difference between the X5 FastMig and the X3 FastMig? The X5 FastMig is a fundamentally more advanced platform. Beyond higher output (500 A vs 450 A), the X5 adds Double Pulse MIG, the full Wise process suite (WiseFusion, WisePenetration+, WiseRoot+, WiseThin+, WiseSteel), native WeldEye ArcVision integration, dWPS compliance enforcement, cobot compatibility, and a 5-year warranty via MyFleet. The X3 FastMig is a powerful production MIG system; the X5 FastMig is an intelligent welding platform for quality-critical, high-output, and digitally managed operations.

What is WiseFusion on the X5 Power Source 500 Pulse+? WiseFusion is an advanced arc welding process that produces a narrow, energy-dense arc delivering welding speeds up to 25% faster and heat input up to 25% lower than conventional pulse MIG — directly reducing distortion, improving fusion quality on heat-sensitive materials, and increasing productivity on stainless steel, aluminium, and precision fabrication applications.

What is WisePenetration+ and what is Reduced Gap Technology (RGT)? WisePenetration+ actively adjusts wire feed speed to maintain consistent arc penetration regardless of electrode stick-out variation. It also enables Kemppi's Reduced Gap Technology (RGT), which allows reliable narrow gap welding on heavy sections up to 30 mm thick without specialist tooling — significantly improving efficiency on thick-section pressure vessel, structural, and heavy plate fabrication.

What is the 5-year warranty on the X5 Power Source 500 Pulse+? A 5-year warranty is available by registering the product through the Kemppi MyFleet end-user service. MyFleet also provides fleet management, service scheduling, and maintenance tracking for X5 units. Without MyFleet registration, the standard 3-year warranty applies.

Can the X5 Power Source 500 Pulse+ be used with cobots? Yes. The X5 FastMig is cobot-capable and integrates with collaborative robots via a digital connectivity module and the Kemppi Cobotics app. This enables the full X5 arc process library — including Wise and MAX processes — to be used in cobot-assisted or fully automated welding applications.

What wire feeder does the X5 Power Source 500 Pulse+ require? The X5 500 Pulse+ requires an X5 Wire Feeder HD200 AP/APC or X5 Wire Feeder HD300 AP/APC — note that X3 wire feeders are not compatible. For full Pulse+ process capability, dWPS, and WeldEye ArcVision access, the APC (Advanced Process Control) variant of the wire feeder is required.
