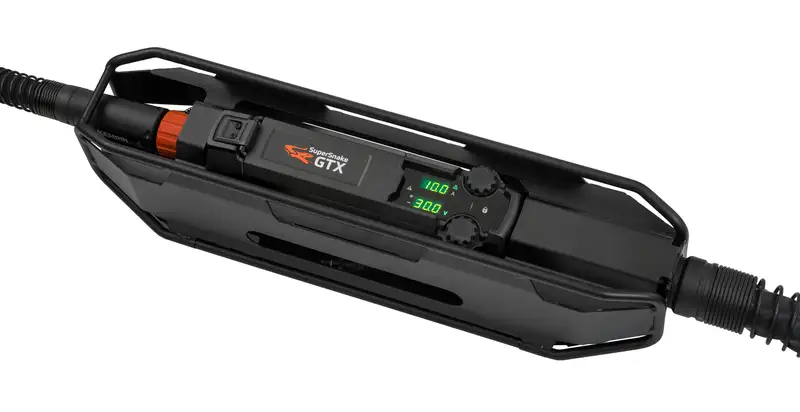

KEMPPI SUPERSNAKE GTX GAS 15M PACKAGE, 50MM2
Volume Discounts for ABN / Account holders -
Availability: Low inventory, stocking up soon!
SuperSnake GTX GAS 15m Package, 50mm² — P401GTX

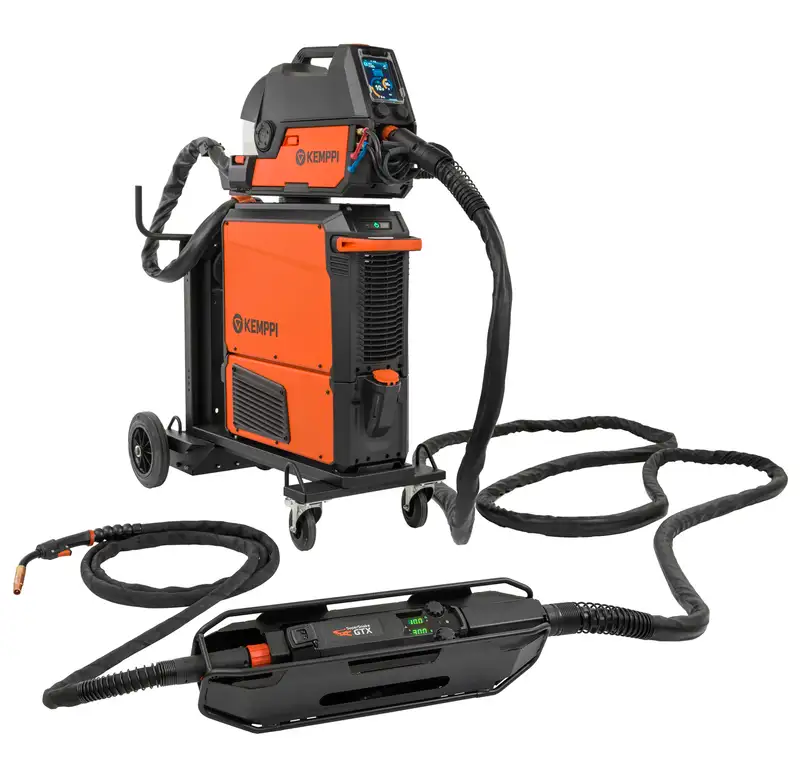

The Kemppi SuperSnake GTX GAS 15m Package extends MIG/MAG welding reach to 15 metres from the primary wire feeder using a synchronized twin-drive sub-feeder and 50mm² gas-cooled cable. Compatible with X5 FastMig and Master M 353/355/358. Includes metal protection cage.
What Is the Kemppi SuperSnake GTX GAS 15m Package?

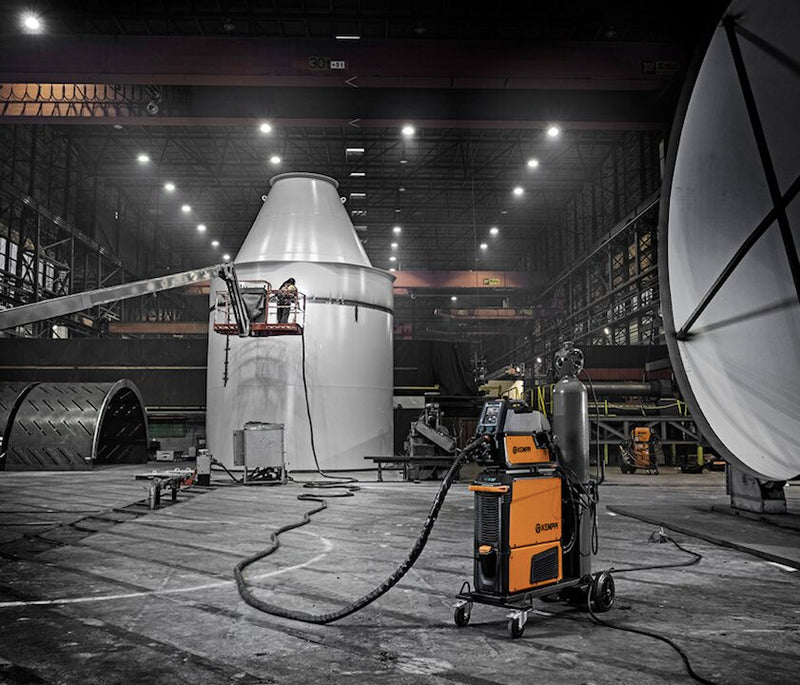

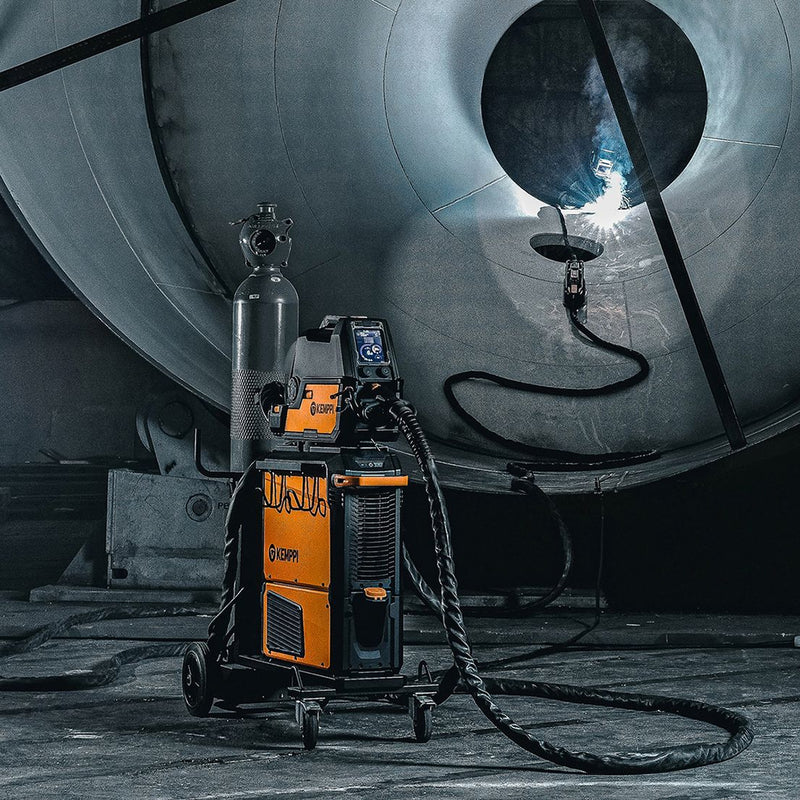

The Kemppi SuperSnake GTX GAS 15m Package (P401GTX) is a synchronized MIG/MAG sub-feeder system that extends the effective welding reach to 15 metres from the primary wire feeder using a 50mm² gas-cooled cable package. It is the step up from the 10m P400GTX — providing the additional reach needed for larger vessel interiors, wider structural steel spans, and plant maintenance environments where 10m falls short of the work.

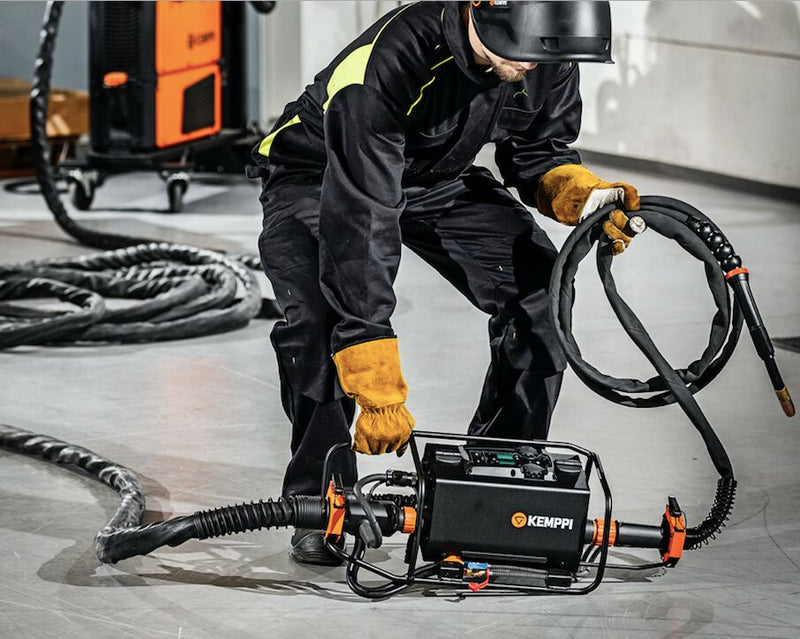

The GTX motor drive unit provides a compact, quick-release twin-drive secondary feed mechanism at the torch end, synchronized with the primary wire feeder. The package includes the SuperSnake GTX motor drive unit, 15m gas-cooled 50mm² cable, and the metal protection cage as standard.
Compatible with X5 FastMig wire feeders (with SuperSnake Kit X5 Feeder X5702030000 installed) and Master M 353, 355, and 358 machines in gas-cooled configurations.
Key Features
Synchronized Twin-Drive Wire Feed The compact, quick-release twin-drive mechanism synchronizes wire delivery with the primary wire feeder across the full 15m cable length — maintaining arc consistency and stability without the degraded feeding performance of an extended standard torch cable.
15m Gas-Cooled Cable, 50mm² The 50mm² gas-cooled cable provides robust current capacity and reliable shielding gas delivery over 15 metres — covering the majority of large-scale shipbuilding, structural steel, and industrial maintenance reach requirements in a single cable package.
On-Hand Parameter Adjustment Wire feed speed, voltage, synergic AUTO mode, and manual parameter control are all accessible at the SuperSnake GTX unit at the work location — eliminating trips back to the primary feeder across 15m of cable and structure.

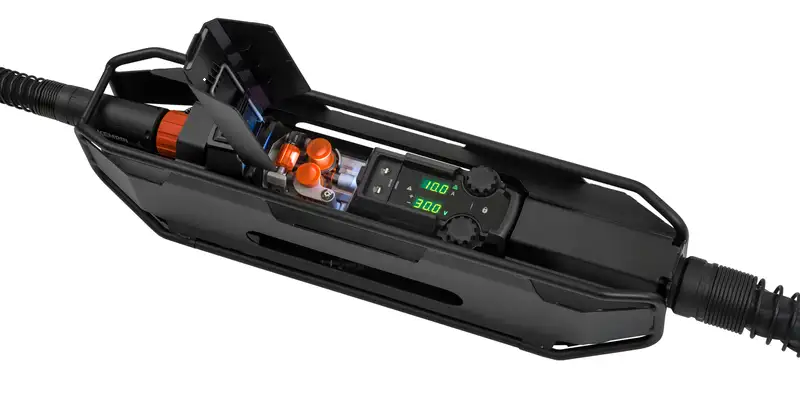

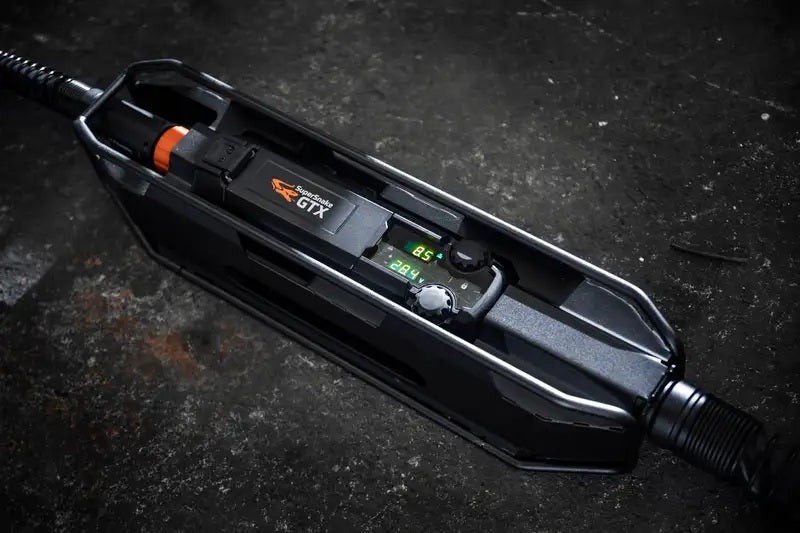

Clear LED Digital Display Welding voltage, amperage, wire feed speed, process, and polarity displayed clearly at the torch end in all lighting conditions. Data retained for approximately 30 seconds post-weld.

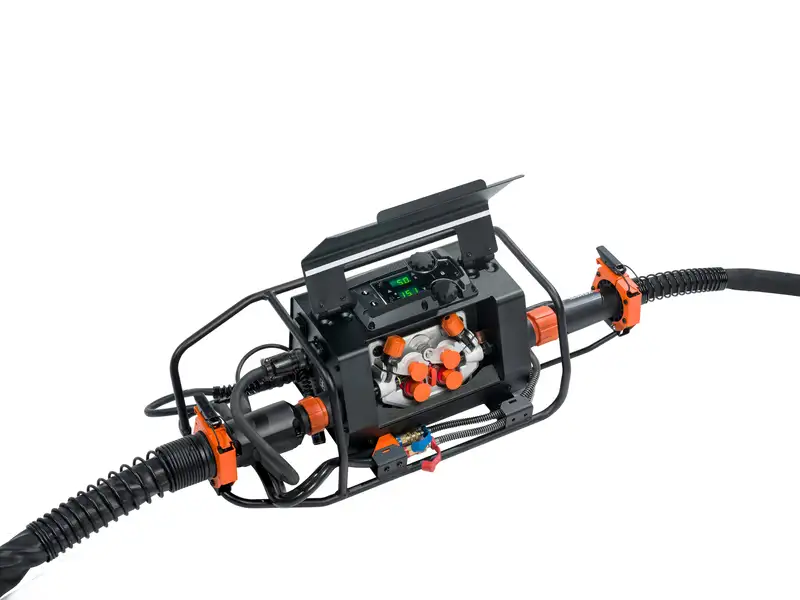

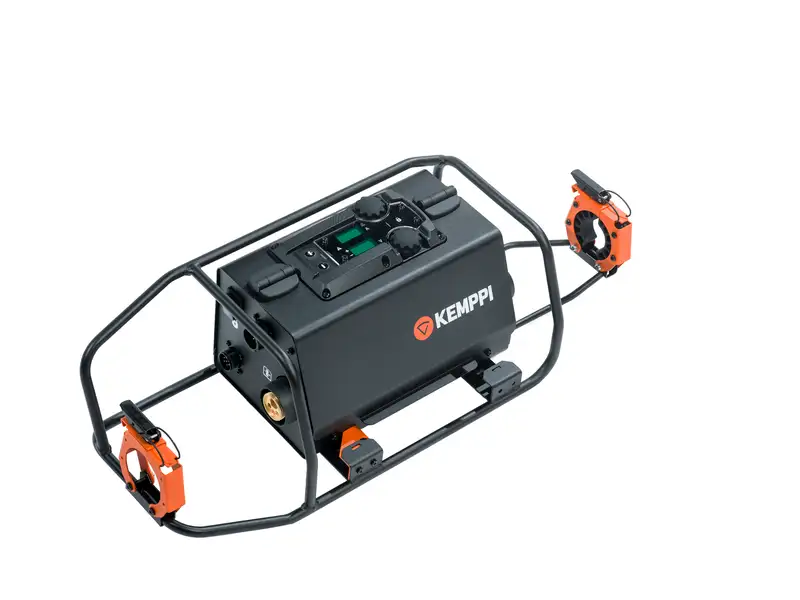

Metal Protection Cage — Included The metal cage combines, secures, and supports the cable package and torch, enables overhead suspension of the SuperSnake, and supports safe crane lifting with a 4-leg hoist strap at the cage corners.
Safety Isolation Switch ON/OFF safety lock switch prevents accidental arc activation while the operator is repositioning across the 15m cable run — an important safety control for large-structure and confined-space applications.
Wire Inch and Gas Test Buttons Setup and gas flow verification at the work location without a second operator at the primary feeder — practical over 15m where communication back to the feeder end is not always straightforward.
Standard Euro Gun Connector Accepts any standard Euro-connected MIG/MAG torch — compatible with the full range of Euro torches in your workshop fleet.
Technical Specifications
| Specification | Value |
|---|---|
| Product Code | P401GTX |
| Cable Configuration | Gas-cooled |
| Cable Length | 15 m |
| Cable Cross-Section | 50 mm² |
| Wire Feed Mechanism | Twin-drive (2-roll), quick-release |
| Filler Wire Compatibility | Fe, Ss, Al, FC, MC — 1.0–1.6 mm |
| Torch Connection | Standard Euro connector |
| Display | LED digital meter |
| Safety Isolation Switch | Yes |
| Wire Inch / Gas Test | Yes |
| Metal Protection Cage | Included |
| LED Cabinet Lighting | Yes |
| Cooling Configuration | Gas-cooled (air-cooled torch) |
| Compatible Systems | X5 FastMig (with Kit X5702030000), Master M 353/355/358 |
| Country of Manufacture | Finland |
Frequently Asked Questions:
What is the difference between the P400GTX and P401GTX? The P400GTX includes a 10m gas-cooled cable; the P401GTX includes a 15m gas-cooled cable. Both use the same SuperSnake GTX motor drive unit, 50mm² cable cross-section, and metal protection cage. Choose the P401GTX when the work location is between 10m and 15m from the primary wire feeder.
What does the P401GTX package include? The P401GTX includes the SuperSnake GTX motor drive unit, a 15m 50mm² gas-cooled cable package, and the metal protection cage. Drive rolls and torch are not included.
Does the P401GTX work with the X5 FastMig? Yes — the SuperSnake Kit X5 Feeder (X5702030000) must be installed on the X5 wire feeder to enable subfeeder synchronization. Contact QWS to confirm your configuration.
Is the P401GTX suitable for water-cooled torch setups? No. The P401GTX is a gas-cooled cable package. For water-cooled torch configurations at 15m reach, see the P405GTX SuperSnake GTX WATER 15m package.
