KEMPPI MINARC M 223P AUTO GM AU

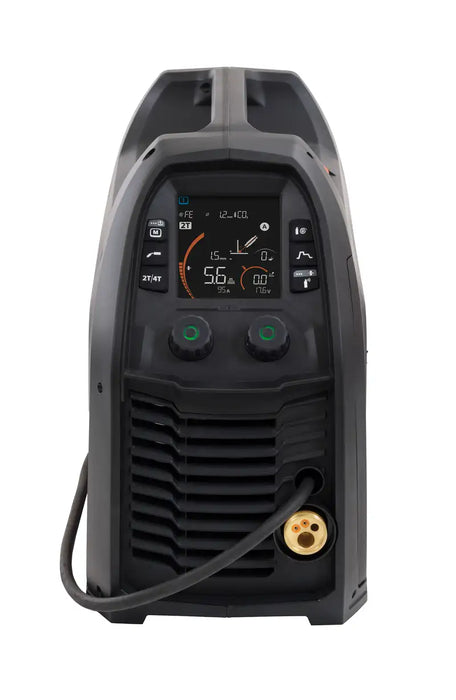

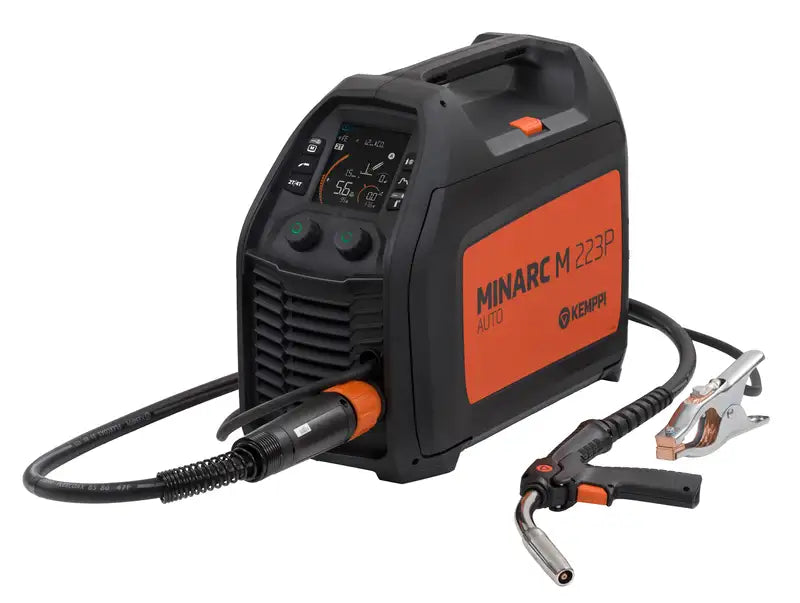

Kemppi Minarc M 223P Auto GM AU — 220A Pulse MIG Welder

The Kemppi Minarc M 223P Auto GM AU is a premium portable single-phase Pulse MIG/MAG welder delivering 220 amps at 20% duty cycle from a machine weighing just 11kg. With Manual MIG, Synergic 1-MIG and Pulse MIG processes, 48 welding programs, dual-voltage 110/240V input and full generator compatibility, it's built for professional fabricators, maintenance crews and mobile welders who need genuine pulse performance anywhere the job takes them. Available now from QWS — Queensland Welding Supplies, your authorised Kemppi dealer in Brisbane.

Pulse MIG performance that travels

Most single-phase portables force a compromise: portability or process capability. The Minarc M 223P refuses to choose. Pulse MIG welding gives you precise control over heat input and metal transfer — meaning dramatically less spatter, cleaner weld appearance and superior results on heat-sensitive materials like aluminium and stainless steel. That's capability you'd normally expect from a workshop-bound three-phase machine, packed into a unit you can carry in one hand up a ladder.

Off single-phase 240V power, the Minarc M 223P delivers 220A at 20% duty cycle, with 160A at 60% and 140A continuous at 100% — serious sustained output for a machine in this weight class. Dual-voltage capability means it also runs on 110V supply when required, and it's fully generator compatible (Kemppi recommends a minimum 8kVA generator), making it a genuine site machine for rural, mining and field service work across Queensland and beyond.

Three processes, 48 programs, five memories

Choose Manual MIG/MAG for full parameter control, Synergic 1-MIG for simplified setup where the machine coordinates parameters to your selected program, or Pulse MIG for premium results on aluminium, stainless and thin sections. With 48 welding curves covering steel (Fe), stainless steel (Ss), aluminium (Al), CuSi brazing, flux-cored and gasless wires, plus five memory channels for storing your go-to settings, switching between jobs and materials takes seconds, not minutes.

The Euro torch connector sets the 223P apart from the standard Minarc M 223 — torches can be removed, replaced or upgraded to suit the application, giving workshops far more flexibility over the machine's working life. The robust two-roll digital wire feeder delivers consistent feed from 0.5–18 m/min across 0.6–1.2mm wire diameters, accepting spools up to 5kg/200mm.

Technical specifications

Package includes: power source, welding torch, gun handle, gas hose, drive roll, earth return lead, power cable plug and shoulder strap — ready to weld out of the box.

Frequently asked questions

Can the Kemppi Minarc M 223P weld aluminium?
Yes. The Minarc M 223P includes dedicated Pulse MIG and synergic programs for aluminium, with pulse transfer controlling heat input to minimise burn-through and distortion on thin sections. Pair it with the appropriate aluminium liner and drive rolls for best results.

What's the difference between the Minarc M 223 and the 223P?
The 223P adds Pulse MIG capability (the standard 223 offers Manual and Synergic 1-MIG only), uses a removable Euro torch connector instead of a fixed torch, and carries 48 welding programs versus 33. If you weld aluminium or stainless regularly, or want torch flexibility, the 223P is the one to choose.

Can I run the Minarc M 223P off a generator?
Yes — it's designed for generator use. Kemppi recommends a minimum 8kVA generator for reliable full-output performance.

Is the Minarc M 223P suitable for site work?
Absolutely. At 11kg with a shoulder strap, dual 110/240V input and generator compatibility, it's purpose-built for mobile maintenance, field service and site fabrication as well as workshop use.
