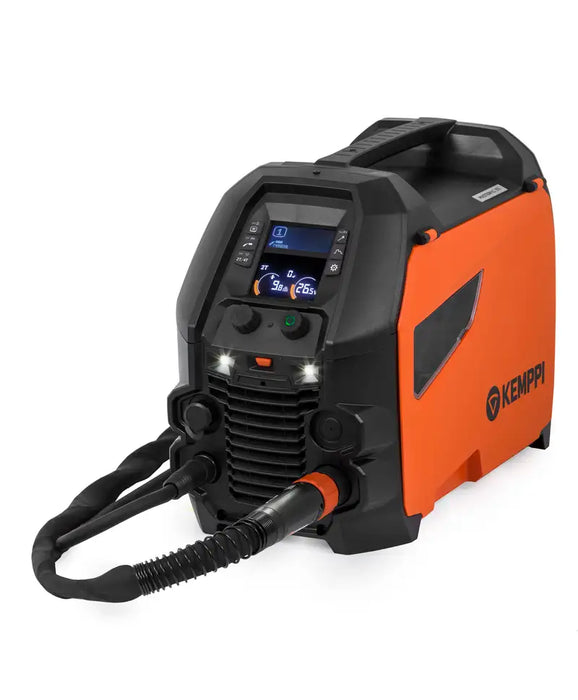

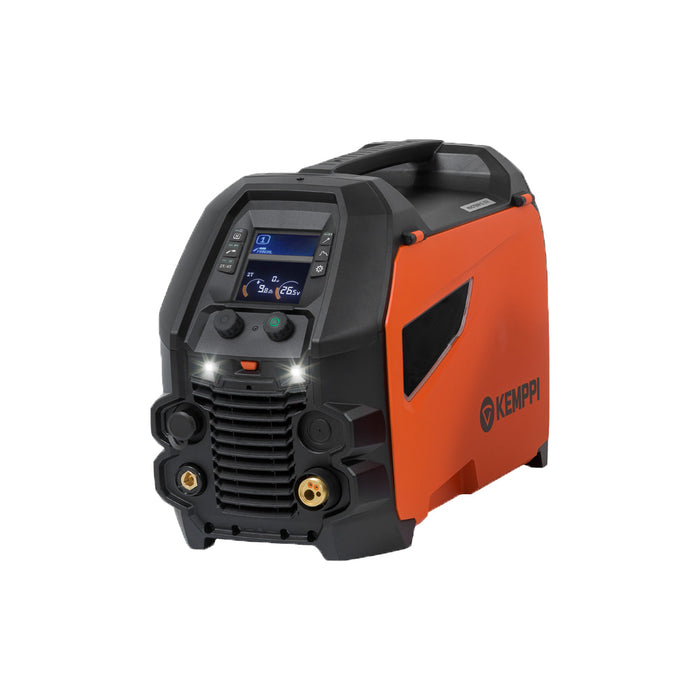

KEMPPI MASTER M 353 G
Kemppi Master M 353 G — Compact 3-Phase MIG/MAG Welder (350 A, Generator-Compatible)
The Kemppi Master M 353 G is a compact 3-phase MIG/MAG welder delivering 350 A at a 40% duty cycle from a 400 V supply. Features 4-roll wire drive, 300 mm spool capacity, Weld Assist, pre-installed welding programs, DC TIG, MMA, and generator compatibility. Ideal for fabrication workshops, maintenance, and agricultural operations.
What Is the Kemppi Master M 353 G?
The Kemppi Master M 353 G is a compact, professional MIG/MAG welder delivering 350 A at a 40% duty cycle from a standard 3-phase 400 V power supply. It is the synergic entry point in Kemppi's 353/355/358 Master M series — combining industrial-grade output and a robust 4-roll wire drive with the compact dimensions and smart usability features that define the Master M platform.
The G designation confirms generator compatibility, with a recommended minimum generator output of 20 kVA — making the 353 G equally at home powering from fixed workshop mains or a site generator on remote and rural operations.
Weighing 27 kg and measuring 602 × 298 × 447 mm, the Master M 353 G is compact enough for easy workshop mobility and site deployment, yet substantial enough to support 300 mm wire spools up to 20 kg — enabling extended production welding runs without constant spool changeovers. Supported welding processes include Manual MIG/MAG, 1-MIG (synergic), DC TIG, and MMA (stick), with a pre-installed work pack of welding programs covering the most common filler materials ready to use from day one.
Designed and manufactured in Finland. Compliant with IEC 60974-1 and -10.
Key Features of the Kemppi Master M 353 G
350 A Output with 4-Roll Wire Drive
The Master M 353 G delivers 350 A MIG output at a 40% duty cycle, stepping down to 280 A at 60% and 220 A for continuous 100% duty cycle operation. Supporting this output is a 4-roll, single-motor wire drive mechanism with 32 mm feed roll diameter — a significant upgrade over the 2-roll systems found in lighter portable MIG welders. The 4-roll drive delivers stronger, more consistent wire grip across all wire types and diameters, maintaining reliable wire feed performance over longer cable runs, at higher feed speeds, and during sustained production welding. This directly translates to a more stable arc and better weld consistency, particularly with flux-cored and metal-cored wires where consistent wire delivery is critical.
300 mm Spool Capacity — Up to 20 kg Wire Spools
The Master M 353 G accepts wire spools up to 300 mm diameter and 20 kg in weight — the same large-spool capacity found on full-size industrial MIG systems. This gives workshops and production environments the option to run large production spools continuously, reducing spool changeover downtime and cost on high-volume or long-seam welding jobs. In combination with the 4-roll drive, the 353 G is genuinely suited to sustained production output that the smaller 2-roll, 200 mm spool machines in the Master M family simply cannot match.
Pre-Installed Welding Work Pack — Ready From Day One
Every Master M 353 G ships with a factory-installed work pack of synergic welding programs covering the most common filler materials and diameters used in professional MIG/MAG fabrication:
- Fe — mild steel solid wire, 0.8–1.2 mm
- Ss — stainless steel solid wire, 0.8–1.2 mm
- Al (AlMg5, AlSi5) — aluminium alloy wire, 0.8–1.2 mm
- CuSi (CuSi3) — silicon bronze wire, 0.8–1.2 mm
- CuAl (CuAl8) — aluminium bronze wire, 0.8–1.2 mm
- Fe Metal — metal-cored wire, 0.8–1.2 mm
- Fe Rutil — rutile flux-cored wire, 0.8–1.2 mm
- FC-CrNiMo — flux-cored CrNiMo wire, 0.8–1.2 mm
These programs are immediately usable out of the box — no additional software, no separate work pack purchase required — covering the full range of common industrial fabrication materials.
1-MIG Synergic Welding Process
In 1-MIG (Auto) mode, the machine automatically adjusts voltage and wire feed speed together from a single arc length control input. Welders select the filler material, wire diameter, and shielding gas from the pre-installed program library, and the machine manages the parameter relationship automatically — delivering consistently correct welding conditions without requiring the operator to manually balance voltage and wire feed independently. This reduces setup errors, speeds parameter selection between jobs, and maintains arc quality across varying material thicknesses.
Weld Assist — Faster, More Accurate Parameter Setup
Weld Assist guides operators through an on-screen selection of material thickness, joint type, and welding position — and automatically configures the correct welding parameters for the selected program. This guided setup approach significantly reduces the time and experience required to establish accurate welding conditions, making the 353 G suitable for workshops with mixed skill levels, operators moving quickly between different materials and joint types, or any environment where consistent first-pass parameter accuracy is important.
6 Memory Channels
Six user-programmable memory channels allow the most frequently used welding configurations to be saved and recalled instantly — eliminating repeat manual setup across recurring job types and reducing parameter entry errors between operators and shifts.
Kinetic Spool Brake
The Master M 353 G includes a kinetic spool brake that automatically decelerates and reverse-tensions the wire spool at the end of each weld. This prevents wire spool overrun — where the spool continues spinning after the arc stops, causing wire to unspool, tangle, or nest inside the cabinet. On large 20 kg production spools, spool overrun is a real operational issue; the kinetic brake eliminates it, reducing wire waste and cabinet maintenance.
PowerLog — Trigger-Based Current Switching
PowerLog enables welders to switch between two or three independently configured power levels during welding by clicking the gun trigger — without stopping the arc or returning to the machine. This is particularly practical for jobs requiring different heat input between root and fill passes, across changing material thicknesses, or between different welding positions on a single component.
Auto Cable Calibration
Built-in automatic cable calibration measures total welding circuit resistance and calibrates the digital voltage display to accurately reflect the true arc voltage at the gun tip — regardless of cable length or configuration. The machine prompts recalibration when torch and earth cable lengths change, ensuring parameter accuracy is maintained when setups are reconfigured between jobs or sites.
Self-Charging LED Work Lights
Integrated self-charging LED work lights — powered by an onboard lithium-ion battery — provide illumination of the cabinet and work area with or without mains power connected. This improves visibility for wire loading, spool changeover, and welding in low-light environments such as plant rooms, outdoor sites at dusk, and poorly lit workshop areas.
Safe-Lift Grab Handle
The Master M 353 G features a safe-lift rated grab handle that supports the full machine weight for crane or hoist lifting — enabling safe mechanical relocation, overhead rigging, and positioning in environments where the machine needs to be moved vertically or hoisted to a working level.
Colour LCD Display
The built-in colour LCD display provides clear, easy-to-read parameter information and program selection across all lighting conditions. All key welding data — process, material, program, parameters, memory channel — is displayed on a single screen without requiring submenus or navigation.
USB Port
An onboard USB port enables software updates, work pack additions, and data transfer directly at the machine — without requiring a laptop, specialist tool, or engineer visit for routine software maintenance.
PIN Lock
The PIN lock function restricts unauthorised access to machine settings, preventing accidental or deliberate parameter changes by unauthorised operators — useful in shared workshop environments, apprentice training settings, and any operation where parameter control is part of quality management.
Interval Welding Timer
The built-in interval welding timer supports timed welding cycles for repetitive spot or stitch welding applications, enabling consistent arc-on intervals without manual timing by the operator.
Generator Compatible — 20 kVA Minimum
The G designation confirms the Master M 353 G is rated for generator operation. With a recommended minimum generator power of 20 kVA, it delivers full 350 A MIG output from a site generator — suitable for construction, maintenance, agricultural, and rural operations where 3-phase mains supply is unavailable.
SuperSnake GTX Sub-Feeder Compatible
The Master M 353 G is compatible with the Kemppi SuperSnake GTX sub-feeder, which extends the effective welding reach from the power source — allowing operators to weld at significantly greater distances from the machine without sacrificing wire feeding performance or arc quality. This is a practical advantage on large structures, shipbuilding projects, and any application where moving the power source to the work area is impractical.
Optional Water Cooling — Master Cooler
The optional Master M Cooler unit integrates with the 353 G power source for water-cooled torch operation, enabling extended high-duty-cycle welding sessions with improved thermal management, longer torch consumable life, and improved operator comfort on intensive production runs. With the cooler fitted, total system weight is approximately 42 kg.
Optional 2-Wheel and 4-Wheel Transport Carriage
The Master M 353 G is compatible with optional 2-wheel and 4-wheel transport carriages, improving mobility across workshop floors and sites and enabling safe, stable transport of the machine with or without the cooling unit attached.
Optional GXR10 Gun Remote Control
The optional GXR10 on-gun remote control allows welding current and voltage adjustment directly from the torch body — eliminating the need to return to the machine to adjust parameters during welding and increasing productivity on jobs requiring frequent current changes.
Optional WeldEye ArcVision
The Master M 353 G is compatible with Kemppi's WeldEye ArcVision module, which tracks and records arc-on time and welding parameters for production monitoring, quality reporting, and traceability purposes. For native WeldEye integration and digital WPS management, see the Master M 358 model.
QR Code Product Access
A unique, scannable QR code on every Master M 353 G provides instant mobile access to product and serial numbers, technical specifications, ordering codes, consumables, user manuals, and local dealer or service contact information.
Who Is the Kemppi Master M 353 G For?
The Master M 353 G is designed for:
- Fabrication and manufacturing workshops requiring compact, high-output 3-phase MIG/MAG welding with large spool capacity for production runs
- Agricultural machinery, earthmoving, and transport equipment repair workshops needing reliable, versatile 350 A multiprocess welding from a machine that runs on a site generator
- Maintenance and shutdown contractors who need Manual MIG, 1-MIG, DC TIG, and MMA from a single compact machine on a 3-phase supply
- Structural steel and light fabrication shops requiring synergic MIG with pre-installed programs across steel, stainless, aluminium, and cored wire types
- Mixed-skill welding teams where Weld Assist and 1-MIG synergic programs reduce the experience required to achieve consistent weld quality
- Operations requiring extended reach welding via the optional SuperSnake GTX sub-feeder, such as large vessel fabrication, structural steel, and shipbuilding
Kemppi Master M 353 G — Technical Specifications
| Specification | Value |
|---|---|
| Product Code | MSM353G |
| Welding Processes | Manual MIG/MAG, 1-MIG (Synergic), DC TIG, MMA (Stick) |
| Power Supply | 3-phase, 380–460 V ±10%, 50/60 Hz |
| Mains Connection Cable | H07RN-F, 4 mm² |
| Mains Fuse | 16 A (slow) |
| Input Power at Rated Max Current | 14 kVA |
| Max Supply Current @ 380–460 V | 21.3–17.1 A |
| Idle Power Consumption (MIG/TIG) | 18 W |
| No-Load Voltage | 55–69 V |
| VRD Voltage (MMA) | 24 V |
| Output at 40% Duty Cycle — MIG | 350 A |
| Output at 40% Duty Cycle — MMA | 330 A |
| Output at 60% Duty Cycle | 280 A |
| Output at 100% Duty Cycle — MIG | 220 A |
| MIG Welding Range | 15 A / 10 V – 350 A / 45 V |
| TIG Welding Range | 15 A / 1 V – 350 A / 45 V |
| MMA Welding Range | 15 A / 10 V – 330 A / 45 V |
| MIG Voltage Adjustment Range | 10–40 V |
| Power Factor (λ) | 0.91 |
| Efficiency (η) | 87% |
| Wire Feed Mechanism | 4-roll, single-motor |
| Feed Roll Diameter | 32 mm |
| Wire Feed Speed | 0.5–25 m/min |
| Filler Wire — Fe, Ss, MC/FC, Al | 0.8–1.2 mm |
| Max Wire Spool Diameter | 300 mm |
| Max Wire Spool Weight | 20 kg |
| Max Shielding Gas Pressure | 0.5 MPa |
| Gun Connection | Euro |
| Control Panel | Built-in colour LCD display |
| Wired Communication | CAN bus |
| Wireless Communication | — |
| Memory Channels | 6 |
| Recommended Min Generator Power | 20 kVA |
| Min Short-Circuit Power of Supply | 2.4 MVA |
| Auxiliary Device Supply Voltage | 12 V |
| Cooling Unit Supply Voltage | 24 V |
| Dimensions (L × W × H) | 602 × 298 × 447 mm |
| Weight (without accessories) | 27 kg |
| Weight (with Master Cooler) | ~42 kg |
| Protection Class | IP23S |
| Operating Temperature | -20°C to +40°C |
| Storage Temperature | -40°C to +60°C |
| EMC Class | A |
| Standards | IEC 60974-1, -10 |
| Warranty | 3 Years |
| Country of Manufacture | Finland |
Master M 353 G — Where It Sits in the Master M Range
| Feature | Master M 323 GM | Master M 353 G | Master M 355 G | Master M 358 G |
|---|---|---|---|---|
| Max Output (40% DC) | 320 A | 350 A | 350 A | 350 A |
| Wire Drive | 2-roll | 4-roll | 4-roll | 4-roll |
| Max Spool Size | 200 mm / 5 kg | 300 mm / 20 kg | 300 mm / 20 kg | 300 mm / 20 kg |
| Manual MIG | Yes | Yes | Yes | Yes |
| 1-MIG (Synergic) | Yes | Yes | Yes | Yes |
| Pulse MIG | No | No | Yes | Yes |
| MAX / Wise Processes | MAX Cool only | No | Optional | Optional |
| DC TIG | Yes | Yes | Yes | Yes |
| MMA | Yes | Yes | Yes | Yes |
| Multi-Voltage (MV) | Yes | No | No | No |
| Native WeldEye | No | No | No | Yes |
| SuperSnake Compatible | No | Yes | Yes | Yes |
| Kinetic Spool Brake | No | Yes | Yes | Yes |
| Weight | 18.5 kg | 27 kg | 27 kg | 27 kg |
Frequently Asked Questions — Kemppi Master M 353 G
What does the G mean on the Kemppi Master M 353 G? G stands for generator-compatible. The Master M 353 G is rated for generator power supply and requires a minimum generator output of 20 kVA to operate at full welding capacity. It accepts only standard 3-phase 380–460 V input — for multi-voltage capability (including 220–230 V 3-phase low-range input), see the Master M 353 GM.
What welding processes does the Master M 353 G support? The Master M 353 G supports Manual MIG/MAG, 1-MIG synergic welding, DC TIG, and MMA (stick) welding. It does not include Pulse MIG — for pulse MIG capability see the Master M 355 G, which shares the same platform and adds pulse MIG and optional MAX/Wise arc processes.
What is the duty cycle of the Kemppi Master M 353 G? The Master M 353 G delivers its rated maximum MIG output of 350 A at a 40% duty cycle. At 280 A it operates at a 60% duty cycle, and at 220 A it can weld continuously at 100% duty cycle. MMA maximum output is 330 A at a 40% duty cycle.
What wire spool sizes does the Master M 353 G accept? The Master M 353 G accepts wire spools up to 300 mm in diameter and 20 kg in weight — the same large-format spool capacity as full-size industrial MIG systems. This makes it well-suited to production welding environments where large spools reduce downtime from frequent changeovers.
What is the difference between the Master M 353 G and the Master M 353 GM? Both models are identical in welding performance and features. The 353 G accepts only 3-phase 380–460 V input. The 353 GM adds multi-voltage capability, also accepting 3-phase 220–230 V low-range input (delivering 300 A at 40% duty cycle at that voltage) and requires a 32 A fuse on the low-range input versus 16 A for the 353 G on standard voltage.
What is the difference between the Master M 353 G and the Master M 355 G? The 353 G and 355 G share the same power source, wire drive, spool capacity, and physical dimensions. The key difference is process capability: the 355 G adds Pulse MIG (Auto Pulse) welding and supports optional MAX and Wise advanced arc processes (MAX Cool, MAX Speed, MAX Position, WiseFusion) that are not available on the 353 G.
Does the Master M 353 G support pulse MIG welding? No. The Master M 353 G supports Manual MIG and 1-MIG synergic welding only. For Pulse MIG capability in the same 350 A compact form factor, see the Master M 355 G.
What is the kinetic spool brake on the Master M 353 G? The kinetic spool brake automatically decelerates and reverse-tensions the wire spool at the end of each weld, preventing the spool from overrunning and causing wire to unspool, tangle, or nest inside the cabinet. This is particularly valuable when running large 20 kg wire spools at high feed speeds during sustained production welding.
Is the Master M 353 G compatible with the SuperSnake GTX sub-feeder? Yes. The Master M 353 G supports the Kemppi SuperSnake GTX sub-feeder, which extends the effective welding reach from the power source — enabling welding at much greater distances without compromising wire feeding performance or arc quality. This is a practical advantage for large structure fabrication, shipbuilding, and any application where relocating the power source to the work area is not practical.
Can a water-cooled torch be used with the Master M 353 G? Yes. The optional Master M Cooler unit integrates with the 353 G for water-cooled torch operation. With the cooler fitted, the combined system weight is approximately 42 kg. Water cooling extends torch consumable life and supports extended high-output welding sessions more comfortably than air-cooled torches at sustained high current levels.
