KATBAK CERAMIC BACKING BAR

No reviews
Original price $79.64 - Original price $79.64
Original price
$79.64 / each
$79.64
$79.64 - $79.64
Current price $79.64
Excludes GST - GST calculated at checkout

Volume Discounts for ABN / Account holders -

Part No: 1G62

Availability: Low inventory, stocking up soon!

QWS can provide you with a KATBAK ceramic weld backing to meet your needs. If you don’t see the ceramic you need, please contact QWS to discuss your specific requirement. Impart X-ray Quality Back Beads On Root Pass Weld One Side Only Deposit More Weld Metal Root Weld And Fill In One Pass Eliminate Defects And Rework Eliminate Costly Unnecessary Gouging And Grinding Sizes 1/4” (6.3 mm) to 6” (152.4 mm)

KATBAK® Ceramic Weld Backing

  • Impart X-ray Quality Back Beads On Root Pass
  • Weld One Side Only
  • Deposit More Weld Metal
  • Root Weld And Fill In One Pass
  • Eliminate Defects And Rework
  • Eliminate Costly Unnecessary Gouging And Grinding
  • Sizes 1/4” (6.3 mm) to 6” (152.4 mm)
  • Special Sizes And Configurations Available
  • Conveniently Packaged and Sealed In Plastic For Moisture Proof Protection
  • Wider Heat Receptive Pressure Sensitive Foil For Improved Adhesion To Work Piece

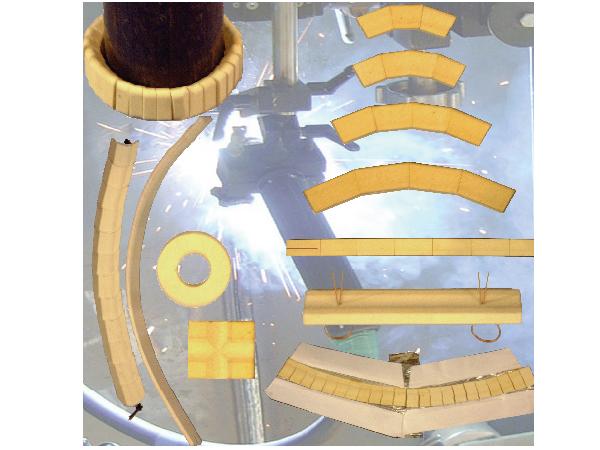

This tile is most suitable for those applications where slag is involved, mainly M.A.G. welding with cored wire. It gives space for the slag to go while leaving a good root bead. Each tile is radiuses to form a strip around the cylinder.

12m - 40ft./ box
Available in 1/4” to 2” (6.3mm to 50.8mm) tiles.

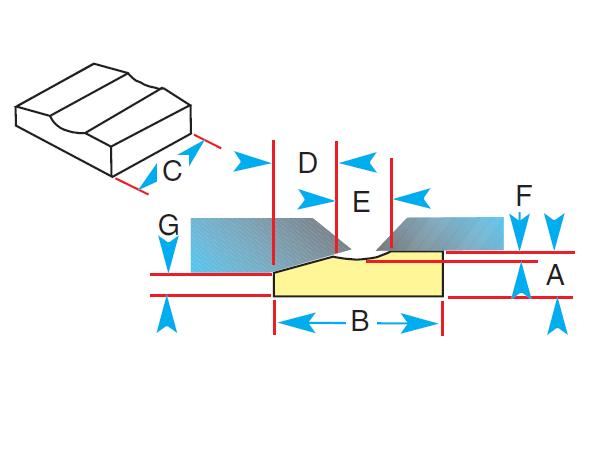

Dimension:

A 21/64 in8.3 mm

B

1 7/32 in31 mm

C

1 in25.4 mm

D

7/16 in11.1 mm

E

7/16 in11.1 mm

F

3/64 in1.2 mm

G

11/64 in4.4 mm
