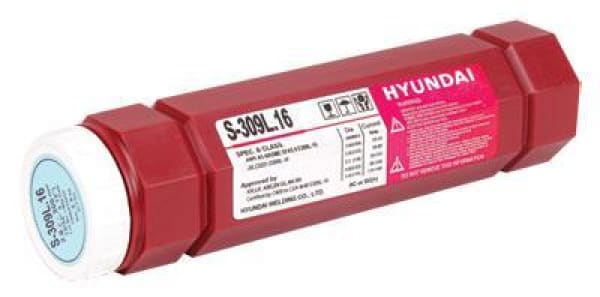

HYUNDAI ELECTRODE S/S 309L 4.0MM

by Hyundai
Part No: EHY30940
Hyundai S-309L.16 Stainless/Mild Steel Electrodes
Welding of 22% Cr-12%Ni steel. Welding of dissimilar metals and build-up welding of stainless steel on carbon steel or low alloy steel.

Characteristics on usage:
S-309L.16 is a lime-titania type electrode and its usability is excellent. As the all-weld metal contains extra low carbon and high content of delta ferrite, its corrosion and heat resistability are also good. S-309L.17 has a high moisture resistance and good porosity resistability.

Notes on usage:
  • Dry the electrodes at 350°C (662°F) for 60 minutes before use.
  • In case of clad steel welding, pay attention to the degree of penetration into the base plate.
  • Keep the arc as short as possible, the electrodes away from moisture and stored with care.
Welding position:
  • F, HV, VU, OH
Current:
  • AC or DC+
Typical Chemical Composition of all weld metal (%)
 C       Si       Mn       P       S       Cr       Ni
 .02       .76       1.3       .023       .019       22.9       12.7

Typical Mechanical Properties of all weld metal
 T.S N/mm2 (lbs/in2)     EL. (%)
 563 (81,800)       43.0

Approval
KR, ABS, LR, BV, DNV, NK, GL, CWB This product is priced “per KG”. The minimum quantity available to purchase is shown in the "Pack Qty".
Request a quote or more information.
