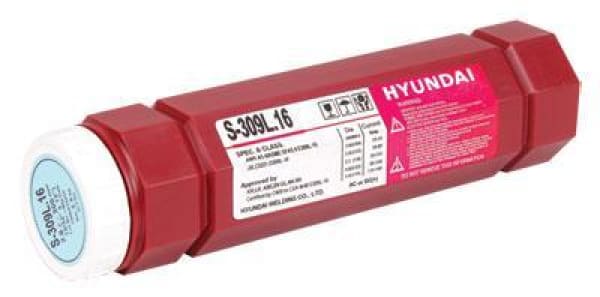

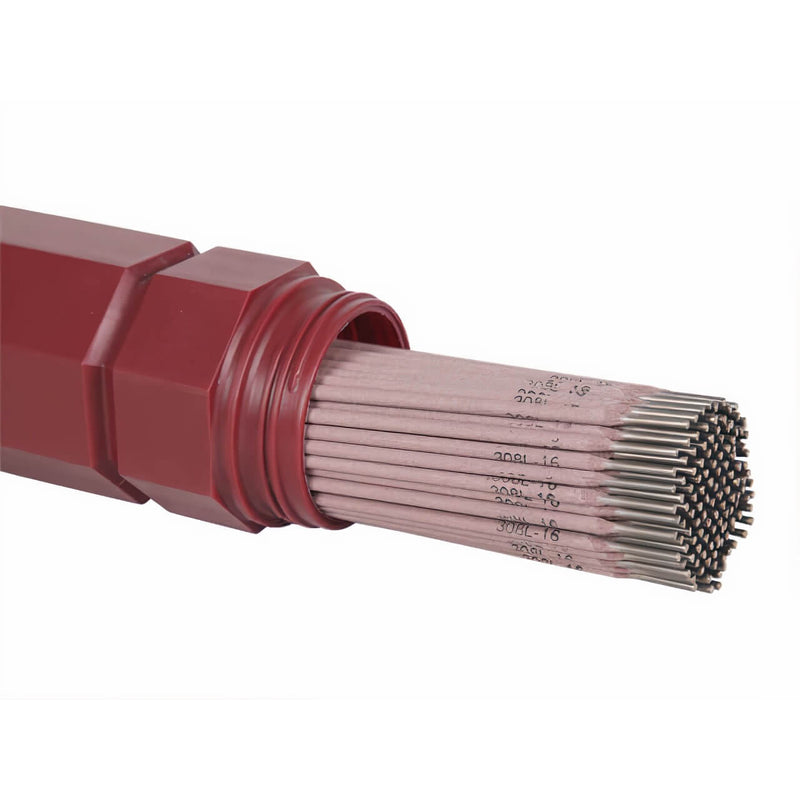

Hyundai S-309L.16 Stainless/Mild Steel Electrodes
Welding of 22% Cr-12%Ni steel. Welding of dissimilar metals and build-up welding of stainless steel on carbon steel or low alloy steel.

Characteristics on usage:
S-309L.16 is a lime-titania type electrode and its usability is excellent. As the all-weld metal contains extra low carbon and high content of delta ferrite, its corrosion and heat resistability are also good. S-309L.17 has a high moisture resistance and good porosity resistability.

Notes on usage:

• Dry the electrodes at 350°C (662°F) for 60 minutes before use.
• In case of clad steel welding, pay attention to the degree of penetration into the base plate.
• Keep the arc as short as possible, the electrodes away from moisture and stored with care.


Welding position:

• F, HV, VU, OH

Current:

• AC or DC+

Typical Chemical Composition of all weld metal (%)
 C       Si       Mn       P       S       Cr       Ni
 .02       .76       1.3       .023       .019       22.9       12.7

Typical Mechanical Properties of all weld metal
 T.S N/mm2 (lbs/in2)     EL. (%)
 563 (81,800)       43.0

Approval
KR, ABS, LR, BV, DNV, NK, GL, CWB This product is priced “per KG”. The minimum quantity available to purchase is shown in the "Pack Qty".
