HYUNDAI ELECTRODE 316L S/S MARINE GRADE 3.2MM

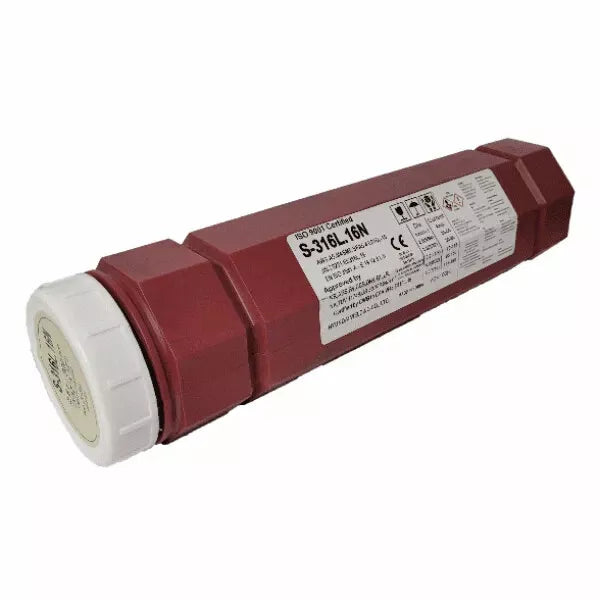

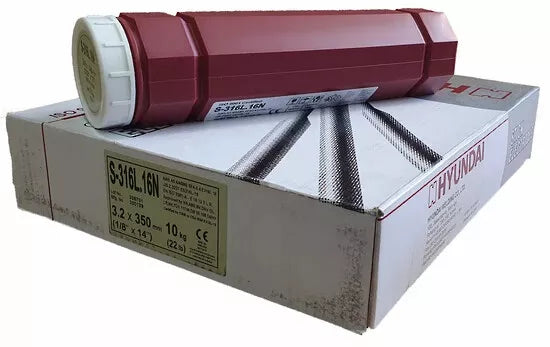

The Hyundai Electrode 316L S/S Marine Grade 3.2mm (Hyundai S-316L.16N Stainless Steel Electrode) is a premium-grade electrode designed specifically for welding low-carbon 18% Cr-12% Ni-2% Mo 316L stainless steel. This electrode ensures robust weld integrity, high corrosion resistance, and excellent mechanical performance, making it ideal for marine and industrial applications.

Key Features & Benefits

• Superior Usability and Weldability: The S-316L.16N electrode is a lime-titania type electrode known for smooth weldability and user-friendly operation.
• Austenitic Structure with Ferrite: The all-weld metal possesses an austenitic structure with ferrite for enhanced crack resistance, increasing durability and reliability in demanding environments.
• Excellent Corrosion Resistance: The low carbon content and Mo content enhance resistance to intergranular and inter-crystalline corrosion in as-welded conditions, outperforming S-316.16N.
• High Heat Resistance: The Mo addition also improves heat resistance, ensuring the electrode withstands high temperatures without compromising strength or integrity.

Usage Instructions

To maximize performance:

• Weaving Width: Limit weaving to two and a half times the electrode’s diameter.
• Preparation: Clean all oil and dust from the groove before welding.
• Drying: Preheat the electrodes at 350°C (662°F) for 60 minutes before use.

Welding Positions

This electrode is versatile and can be used in the following welding positions:

• Flat (F), Horizontal Vertical (HV), Vertical Upward (VU), and Overhead (OH)

Current Type

• Can be used with both AC or DC+.

Typical Chemical Composition (All Weld Metal %)

• Carbon (C): 0.02%
• Silicon (Si): 0.73%
• Manganese (Mn): 1.33%
• Phosphorus (P): 0.029%
• Sulfur (S): 0.016%
• Chromium (Cr): 19.4%
• Nickel (Ni): 11.7%
• Molybdenum (Mo): 2.4%

Typical Mechanical Properties (All Weld Metal)

• Tensile Strength (TS): 557 N/mm² (80,900 lbs/in²)
• Elongation (EL): 45.2%

Approvals

This product is approved by renowned classification societies, including KR, ABS, LR, BV, DNV, NK, and CWB.

This Hyundai Electrode 316L S/S Marine Grade 3.2mm is sold per kilogram, and the minimum purchasable quantity aligns with the pack quantity shown.
