HYPERTHERM POWERMAX 30XP HAND SYSTEM W/ 4.5MT TORCH

No reviews
Part No: 088083

The Powermax30® XP: Your Top Choice for Portable Plasma Cutting

Looking for a high-performance plasma-cutting system that's portable and versatile? Look no further than the Powermax30® XP. Our two-in-one design offers both high-power capacity for thick metal cutting and the precision of FineCut® consumables for intricate, thin metal work. This 30 amp system operates with air or nitrogen and handles electrically conductive metals like mild steel, stainless steel, and aluminum.

Ease of Use

Get cutting quickly and effortlessly with everything included in the package. Its compact size and lightweight build make the Powermax30 XP your on-the-go cutting companion. Simply plug it into any 120 or 240 V power source, thanks to the convenient Auto-Voltage™ technology and provided plug adapters.

Exceptional Performance in a Compact Package

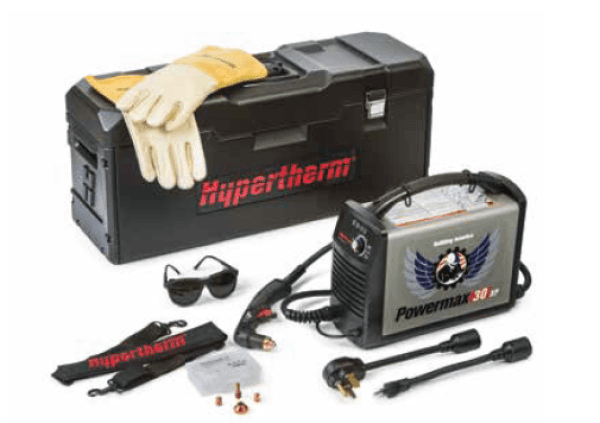

Experience fast cutting speeds and impeccable cut quality, reducing the need for additional finishing work. Designed to withstand heavy-duty usage even in the most demanding environments. Included in the System:

  • Power supply
  • 4.5 m (15') Duramax LT hand torch with standard consumables
  • 4.5 m (15') work clamp
  • 240 V/20 A plug with adapters for 120 V/15 A and 240 V/20 A circuits (CSA models)
  • Operator and safety manuals
  • Consumable kit with 1 standard nozzle, 1 electrode, 1 FineCut nozzle, and 1 FineCut deflector
  • Sturdy plastic carry case
  • Convenient carrying strap
  • Complimentary leather gloves
  • Shade 5 glasses

Specifications

  • Recommended Cutting: 10 mm (3/8") at 500 mm/min (20 ipm)
  • Maximum Cutting: 12 mm (1/2") at 250 mm/min (10 ipm)
  • Severance Cutting: 16 mm (5/8") at 125 mm/min (5 ipm)
Input voltages 120-240 V, 1-PH, 50/60 Hz
Input current @ 3.8 kW 120-240 V, 1-PH, 25-18.8 A
Output current 15-30 A
Rated output voltage 125 VDC
Duty cycle @ 40°C (104°F) 35%, 240 V
20%, 120 V
Open circuit voltage (OCV) 256 VDC
Dimensions with handles 356 mm (14.0") D; 168 mm (6.6") W; 305 mm (12.0") H
Weight w/ 4,5 m (15') torch 9.5 kg (21 lbs)
Gas Supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet
flow rate / pressure
113.3 l/min (4 scfm) at 5.5 bar (80 psi)
Input power cable length 3 m (10')
Power supply type Inverter - IGBT
Engine drive requirement 5.5 kW for full 30 A output
Certifications CSA-certified for use in the Americas and Asia, except China
CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
CCC for use in China.
Warranty Power supplies have a 3-year warranty and torches a 1-year warranty.

Choose the Powermax30® XP for unbeatable portability and performance in plasma cutting. Your solution for precise, efficient metalwork is just a click away!

Download: Powermax30 XP Operator Manual (Revision 4)

    Hypertherm Duramax LT Torches

    The Duramax® LT hand torch is designed to withstand impact and heat. The Duramax LT torch is designed for the Powermax30® XP plasma system.

    To check for complete spare parts & consumables click here: POWERMAX 30XP - DURAMAX 30/LT (T45V) TORCH BREAKDOWNS

    To check for our Hypertherm plasma torches click here: Torches - Plasma

     As the premier provider of top-tier industrial plasma cutters and portable gouging machines in Australia, QWS offers its exceptional products and services across the entire nation. Our reach extends to key regions, including Brisbane, Gold Coast, Sunshine Coast, Toowoomba, Bundaberg, Rockhampton, Mackay, Townsville, Cairns, Hervey Bay, Gladstone, and many more.
