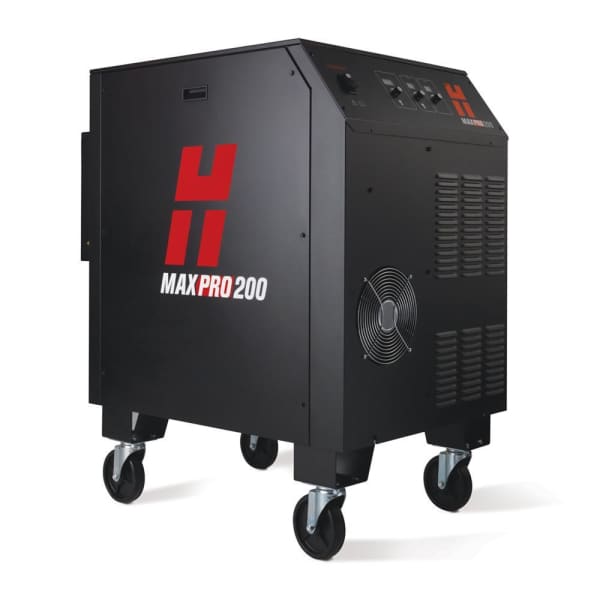

HYPERTHERM MAX200 POWER SUPPLY ONLY 415V

The MAXPRO200® LongLife® plasma cutting system is engineered for heavy-duty, high capacity automated and handheld cutting and gouging applications. The easy-to-use system operates with either air, oxygen, or nitrogen plasma gas, and combines fast cutting speeds and quick process changes to maximize productivity.

Features:
Virtually dross-free cutting capacity - mild steel 20 mm (3/4")
Production pierce capacity - mild steel 32 mm (1 1/4")
Severance* - mild steel 75 mm (3")
Bevel - 200 amp consumables support 45° bevel capability

Specifications:
Input Voltages:
200/208 VAC, 3-PH, 50 Hz, 108/104 A
220 VAC, 3-PH, 50 – 60 Hz, 98 A
240 VAC, 3-PH, 60 Hz, 90 A
380 VAC, 3-PH, 50 Hz, 57 A
400 VAC, CE, 3-PH, 50 – 60 Hz, 54 A
415 VAC, CE, 3-PH, 50 Hz, 52 A
440 VAC, 3-PH, 50 – 60 Hz, 49 A
480 VAC, 3-PH, 60 Hz, 45 A
600 VAC, 3-PH, 60 Hz, 36 A
Output Voltage: 50–165V DC
Max Output Current (A): 200
Duty Cycle Rating: 100% @ 33kW (40°C)
Operating Temperature (C): -10°Cto 40°
Supply Gas Pressure (Bar): 6.2 +/- 0.7
Dimensions (mm) : 1020H x 690W x 105D
Weight (kg): 335
