MIG TORCH BINZEL MB36 3MTR EVO PRO 50 DEG

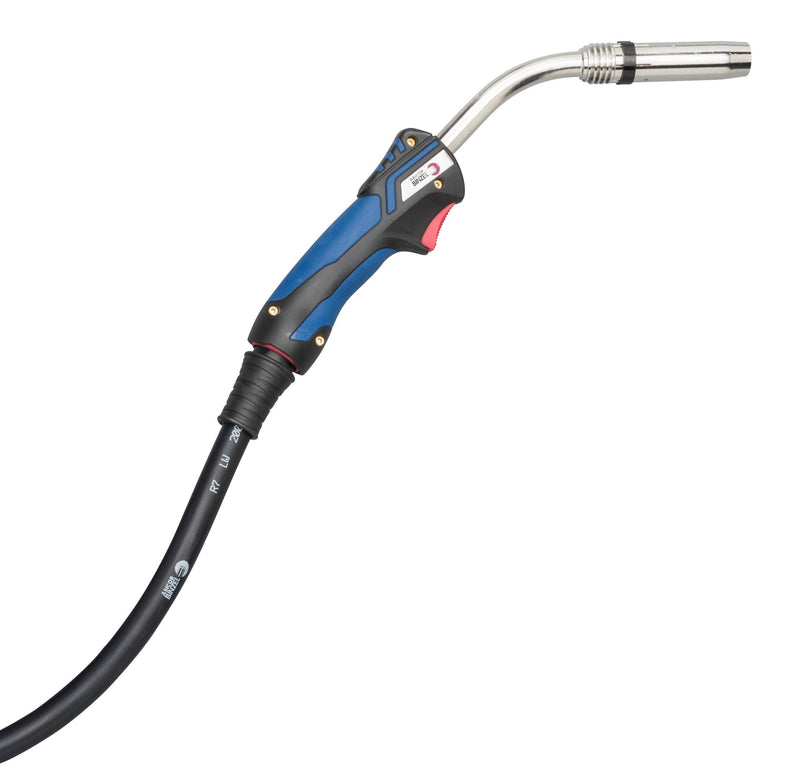

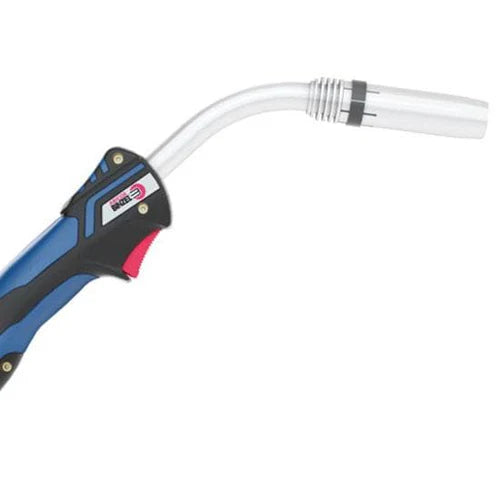

Binzel MB EVO PRO 36 MIG Torch – 3m, Air-Cooled

The Binzel MB EVO PRO 36 is a 320 amp air-cooled MIG/MAG torch with a Euro (KZ-2) central connector, built for daily fabrication and production welding with 0.8–1.2mm wire. It's rated at 320A on CO2 and 290A on mixed gases at a 60% duty cycle, with technical data stated to EN 60974-7, the torch standard in the 60974 welding equipment series. This 3m version (part no. 014.0529.1) suits bench and bay work where a short, light lead gives the best wire feeding and the least drag.

What separates the EVO PRO from a standard MB 36 is the weight and the handle. Binzel's BIKOX® LW cable assembly is up to 34% lighter than the conventional cable, and the two-component handle has a tapered profile, repositioned trigger and ball-joint cable support so the torch stays balanced in every position. The internal geometry is designed to keep the grip cooler under load without giving up mechanical strength. Less weight on the wrist over a shift means steadier travel and more consistent welds, particularly out of position.

It runs the proven MB 36 wear parts (tips, tip holders, gas diffusers and nozzles), so if you already stock MB 36 consumables, nothing changes.

Key features

• 320A CO2 / 290A mixed gas at 60% duty cycle
• BIKOX® LW cable assembly, up to 34% lighter than standard
• Two-component ergonomic handle with tapered design and optimised trigger position
• Cooler grip thanks to air-cooled internal geometry
• Robust, size-optimised Euro central connector (KZ-2)
• 50° swan neck
• Uses standard Binzel MB 36 wear parts
• Also available in 4m (014.0530.1) and 5m (014.0531.1)

Specifications

Frequently asked questions

What amperage is the Binzel MB EVO PRO 36 rated to?
320A with CO2 and 290A with mixed shielding gases, both at a 60% duty cycle.

What's the difference between the MB 36 and the MB EVO PRO 36?
Same current class and same wear parts. The EVO PRO adds the lighter BIKOX® LW cable (up to 34% weight reduction), a redesigned ergonomic handle and trigger, and a cooler-running grip.

Will it fit my welder?
It has a standard Euro connection, so it fits most Euro-style MIG machines and wire feeders, including Kemppi, Fronius, UNIMIG, CIGWELD, WIA and Lincoln units with a Euro outlet. Check that your machine's output suits a 320A-class torch.

What wire sizes can I run?
0.8mm to 1.2mm. Match the contact tip and liner to your wire size and type (steel liner for solid steel wire, PA/Teflon liner for aluminium and stainless).

Do standard MB 36 consumables fit?
Yes. Contact tips, tip holders, diffusers and nozzles are the standard MB 36 pattern.

Should I choose the 3m, 4m or 5m?
Go for 3m if you're welding close to the machine, as shorter leads feed better, especially with soft wire. Choose 4m or 5m if you need the reach around larger jobs.

Is it suitable for aluminium?
Yes, with a suitable liner and tips. For aluminium, the 3m length is the best choice for reliable feeding.

Which MB EVO PRO torch do I need?
