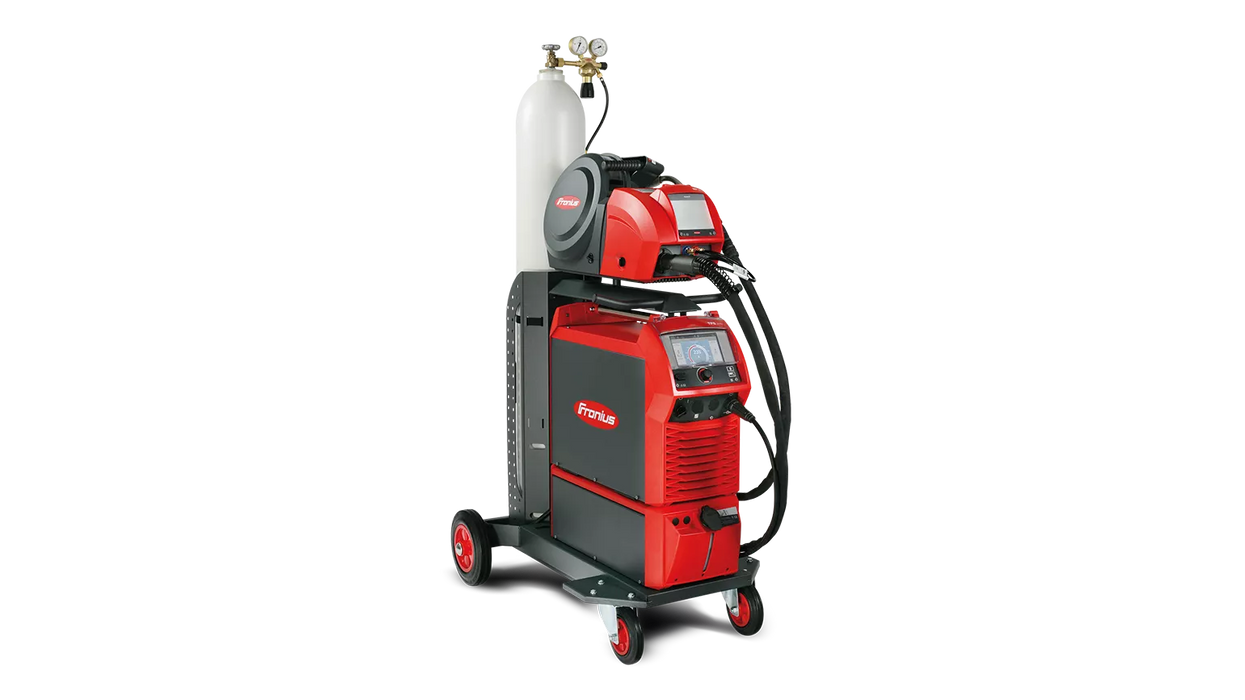

FRONIUS TPS500I WATER COOLED
FRONIUS TPS 500i
Inverter Power Source with Separate Wire Feeder
The Fronius TPS 500i sits at the top of the TPS/i platform below the 600i, delivering up to 500A of fully digitised, microprocessor-controlled output for heavy fabrication and high-duty-cycle industrial production. Like the rest of the full-size TPS/i range, it runs with a separate wire feeder rather than a built-in unit, giving workshops the flexibility to configure and position the system to suit demanding production layouts.
As with other TPS/i base units, the TPS 500i requires a Weld Process to be added before it's ready to weld, with MIG Standard Synergic and MIG Pulse Synergic both available as options depending on the process mix required. It's available in both gas-cooled and water-cooled configurations to match cooling capacity to duty cycle and application.
Key Features
| Feature | Detail |
|---|---|
| Welding processes | MIG Standard Synergic (optional), MIG Pulse Synergic (optional), Syncropulse, TIG DC, Manual (Stick/MMA) electrode |
| Wire feeder | Separate unit for flexible system layout |
| Welding current range | 3–500 A |
| Duty cycle | 500A / 40%, 430A / 60%, 360A / 100% (10 min / 40°C) |
| Mains voltage | 3 x 400V, 50–60Hz |
| Open-circuit voltage | 71 V |
| Dimensions | 706 x 300 x 510 mm |
| Weight | 38 kg |
| Protection rating | IP23 |
| Cooling | Gas-cooled or water-cooled |
| Control system | Fully digitised, microprocessor-controlled with continuous process monitoring and correction |
| Design | Modular architecture for straightforward system expansion |
Gas-Cooled & Water-Cooled Options Available
The TPS 500i is available in both gas-cooled and water-cooled configurations. Water cooling is the better fit for high duty-cycle production, thicker material sections and extended continuous welds, where a gas-cooled torch would otherwise be limited by heat build-up. Talk to the QWS team about which cooling configuration and full package (wire feeder, torch, hose pack and Weld Process license) best suits your application.
Why Choose the TPS 500i?
High output for demanding production. At up to 500A with a duty cycle built for sustained industrial use, the TPS 500i is suited to heavy fabrication, structural steel and high-throughput MIG/MAG production.
Modular by design. A separate wire feeder and expandable system architecture allow the TPS 500i to be configured and positioned to suit the workshop, and scaled with additional processes or hardware options as needs change.
Cooling to match the duty cycle. Available gas-cooled or water-cooled, so the right cooling setup can be specified against actual production demands rather than compromising on one configuration.
Process flexibility. With Standard Synergic and Pulse Synergic available as Weld Process options, plus Syncropulse, TIG DC and manual electrode, the TPS 500i can be configured to cover a broad range of welding tasks on the one platform.
Frequently Asked Questions
What welding processes does the TPS 500i support? MIG Standard Synergic and MIG Pulse Synergic are available as Weld Process options, alongside Syncropulse, TIG DC and manual (stick/MMA) electrode.
Is the TPS 500i available water-cooled? Yes — it's available in both gas-cooled and water-cooled configurations to suit duty cycle and application.
What's the duty cycle of the TPS 500i? 40% at 500A, rising to 60% at 430A and 100% at 360A (measured over 10 minutes at 40°C ambient).
Does the TPS 500i use a built-in or separate wire feeder? A separate wire feeder is used, in line with the rest of the full-size TPS/i range, giving more flexibility in system layout than the built-in feeder on the TPS/i Compact models.
Does the TPS 500i come ready to weld out of the box? No — like other TPS/i base units, it requires a Weld Process to be added, along with a wire feed unit, drive rollers and torch to form a complete, ready-to-weld package.
How does the TPS 500i compare to the TPS 400i? The TPS 500i offers higher maximum output (500A vs 400A) and a higher-rated duty cycle across the board, suiting heavier production applications than the 400i, while sharing the same modular platform, process options and cooling configurations.
