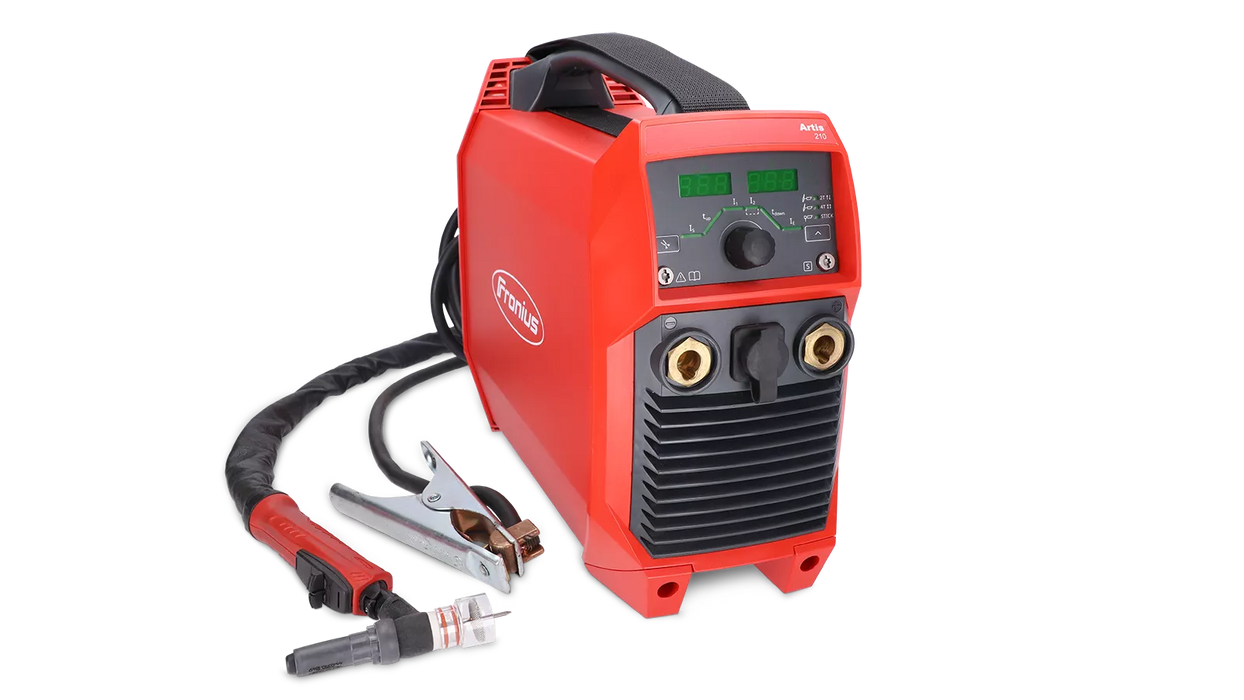

FRONIUS ARTIS 210 G/F DC INVERTER GAS COOLED
FRONIUS ARTIS 210
DC Package, Gas Cooled — Inverter Power Source
Part number: 4.075.272 3-year warranty when registered
The Fronius Artis 210 is a compact, mobile TIG DC and MMA inverter built for tradespeople and workshops who need professional-grade TIG control without stepping up to a larger industrial system. This DC Package is gas cooled, running TIG DC and manual (stick) electrode from the one lightweight, robust power source — with the same core settings otherwise reserved for larger professional TIG systems.
Fronius has focused the Artis design on making the most efficient use of available input voltage, which makes the 210 not just energy-efficient but reliable and productive on-site or in the workshop.
Key Features
| Feature | Detail |
|---|---|
| Welding processes | TIG DC, Manual (Stick/MMA) electrode |
| Duty cycle | 40% max. at 210A (40°C ambient) — weld 4 minutes continuously without a break |
| Cooling | Gas cooled |
| Operating concept | Rotary and push button control with clear, illuminated function display — over 10 parameters selectable directly without menu diving |
| Mains protection | 400V protective circuit prevents damage from excessive supply voltage |
| Efficiency | Time shutdown/standby mode to minimise energy use when idle |
| Housing | Robust functional carrier design, tested well beyond standard mechanical stress ratings |
| Warranty | 3 years when the machine is registered |
TIG Welding Functions
- Gas pre-flow and post-flow — automatically calculates optimal post-flow time based on set welding current, protecting the weld and tungsten
- Automatic shutdown — welding current switches off automatically after a set change in arc length once welding is complete
- TAC function — pulses the weld pool to speed up tacking by up to 50%, with minimal to no temper colours at the tack point
- TIG Pulse — 1–990 Hz pulse range, suited to thin sheet and tight-space welding
- Touch high-frequency ignition — for torches without a trigger, arc ignites precisely on contact after a set delay
- Spot and stitch welding — even-interval spot welding with adjustable stitch pause time
MMA Welding Functions
- Electrode pulse welding — improves weld properties in tight spaces and gap-bridging ability, ideal for vertical-up seams
- HotStart — brief current boost on ignition for easier electrode starts
- Cellulose electrode capability — tuned for the higher open-circuit voltage cellulose electrodes require
- Arc-force dynamic — prevents electrode sticking on basic electrodes at low current by briefly boosting current
- Anti-stick — interrupts welding current if the electrode sticks, preventing annealing and weld faults
- TrackingArc — low-amperage "flashlight" arc for finding the exact restart position after an electrode change, reducing under-filled craters and rework
Why Choose the Artis 210?
Professional TIG control in a compact package. The Artis brings settings normally found only on larger TIG systems into a genuinely portable machine, without compromising on control.
Easy to run, hard to wear out. The illuminated rotary/push-button interface keeps setup simple, while the robust functional carrier housing is built to handle knocks and mechanical stress well beyond standard ratings.
Efficient by design. Standby shutdown and an efficiency-focused power module mean the Artis draws less from the grid while still delivering full output when it's needed.
Backed for the long run. A 3-year warranty is available simply by registering the machine.
Frequently Asked Questions
What welding processes does the Artis 210 support? This DC Package covers TIG DC and manual (stick/MMA) electrode welding.
Is the Artis 210 gas cooled or water cooled? This package is gas cooled. Water cooling is available on the larger Artis 300.
What is the duty cycle of the Artis 210? 40% at 210A and 40°C ambient temperature — meaning 4 minutes of continuous welding before a rest period is required.
Does the Artis 210 come with a warranty? Yes — a 3-year warranty applies when the machine is registered.
What MMA functions does the Artis 210 include? HotStart, electrode pulse welding, cellulose electrode capability, arc-force dynamic, anti-stick, and TrackingArc for easy weld restarts.
What TIG functions does the Artis 210 include? Automatic gas pre/post-flow, automatic shutdown, TAC tacking function, TIG Pulse (1–990 Hz), touch HF ignition, and spot/stitch welding modes.
