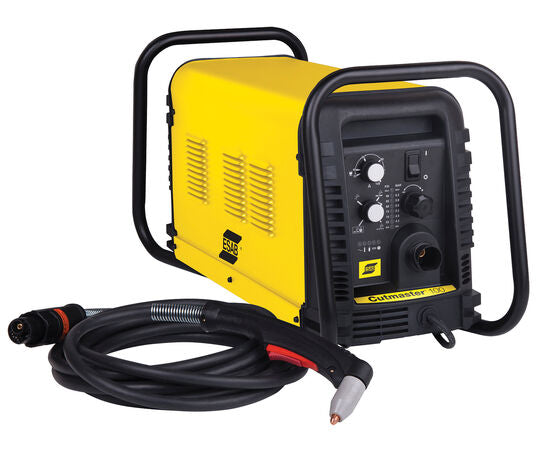

ESAB CUTMASTER 100 (35MM) W 6.1M SL100 TORCH, 20-100A@40%, 4

The ESAB Cutmaster 100 is a high-performance plasma cutting machine designed for professional and industrial applications. It provides exceptional cutting capabilities with precise control, making it suitable for heavy-duty cutting tasks. Below is a detailed breakdown of its key features:

Key Specifications:

• Model: Cutmaster 100 (35MM)
• Torch Type: 6.1-meter SL100 Torch
• Cutting Capacity:
  • Recommended Cutting Thickness: 35mm (1-3/8 inches)
  • Maximum Cutting Capacity: Up to 40mm (1-1/2 inches) for mild steel
  • Severance Cut: 45mm (1-3/4 inches)
• Amperage Range: 20A to 100A
• Duty Cycle:
  • 100A @ 40% duty cycle (optimal for intermittent heavy cutting tasks)
  • 80A @ 60% duty cycle
  • 60A @ 100% duty cycle (for extended cutting times)

Torch & Consumables:

• Torch Model: SL100, 6.1 meters (20 feet) in length, providing flexibility for various cutting applications
• Drag-Cutting Capability: Allows for precise and efficient cutting while maintaining close contact with the workpiece
• Air-Cooled Design: Keeps the torch cool during extended use, ensuring longer lifespan and better performance
• Consumable Parts: Easy-to-replace nozzles and electrodes, designed for prolonged usage and reduced downtime

Power Requirements:

• Input Voltage Options:
  • 400V, 3-Phase (industrial power supply)
  • Multiple power configurations (depending on the country of usage)
• Power Output:
  • 20A - 100A Adjustable Output: Allows for fine control of cutting speeds and thickness adjustments.

Performance Features:

• High Cutting Speeds: Delivers fast, clean cuts with minimal dross on various materials, including mild steel, stainless steel, and aluminum.
• Pilot Arc Start: Ensures smooth ignition even on painted or rusty surfaces, reducing the need for pre-cleaning.
• Auto-Refire Technology: Automatically controls the pilot arc for cutting expanded metal or perforated sheets, improving operational efficiency.
• Intelligent Cooling System: Extends consumable life and maximizes uptime by automatically managing cooling during the cutting process.

Portability & Design:

• Compact and Lightweight: The machine weighs approximately 28kg, making it easy to move around job sites or within workshops.
• Ergonomic Torch: The SL100 torch is designed for comfortable long-term use with a well-balanced handle and an easy-grip design.

Safety Features:

• Built-in Overheat Protection: Prevents damage to internal components by shutting down the machine when temperatures rise beyond safe levels.
• Pressure-Sensitive Torch: The torch will not fire unless it detects sufficient air pressure, ensuring safe operation.

Applications:

• Heavy-Duty Industrial Cutting: Ideal for cutting thick metals in fabrication shops, manufacturing facilities, shipyards, and construction sites.
• Fieldwork & Maintenance: Its portability makes it suitable for on-site jobs where robust cutting is required.

The ESAB Cutmaster 100 is a powerful and versatile plasma cutting solution, offering precision, speed, and reliability for demanding cutting applications.
