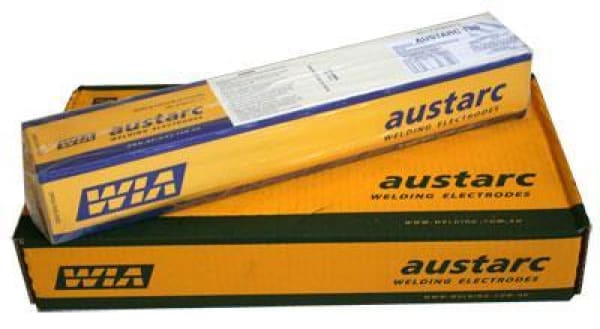

ELECTRODE WIA AUSTARC 13S GP 3.2MM 6013
Volume Discounts for ABN / Account holders -
Availability: Low inventory, stocking up soon!
AUSTARC 13S is the popular “blue and white striped” general purpose electrode for smooth mitre fillet welding applications. It is formulated primarily for fillet welding in all downhand positions. It is ideal for the general purpose and structural welding of sheet and plate steels (galvanized or otherwise) and tubular components, including trailers, duct work, hoppers and storage tanks, etc.
Characteristics on usage:
Has a soft and stable arc and produces flat, uniform fillet welds with ease.
Welding position:
F, H, VU, OH
Current:
AC 45 OCV or DC±
Typical Chemical Composition of all weld metal (%):
- C - 0.7
- Si - .45
- Mn - .55
Typical Mechanical Properties of all weld metal:
- Y.S - 450MPa
- T.S - 520MPa
- EL. - 26%
- CVN-Impact Value - 60Jav@0°C
Size and Recommended Current (Amp.):
- Size mm (in) - 3.2 (1/8)
- Length mm (in) - 380 (15)
- Packet size - 5kg
- Carton Weight - 15kg
- F - 100~130
- AWS Spec - E6013
