ELECTRODE 7016.H LOW HYDROGEN 2.6MM
by Hyundai
Original price
$10.60
-
Original price
$10.60
Original price
$10.60
$53.00 /5kg Pkt
$10.60 /
kg
$10.60
$10.60
-
$10.60
Current price
$10.60
Excludes GST - GST calculated at checkout
Volume Discounts for ABN / Account holders -
Part No: EHY701626
Availability: 220 In stock, ready to be shipped!

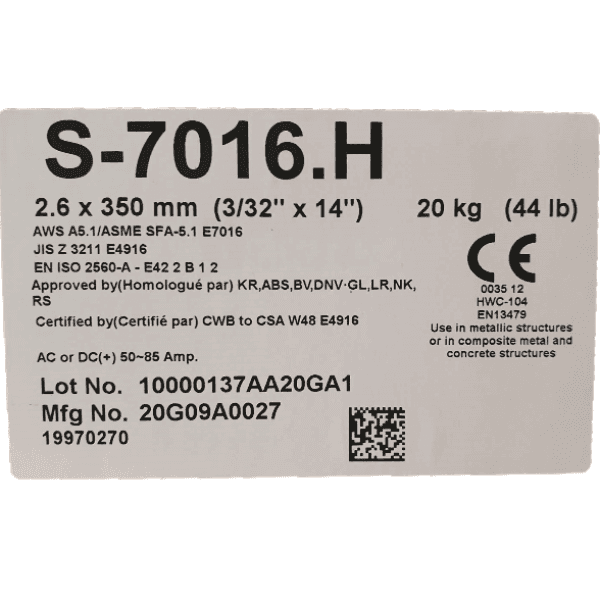

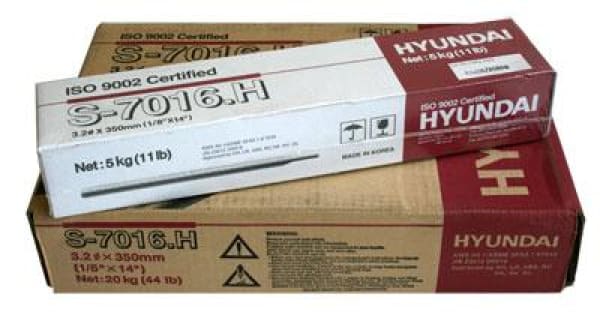

Hyundai S-7016.H Low Hydrogen Electrodes
S-7016.H can be used for welding of high tensile steel, such as bridges, buildings, shipbuilding, high pressure vessels and rolling stock.
Characteristics on usage
C Si Mn P S
.07 .55 1.13 .017 .011
Typical Mechanical Properties of all weld metal
Y.S N/mm2 (lbs/in2) T.S N/mm2 (lbs/in2) EL. (%) Temp. °C (°F) CVN-Impact Value J (ft . lbs)
490 (71,100) 600 (87,100) 30.3 -29 (-20) 80 (59)
Approval
KR, ABS, LR, BV, DNV, GL, NK
This product is priced “per KG”. The minimum quantity available to purchase is shown in the "Pack Qty".
S-7016.H can be used for welding of high tensile steel, such as bridges, buildings, shipbuilding, high pressure vessels and rolling stock.
Characteristics on usage
- Soft stable arc
- Smooth appearance
- No undercut formation
- Good fluidity and removability of slag
- Good mechanical properties
- Excellent crack resistance and X-ray performance
- Dry the electrodes at 300~350°C (572~662°F) for 60 minutes before use.
- Adopt back step method or strike the arc on a small steel plate prepared for this particular purpose to prevent blow hole at the arc starting.
- Use wind screen against strong wind.
- F, HV, VU, OH
- AC or DC±
C Si Mn P S
.07 .55 1.13 .017 .011
Typical Mechanical Properties of all weld metal
Y.S N/mm2 (lbs/in2) T.S N/mm2 (lbs/in2) EL. (%) Temp. °C (°F) CVN-Impact Value J (ft . lbs)
490 (71,100) 600 (87,100) 30.3 -29 (-20) 80 (59)
Approval
KR, ABS, LR, BV, DNV, GL, NK
This product is priced “per KG”. The minimum quantity available to purchase is shown in the "Pack Qty".
