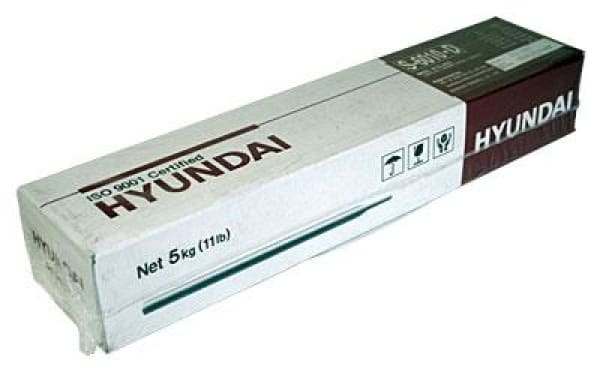

ELECTRODE 6010D CELLULOSE 4.0MM

Hyundai S-6010.D Cellulose Electrodes
S-6010.D can be used for welding of pipes, storage tanks, pressure vessels, cast steel repairs, machines and heavy construction works.

Characteristics on usage

• S-6010.D is a high cellulose type electrode for welding in all positions including vertical-down using DC (+).  S-6010.D exhibits deep penetration and fast freezing.

Notes on usage

• Pay attention not to use currents exceeding the recommended currents.
• As this electrode is prone to absorb moisture, store it with care.


Welding position

• VU, VD

Current

• DC+

Typical Chemical Composition of all weld metal (%)
 C       Si       Mn       P       S
 .10       .17       .42       .015       .017

Typical Mechanical Properties of all weld metal
 Y.S N/mm2 (lbs/in2)       T.S  N/mm2 (lbs/in2)       EL. (%)     Temp.   °C (°F)       CVN-Impact Value  J (ft. lbs)
 447 (64,900)       517 (75,000)       32.3       -29 (-20)       62 (46)

Approval
KR, ABS, LR, BV, DNV, GL, NK, CWB  This product is priced “per KG”. The minimum quantity available to purchase is shown in the "Pack Qty".
