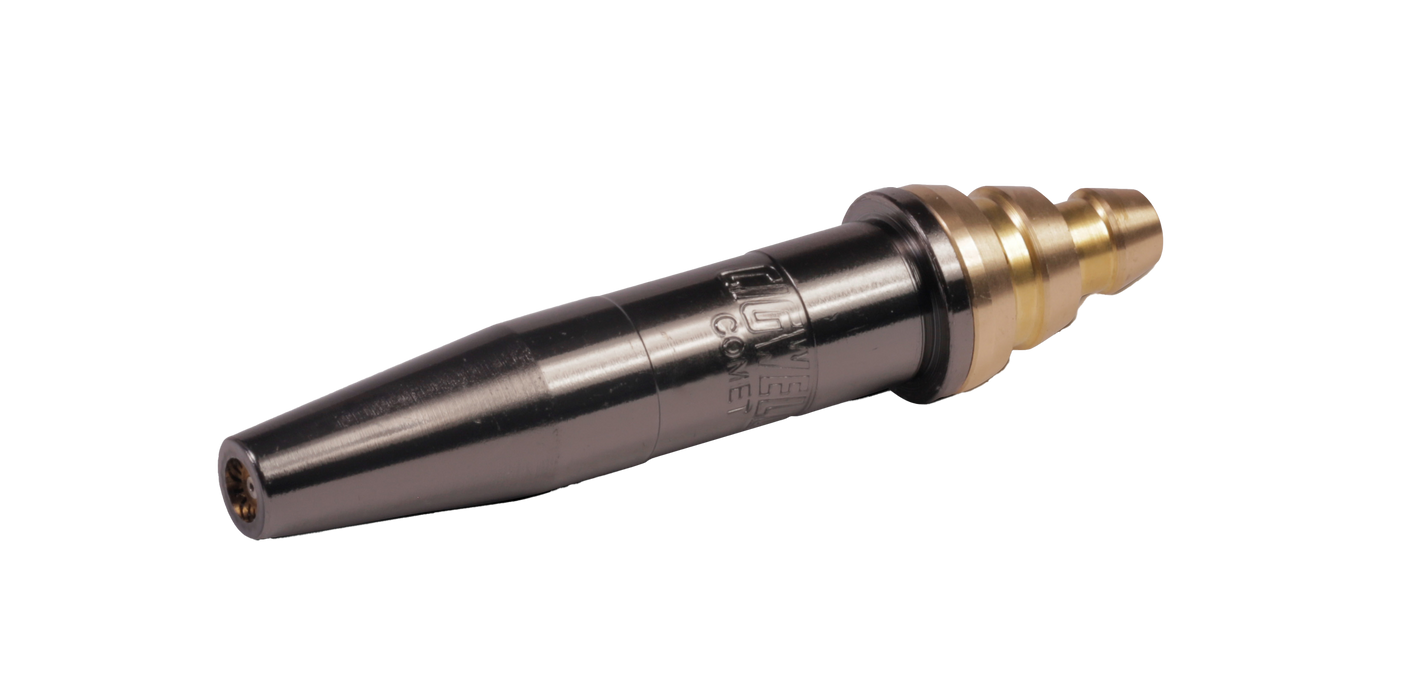

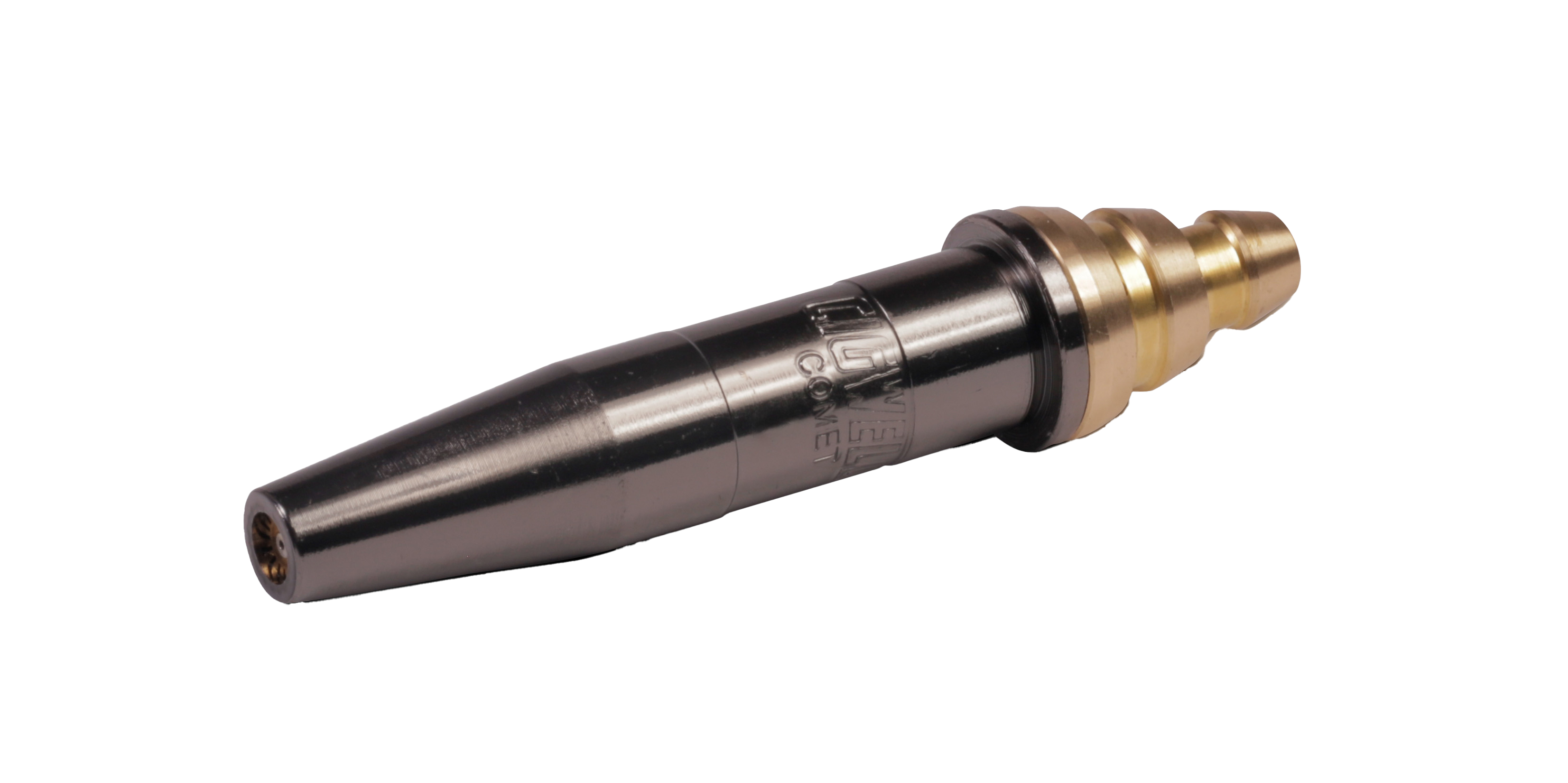

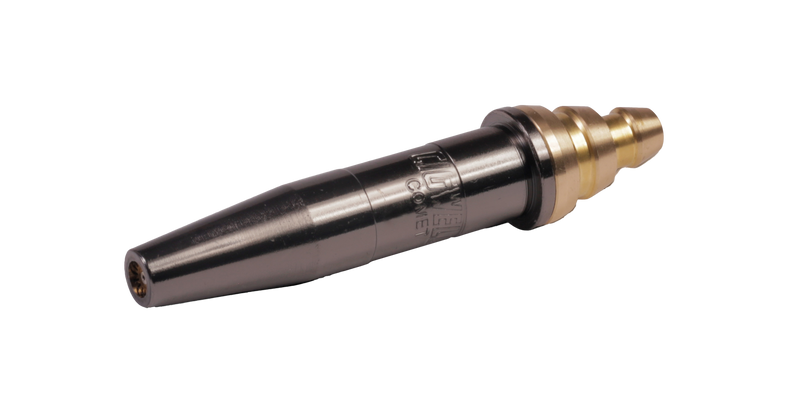

CUTTING TIP TYPE 54 106 H/S LPG 3 SEAT 10-15MM #1

CIGWELD has a long established relationship with Koike Senso in Japan. Koike has developed a world-wide reputation as a leading manufacturer of gas cutting machines. Much of this reputation stems from their ability to manufacture cutting nozzles of the highest quality specifically for use with cutting machines, for example koike high speed cutting nozzles are a divergent type with a stainless steel insert screwed into the tip end of the cutting oxygen port. This maintains a constant high quality cutting performance that also improves nozzle life up to 5 times that of a conventional nozzle.

Features

• Gas Type: Oxy/LPG
• Plate Thickness (mm): 10-15
• Tip No. Size 1
• Cutting Speed (mm): 680-600
• Cutting Pressure (oxy/kPa:): 700
• Pre-heat Pressure (oxy kPa): 200
• Fuel kPa: 20
• Kerf Width (mm): 1.3
