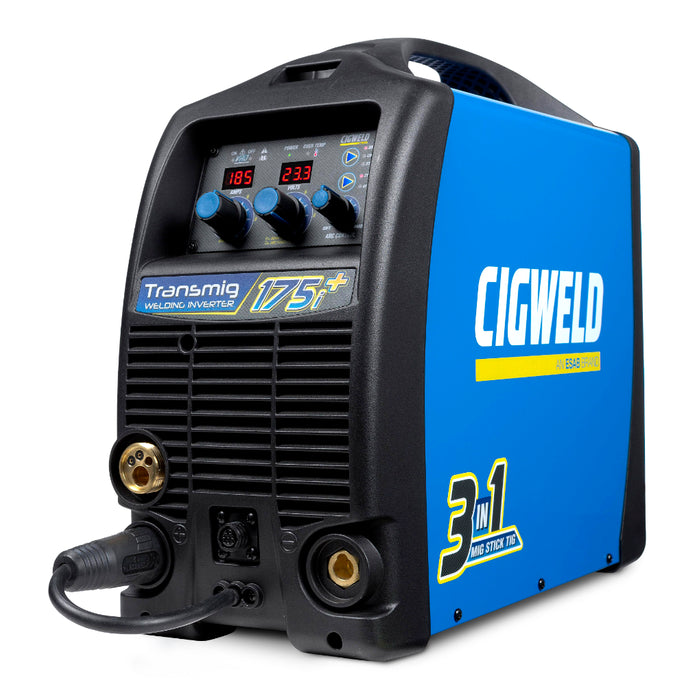

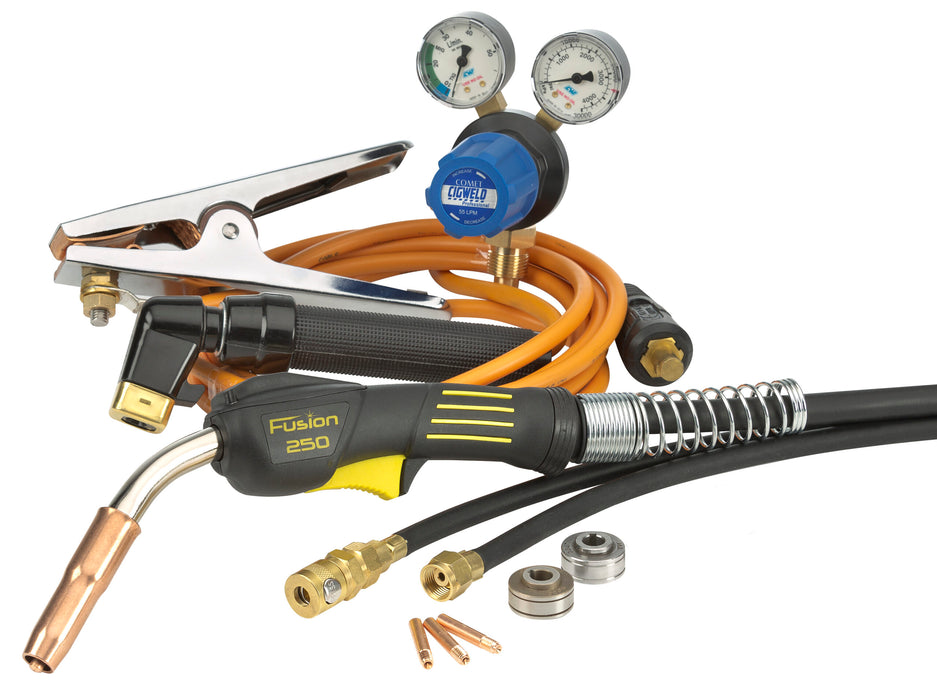

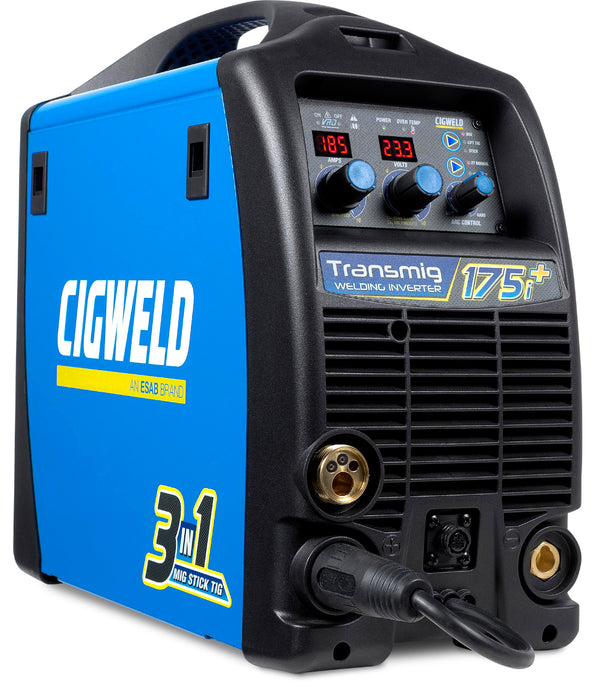

CIGWELD TRANSMIG 175I+ MACHINE PACKAGE

The CIGWELD TRANSMIG 175i+ is a self-contained single phase multiprocess welding inverter that is capable of performing GMAW/FCAW (MIG), MMAW (Stick) and GTAW (Lift TIG) welding processes.

The unit is equipped with an integrated wire feed unit, voltage reduction device (VRD applicable in Stick mode only), digital voltage and amperage meters, and a host of other features in order to fully satisfy the broad operating needs of the modern welding professional.

Specifications

Current Range

• 10 - 185A Mig (GMAW/ FCAW), 10 - 175A Stick, (MMAW), 10 - 175A Tig (GTAW)

Dimensions:

• 0.410mm x 0.210mm x 0.450mm (H x W x D)

Duty Cycle

• MIG (GMAW/ FCAW): 185A @ 20%, 23.3V (40C, 10mins) Stick (MMAW): 175A @ 20%, 27.0V (40C, 10mins) TIG (GTAW): 175A @ 25%, 17.0V (40C, 10mins)

Generator Requirement:

• 9.5kVA (at 0.8 Power Factor) 7.8kW (at 1.0 Power Electric)

Process

• MIG (GMAW/ FCAW). Stick (MMAW), Left Tig (GTAW)

Supply Voltage

• 240V +/- 15%, (15 AMP Plug)

Weight (Packed)

• 23kg

Weight (Power Source)

• 14.6kg

Supply Plug Lead

• 15A
