BINZEL FEX PRO FUME EXTRACTOR POWER SOURCE ONLY
Volume Discounts for ABN / Account holders -
Availability: Low inventory, stocking up soon!

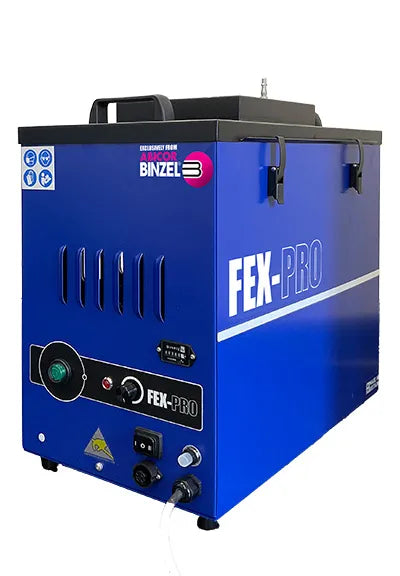

ABICOR BINZEL FEX PRO Mobile Fume Extraction Unit
Capture welding fume right at the torch with the FEX PRO — a compact, portable fume extraction unit purpose-built for TIG and light MIG source-capture applications. With a brushless motor, a cleanable pre-filter, and up to 99.5% dust capture when paired with a BINZEL fume extraction torch, it's a lightweight, low-maintenance solution for single-operator stations where mobility matters.
Why it matters
Effective source capture is the single biggest factor in reducing operator exposure to welding fume — the closer the extraction point sits to the arc, the less fume reaches the breathing zone in the first place. Pairing the FEX PRO with a fume extraction torch (rather than relying on a fixed arm alone) keeps the capture point moving with the welder, which matters for mobile or varied-position TIG and light MIG work. This kind of at-source capture supports compliance with Australia's welding fume exposure limits, which tighten further under the WES-to-WEL transition taking effect 1 December 2026.
Key features
- Purpose-built for TIG and light MIG — single-torch source extraction, not a heavy-duty MIG/MMA solution
- Lightweight, compact form factor — designed for high mobility around the workshop
- Variable flow control — precision suction adjustment on the fly via a control knob
- Brushless motor with automatic start/stop (optional) — reduces motor strain and operating cost
- Quick-service filter — four locking clips let you clean or swap the filter in minutes
- Dust collection bin — safe, contained disposal of captured fume particulate
- Turnkey pairing — designed to work with BINZEL's xFUME PRO (MIG) and xFUME TIG extraction torches
Technical specifications
| Spec | Detail |
|---|---|
| Max airflow | 117 CFM (~200 m³/h) |
| Connections | 1 port, 50mm diameter |
| Max vacuum | 23,000 Pa |
| Filter efficiency | ≥99.99% @ 0.1–0.3µm (HEPA) |
| Filter cleaning | Manual |
| Noise level | ≤60 dB(A) |
| Voltage | 115V, 50/60Hz |
| Motor power | 1.1kW |
| Weight | 20.0kg |
| Dimensions | 573 x 305 x 527mm |
| Automatic start/stop | Optional |
Part numbers
| Item | Part number |
|---|---|
| FEX PRO Fume Extractor (110–230V base) | 601.0381 |
| Main Filter (HEPA) | 601.0382 |
| Pre-Filter Cylinder | 601.0383 |
| Start/Stop Shunt | 601.0041 |
FAQ
Does the FEX PRO need to be paired with a special torch?
It's designed to pair with BINZEL's xFUME PRO (MIG) or xFUME TIG extraction torches for a complete turnkey system and the stated 99.5% capture rate. It can be used with other extraction-capable torches, but capture performance is optimised with the xFUME range.
What's the difference between manual and automatic filter cleaning?
The FEX PRO uses a manually cleaned pre-filter with a quick-release, four-clip housing — it's designed for fast servicing rather than self-cleaning, which keeps the unit lighter and more affordable than self-cleaning cartridge systems.
Is this suitable for MIG welding?
It's rated for TIG and light MIG source extraction on a single torch — for heavier-duty or higher-volume MIG/MMA work, a higher-capacity mobile or fixed extraction system will suit better.
How noisy is it on the shop floor?
At ≤60 dB(A), it's quiet enough for shared workshop environments without requiring hearing protection specifically for the unit.
