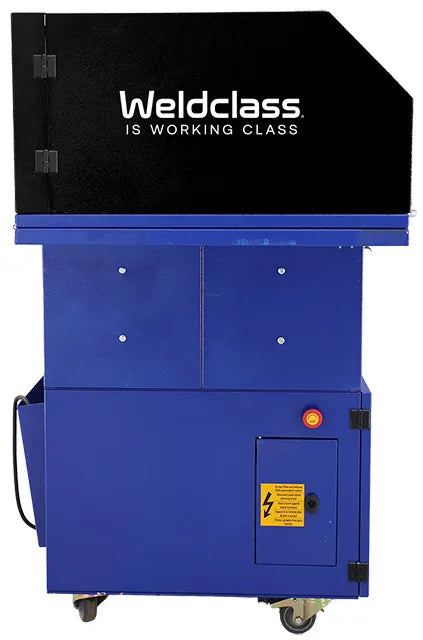

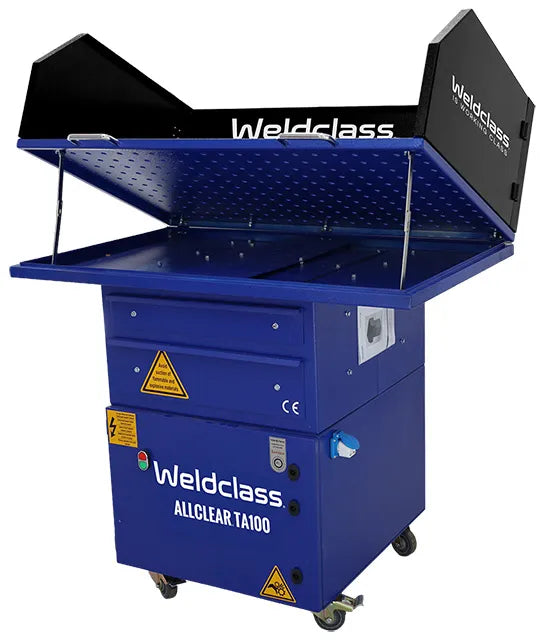

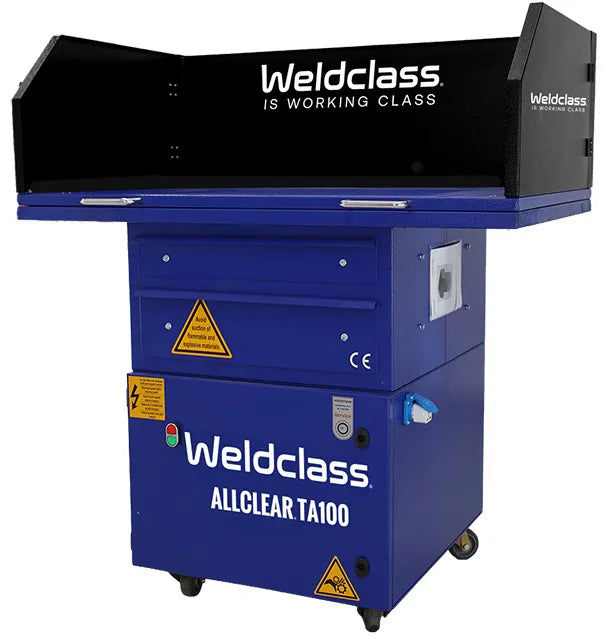

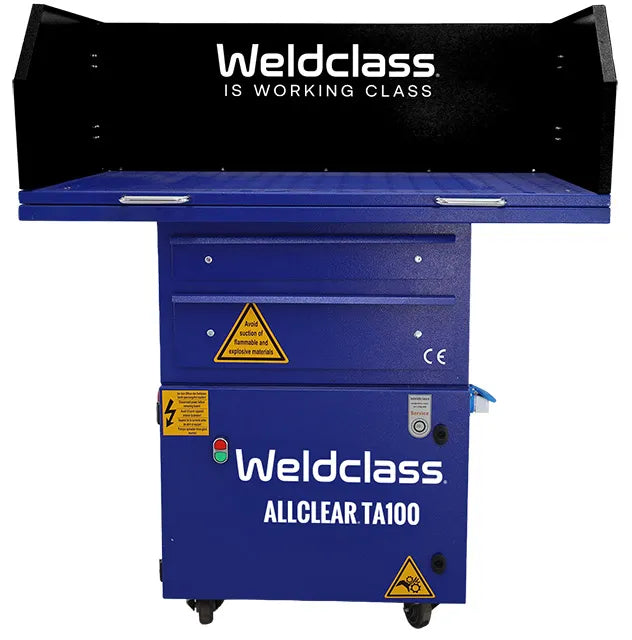

ALLCLEAR® TA100 GRINDING & WELDING TABLE WITH FUME EXTRACTOR
ALLCLEAR® TA100 Fume Extraction Grinding & Welding Table
Compact Downdraft Table for Welding & Grinding Fume Extraction
The ALLCLEAR® TA100 is a compact, mobile downdraft table designed to remove welding and grinding fumes at the source, creating a cleaner and safer work environment. Built for workshops, fabrication shops, and training facilities where space is limited but fume control still matters, the TA100 combines strong extraction performance with an easy-to-move, easy-to-maintain design.

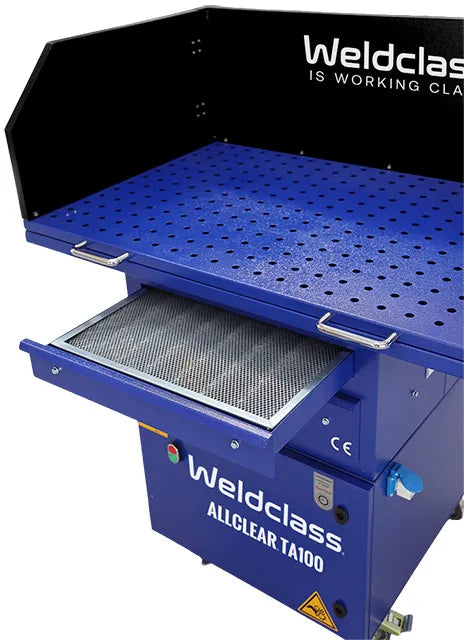

Powered by a 1kW AC motor on standard 230V single-phase power, the TA100 pulls fume-laden air down through the work surface at 7 metres per second, capturing airborne particulates before they spread through the workshop. A three-stage filtration system — G4 prefilter, mesh spark filter, and cassette-type main filter — keeps the unit running efficiently while protecting operators from harmful welding and grinding fume exposure.
Key Features
- 1kW AC motor — runs on standard 230V/240V single-phase power (10A)
- 7m/s airspeed across the table surface for effective fume capture
- Three-stage filtration — G4 prefilter, mesh spark filter, cassette-type main filter
- Rust-proof galvanised steel body for long-term durability
- Mobile design on caster wheels for easy repositioning around the workshop
- Compact footprint — D700 x W1100 x H1255mm, ideal for smaller workspaces
- Up to 3,000m³/hr airflow
- Well suited to education, training, and light industrial use
Specifications
| Spec | Detail |
|---|---|
| Motor | 1kW AC |
| Power supply | ~230V, 10A, single phase |
| Airflow | Up to 3,000m³/hr |
| Air velocity | 7m/s at work surface |
| Filtration | G4 prefilter + mesh spark filter + cassette main filter |
| Dimensions | D700 x W1100 x H1255mm |
| Body | Rust-proof galvanised steel |
| Mobility | Caster wheels |
| Part No. | 91100TA1 (table), 91990117 (replacement box filter F9) |
Best Suited For
The TA100 is designed for welding and light grinding work. It is not recommended for heavier grinding, cutting, plasma or oxy-fuel cutting, or gouging — for these higher-spark, higher-dust applications, the ALLCLEAR® TA400 heavy-duty downdraft table is the better choice. The TA100 is also not suitable for extracting aluminium dust, oil mist, gases, or water vapour.
Frequently Asked Questions
What is the ALLCLEAR TA100 used for? The ALLCLEAR TA100 is a mobile downdraft table used to extract and filter welding fumes and light grinding dust directly at the source, protecting operators and keeping the surrounding workshop air cleaner.
What power supply does the TA100 need? The TA100 runs on a standard 230V single-phase power supply at 10A, making it easy to plug into most workshop power outlets without special wiring.
Is the ALLCLEAR TA100 suitable for heavy grinding or cutting? No. The TA100 is designed for welding and light grinding only. For heavier grinding, plasma cutting, oxy-fuel cutting, or gouging, the ALLCLEAR TA400 heavy-duty downdraft table is recommended instead.
Can the TA100 extract aluminium dust? No. The TA100 should not be used to extract aluminium dust, oil mist, gases, or water vapour, as these can damage the filter or create a fire/explosion risk.
What filters does the ALLCLEAR TA100 use? The TA100 uses a three-stage filtration system: a G4 prefilter, a mesh spark filter, and a cassette-type main filter. Replacement box filters (Part No. 91990117) are available.
Is the TA100 mobile? Yes. The TA100 has a rust-proof galvanised steel body mounted on caster wheels, allowing it to be easily moved and repositioned around the workshop.
