ALFI P-MAX FAN ONLY - TURBO/2100M3/HR FIO/1.1 KW/3 PHASE
PMax turbo fan P-032 – 1.1kW | 3 Phase | 2100m³/hr FIO

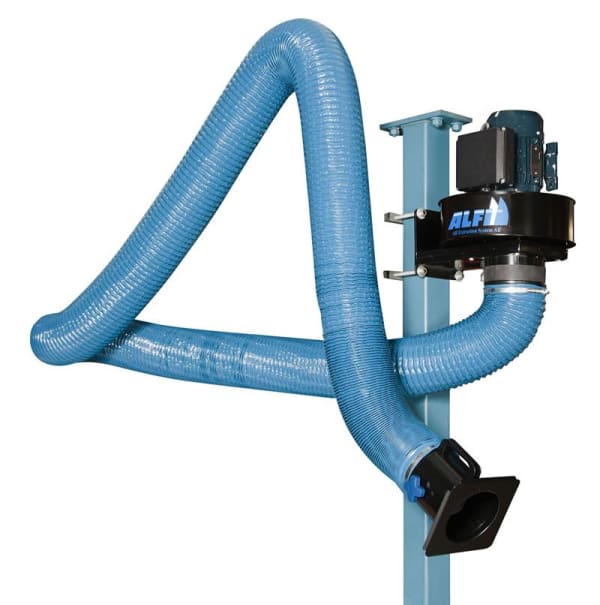

The P-Max fan is designed for extracting smoke, gas and lighter dust, and is ideal for the safe removal of welding fumes (local exhaust ventilation). It is designed to fit directly onto the wall bracket of the Plymoth ALFI extraction arms, or together with a mounting bracket.
The versatile Plymoth ALFI range has a wide variety of fans, retractable arm lengths and configurations to meet your needs, with filtered, mobile and wall mounted units that easily fit into all workshop layouts (eg one fan with multiple extraction arms). The extraction arms retract out of the way when not in use, saving space and installation costs. But most importantly, extracting fumes at the source means cleaner air at work which is safer for all staff.
What's Included

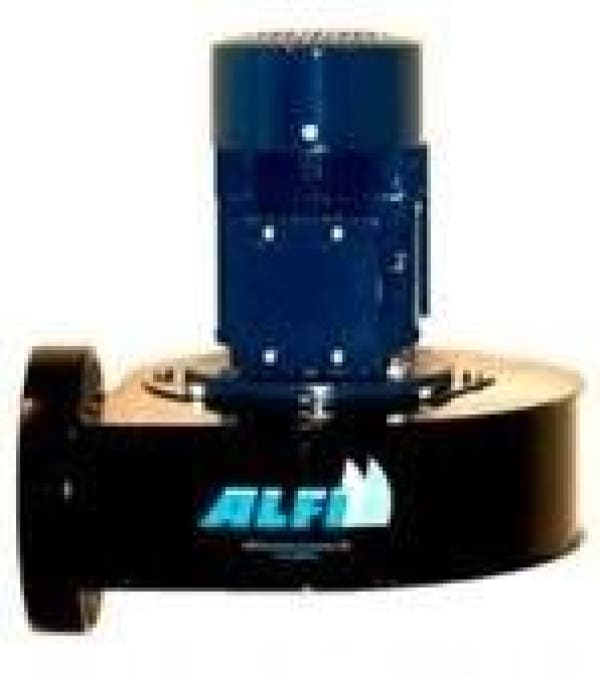

P-Max fan, fan case and motor
Outlet is round with a diameter of 200 mm
Plug and lead not included
Note: does not include Plymoth ALFI extraction arms. These must be purchased separately
Specifications
Motor power: | 1.1kW, 3 Phase |
Air movement: | 2100m³/h, free blowing |
Input current: | 240V, 50 Hz |
Packaged weight: | 18kg |
Packaged dimensions L x W x H: |
420 x 430 x 475mm |
Location: | Wall mounted |
Typical Environments
Workers requiring at-source fume extraction: welders; schools; workshops; hazardous and other specialised environments including welding, grinding, soldering, food processing, chemicals; vehicle exhaust emissions.
