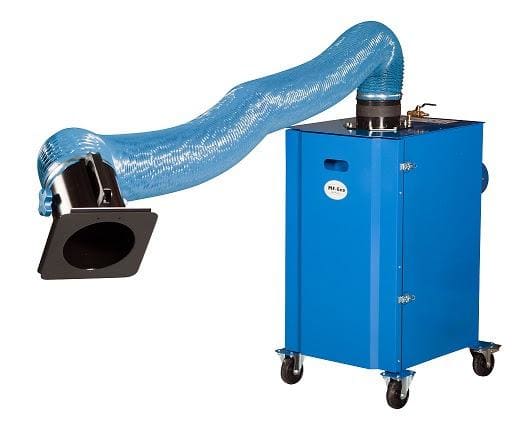

ALFI FUME MF ECO MOBILE FILTERED EXTRACTION UNIT 240V
Plymoth MF-Eco JetPulse Mobile Filter, Single Phase
Get mobile, self-cleaning fume filtration without needing 3-phase power on site. The MF-Eco JetPulse (single-phase) is the same robust, wheel-mounted extraction unit as the 3-phase MF-Eco — just built to run on standard 240V single-phase supply, making it the practical choice for smaller workshops or sites without 3-phase power.
Why it matters
Not every workshop has 3-phase power available at every point of use — and that shouldn't be a barrier to proper local exhaust ventilation (LEV). The single-phase MF-Eco delivers the same 99.9%+ filter separation efficiency and mobility as its 3-phase counterpart, so smaller operations can still meet effective fume capture standards as Australia's WES-to-WEL transition tightens exposure limits from 1 December 2026.
Key features
- Mechanical filtering — cartridge filter with over 99.9% separation efficiency
- Self-cleaning JetPulse system — built-in compressed air cleaning (requires a compressed air supply on site)
- Fully mobile — 4 smooth-running wheels, 2 with brakes, plus ergonomic handles for moving between workstations
- Single-phase power — runs on standard 240V supply, no 3-phase infrastructure needed
- Shared-unit friendly — one unit can service multiple workstations across a workshop
What's included
- Filtered extraction unit and handles
- Built-in compressed air filter cleaning arrangement and valve
- New cartridge filter
- Dust collection tray
- 4m electrical cable with 15A Australian plug
What you'll still need
A flexi table filter extractor arm with 360° swivel mounting bracket is required to complete the system:
| Part | Description |
|---|---|
| P-002 (P-168) | Ø160mm, 2m |
| P-003 (P-169) | Ø160mm, 3m |
Optional: P-086 holder for 2 flexi arms (Ø160mm, max 3m); P-544 HEPA filter (23m²) for higher-efficiency filtration.
Technical specifications
| Spec | Detail |
|---|---|
| SKU | P-540 |
| Motor power | 0.75kW |
| Power supply | 240V, single-phase, 50Hz |
| Extraction flow rate | 1,200 m³/h |
| Arm swivel | 360° |
| Arm radius | 3m |
| Filter efficiency | 99% |
| Noise level | 70 dBA |
| Assembled weight | 80kg |
| Assembled dimensions | 880 x 520 x 980mm |
Replacement parts
P-541 — Replacement filter cartridge
Typical environments
Welding and woodwork workshops, schools, service and repair work.
FAQ
What's the difference between this and the P-543?
The P-540 and P-543 are the same unit — the P-540 runs on single-phase 240V power, while the P-543 requires 3-phase 415V. Choose based on what's available at your intended location.
Does this come with an extraction arm?
No — select a compatible flexi table arm (P-002/P-168 for 2m, or P-003/P-169 for 3m) with its 360° swivel bracket separately.
Does the self-cleaning function need anything extra?
Yes — the JetPulse system runs on compressed air, so a compressed air supply needs to be available at the unit's location.
Can it run more than one extraction arm?
Yes — the optional P-086 holder fits two flexi arms (up to 3m each) to a single unit, useful for covering two nearby workstations.
