300MM EXTRACTION FAN SET WITH VENTILATOR AND DUCT

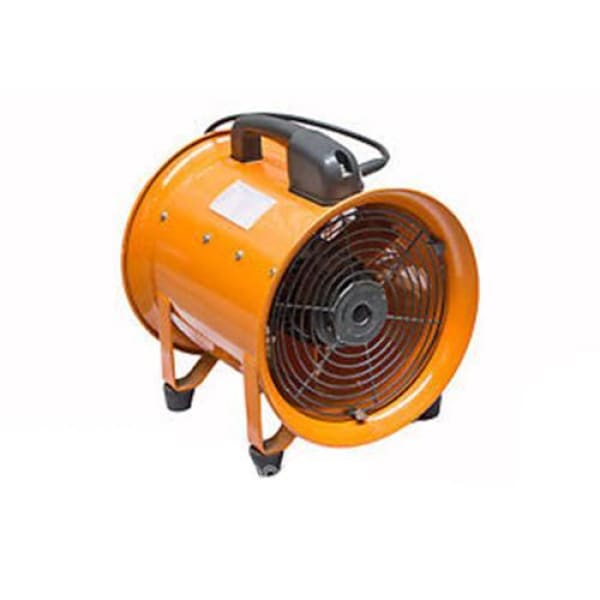

ITM 300mm Portable Ventilator Set
A compact, portable ventilator for smaller workshops and confined spaces — the ITM 300mm set includes both the ventilator and 5m of expandable ducting, ready to deploy for either extracting fume and dust or blowing fresh air in. With a 550W motor and specially designed axial propeller, it's a lighter, more affordable alternative to ITM's larger 400mm–600mm ventilators for smaller-scale ventilation needs.
Why it matters
Not every space needs a large-volume ventilator — a smaller workshop, storeroom, or confined area often just needs reliable air movement without the footprint or cost of a bigger unit. The TPV300SET fills that gap, giving you general dilution ventilation or confined-space air exchange in a portable, easy-to-position package.
Key features
- Set includes ventilator and 5m expandable ducting — ready to use out of the box
- Dual-direction airflow — suitable for fume/dust extraction or blowing fresh air in
- Large-capacity motor for its size — 550W drives a strong flow rate for a compact unit
- Specially designed axial propeller — engineered for high static pressure and efficient airflow
- Portable — light enough to reposition easily between areas
Technical specifications
| Spec | Detail |
|---|---|
| Part number | TPV300SET |
| Blade diameter | 300mm |
| Flow rate | 60 m³/min |
| Motor | 550W, 240V |
| Speed | 2,900 rpm |
| Noise (20cm from cover) | 90 dBA |
| Weight | 13.0kg |
| Ducting included | 5m expandable |
Typical environments
Small workshops, storerooms, confined spaces, and general industrial areas needing compact, portable ventilation.
FAQ
Is this suitable for direct welding fume capture at the source?
No — like ITM's other ventilator sets, this is a general-purpose, whole-space ventilation unit for dilution or confined-space air movement, not a targeted, at-source LEV device. For direct capture at the weld, a fume extraction arm is the better fit.
How does this compare to the larger ITM ventilator sets (400mm–600mm)?
The 300mm is the lightest and most compact in the range, suited to smaller spaces — larger diameters (400mm, 500mm, 600mm) deliver higher flow rates for bigger workshops or bays but come with more weight and cost.
Does it come with ducting?
Yes — this "SET" version includes 5m of expandable ducting. If you already have compatible ducting, ITM also sells the ventilator unit on its own (TPV300).
How loud is it in operation?
90 dBA measured 20cm from the cover — noticeably quieter than the larger 600mm unit, but hearing protection is still worth considering for close-proximity, extended use.
