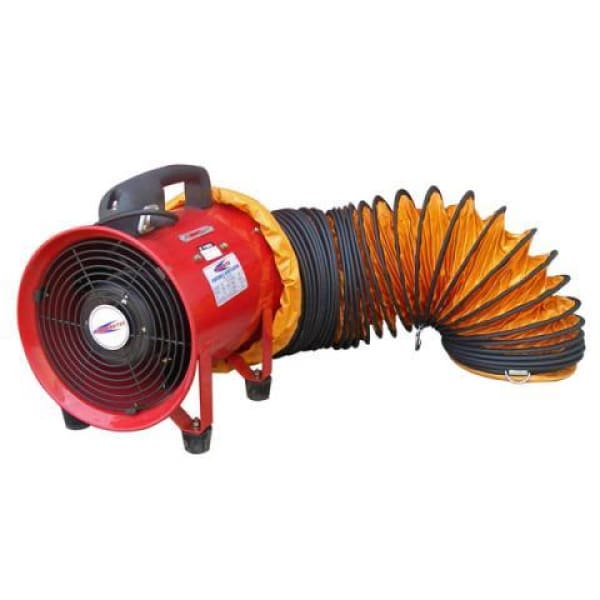

200MM EXTRACTION FAN SET WITH VENTILATOR AND 5M DUCT
Part No: JPV200-SS
FEATURES:
- Large capacity motor with E-class of TECO / TATUNG brand motor
- Long endurance
- Specially designed axial propeller, high static pressure, high flow rate, excellent strength
- Ventilation for mine, underground, drainage workshop, gas exhaust, dust blowing, fresh air
- Flexible duct with standard length 5M
- Extra duct can be ordered from 1M~20M (not included in this price)
- Air Volume: 35 Max.m3/min
- Voltage: 110/220V
- Mounting: Free Standing
- Input power: 150W
- Certification: CE,ROHS,SASO
- Frequency: 50/60 Hz
- Single phase
- Poles: 2
- Static pressure: 25/36 mm/Aq
- Blade diameter: 200 m/m
- Weight: 9kg
