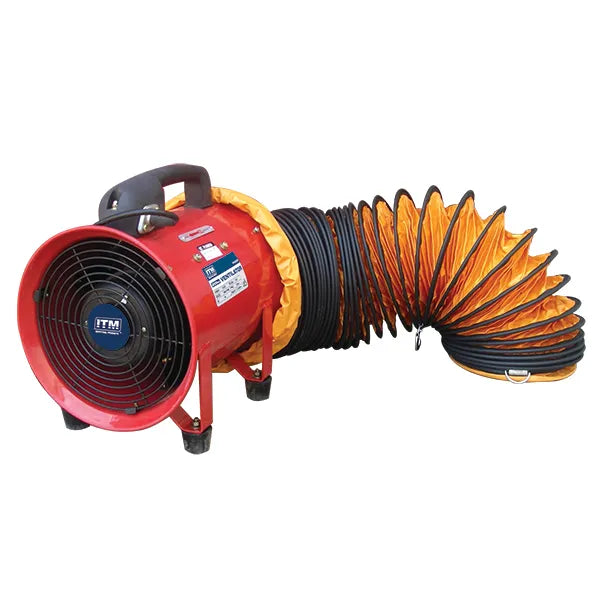

200MM EXTRACTION FAN SET WITH VENTILATOR AND 5M DUCT

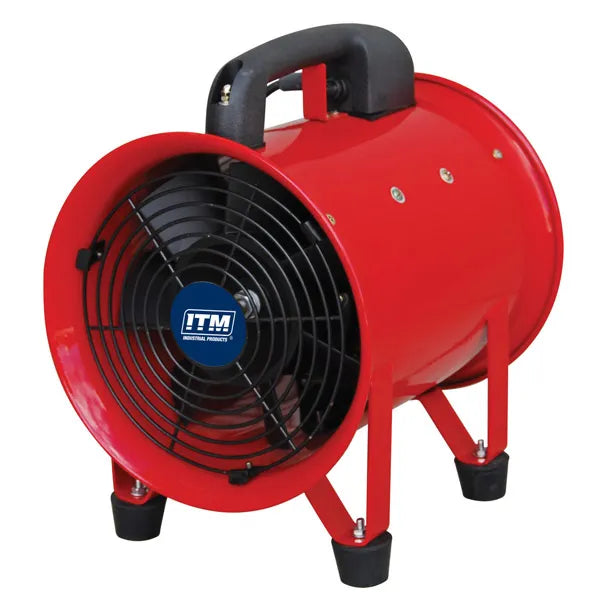

ITM 200mm Portable Ventilator Set
The smallest and lightest in ITM's portable ventilator range, the TPV200SET pairs a compact 150W motor with 5m of matched ducting — ideal for confined spaces, small workshops, and jobs where a light, easy-to-position unit matters more than raw airflow. At just 9.0kg, it's genuinely portable enough to move from job to job.
Why it matters
Confined-space work and smaller work areas often need ventilation, but not the airflow volume (or the weight) of a larger unit. The TPV200SET gives you a lightweight, dedicated ventilation option that's easy to carry, position, and store — useful for keeping air moving in tight spots where a bulkier ventilator would be impractical.
Key features
- Set includes ventilator and ducting — ready to deploy without sourcing components separately
- Dual-direction airflow — suitable for fume/dust extraction or blowing fresh air in
- Compact and lightweight — 9.0kg total, the lightest in ITM's ventilator set range
- Specially designed axial propeller — engineered for high static pressure and efficient airflow
- Easy positioning — well suited to confined spaces and tight access areas
Technical specifications
| Spec | Detail |
|---|---|
| Part number | TPV200SET |
| Blade diameter | 200mm |
| Flow rate | 25 m³/min |
| Motor | 150W, 240V |
| Speed | 2,900 rpm |
| Noise (20cm from cover) | 81 dBA |
| Weight | 9.0kg |

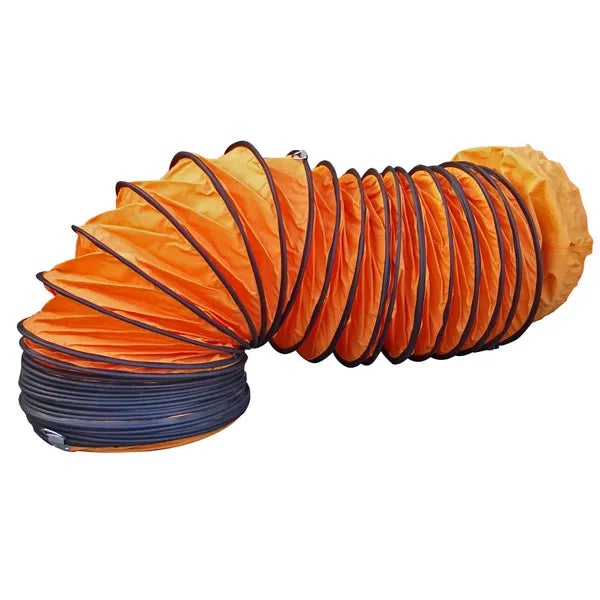

| Ducting included | 5m |
Typical environments
Confined spaces, small workshops, storerooms, and tight-access areas needing lightweight, portable ventilation.
FAQ
Is this suitable for direct welding fume capture at the source?
No — this is a general-purpose ventilation unit for whole-space air movement, not a targeted, at-source LEV device. For direct fume capture at the arc, a fume extraction arm is the better fit.
How does this compare to the 300mm set?
The 200mm moves less air (25 m³/min vs 60 m³/min) but is noticeably lighter and quieter — a good trade-off when the space is small and portability matters more than sheer volume.
Does it come with ducting?
Yes — this "SET" version includes 5m of ducting matched to the 200mm unit.
Is it quiet enough to run near people working?
At 81 dBA (20cm from cover), it's the quietest unit in ITM's ventilator range — still worth keeping hearing protection in mind for extended close-proximity use, but noticeably gentler than the larger units.
