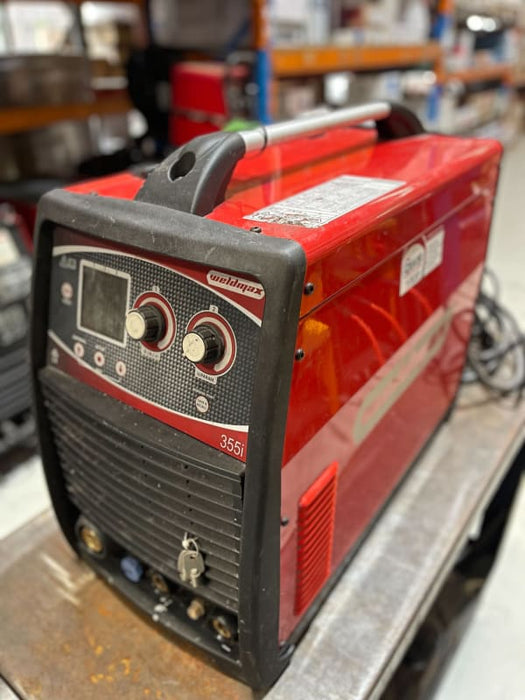

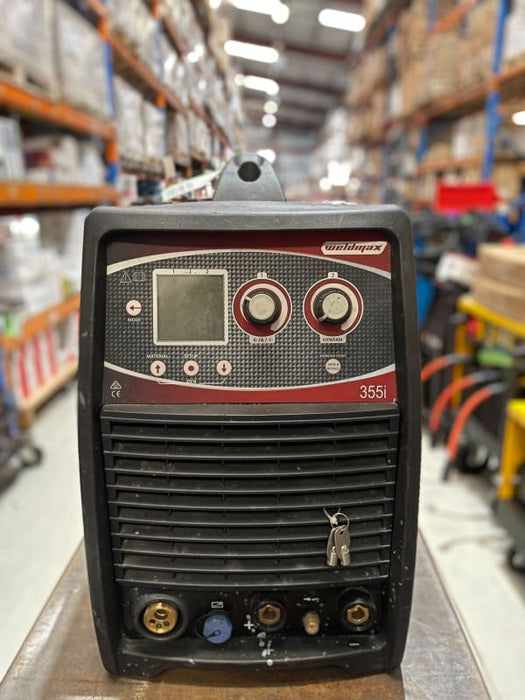

USED WELDMAX 355I COMPACT INVERTER MIG

Overview

WEMS355I The Weldmax 355i mig welding machine offers excellent arc characteristics & unsurpassed value. It is perfect for all materials and can perform difficult tasks with ease. The 355 range is the answer for those who require smooth, low spatter welding on all tasks from sheetmetal to heavy fabrications. WELDING PROCESSES INCLUDE: Synergic MIG / MAG welding Stick / Arc / MMA welding TIG / GTAW / Lift-Arc welding OPTIONAL UPGRADES CAN BE INSTALLED AT ANY TIME (including POST SALE) PULSE welding DOUBLE PULSE welding (includes SINGLE PULSE) ROOT welding SINGLE PULSE, DOUBLE PULSE & ROOT welding KEY FEATURES: Portable compact design with internal wire drive system 4x4 Geared Drive & Pressure Rollers. Simple and Intuitive screen design for easy operation. 5- 350 amps welding range. Euro Torch Connection. Superior Inverter processor controlled. Overtemp Protection. Reverse Polarity For Gas or Gasless Wire. Trigger Latch, Switch & Spot Control Thermostatic Fan Cooling.

Technical Specifications

• Dimensions (mm): 840 x 390 x 630
• Duty of Cycle 40°C MIG: 100% @ 280 Amps
• Maximum Welding Output: 350 Amps
• MIG Wire Diameter Range: 0.8 - 1.6mm
• No Load Voltage: 60V
• Primary Input Volatge: 415V 3 Phase
• Rated Output MMA: 100% @ 280 Amps
• Weight: 40kg
• Welding CUrrent Range: 30 - 350 Amps
