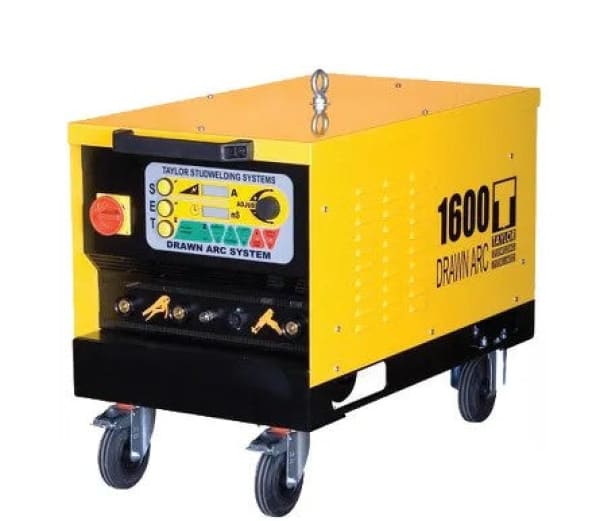

USED TAYLOR STUD WELDER DA1600
Compact maneuverable Drawn Arc stud welding equipment designed to weld up to 20mm diameter studs. With its simple robust construction the DA1600E offers an economic and reliable method of fixing mild steel and stainless steel weld studs. Fast, accurate and easy to operate, the Taylor Stud Welding System DA1600E gives you better Stud welding results. The new ‘E’ version now comes with microprocessor - electronic controls.
USED TAYLOR DA1600E STUD WELDING MACHINE FOR SALE...includes:
- Taylor DA1600E powersource
- DA3 stud welding handpiece with 4mtr lead
- Dual earth lead set with Heavy duty clamps
- 415V plug 3phase and 3mtr cable
- Tested and Tagged.
- 6month warranty
- Delivery to your workshop for all customers in Brisbane, Gold Coast, Sunshine Coast regions, and some other South East Queensland areas.
- Freight can be arranged to other areas at very competitive rates....check us for rates.
FEATURES:
- Welding stud range: 3 - 20mm
- Input: 3ph. 400V 50Hz
- Fusing: 65A
- Max. kVA rating: 65 kVA
- Welding current (10% cycle): 200 - 1600
- Welding time (m/sec): 20 - 1500
- Welding rate: 20 - 4/min
- No-load voltage: 95
- Class protection: IP23
- Cooling: Fan
- Transformer insulation class: H
- Dimensions (LxWxH): 810 x 470 x 620mm
- Weight: 151kg
- Robust and compact design housing all components in one cabinet
- Mounted on 4 wheels making the machine easily maneuverable (front has swivel wheels and fitted with brakes)
- Soak tested components used. All system undergo extensive durability tests
- Microprocessor controlled
- Infinitely adjustable welding time
- Solid state switching
- Visual current and time display
- Current reporting procedure
- Thermostatic controlled air cooling
- Recessed front and back panels protect controls and weld sockets
- Twist and lock plugs and sockets
- Hand tool can use any UK or European chuck system
- Gun lift test facility
- Chuck saver circuit fitted
- Fitted with gas facility
- Welds Short Cycle Drawn Arc
- CE & C-TICK approved
- With DA3 gun
DA3 FEATURES:
- Welding range: 3 - 20mm full base
- Stud length range: 100mm
- Cable size: 70mm Welding cable (m)
- Weight (less cable): 1.9kg
- Cable length: 5m
- Dimensions: 250 x 60 x 160 mm
- Designed for lightness and balance
- Comfortable to use, minimizes operator fatigue
- Made from impact resistant, high strength Verton
- Accessories – various accessories and attachments are available to solve specific problems
- Extensions are available for both hand tool and earth cables
This Stud welding package is also available for hire / rental.... Be impressed by the outstanding welding performance benefits of the Taylor DA1600E Stud welding - contact us now to see this machine in action - Demonstrations can be arranged in your workshop or at the QWS demo facility at Bulimba QLD.
