ULTIMA-TIG – for eco-friendly electrode grinding and optimal TIG-welding guaranteed

Inelco Grinders A/S and the patented wet grinder ULTIMA-TIG demonstrate an eco-friendly way to perfect accurate angles on tungsten electrodes – and therefore, perfect TIG-welding.

ULTIMA-TIG is constructed with a unique disposable container that automatically collects all toxic dust particles, eliminating the need for separate exhaust systems.

The container can be disposed of via your distributor or Inelco Grinders A/S. Cold wet grinding combined with the diamond wheels high grinding speed ensures that the tungsten electrode always has a polished and even surface.

With ULTIMA-TIG, you will achieve the exact angle that you require. A special locking device positions, the electrode precisely, and the grinding is carried out in the correct longitudinal direction along the electrode. A precise angle is not only important to the quality of the welding seams but it increases the number of re-ignitions between grinding, thus prolonging the electrode life.

ULTIMA-TIG is easy to use. Place the electrode in the electrode holder, adjust the pointer to the required grinding angle and insert the tungsten electrode into the combined stick-out and locking device. After the grinding has taken place you can, if needed, flatten the tip by placing the electrode clamp in the 90° position.

ULTIMA-TIG is available in 220V and 110V and comes complete with a 2 metre cable, 250ml bottle of grinding liquid, diamond wheel, electrode clamps (1.6 mm - 3.2 mm), electrode holder, disposable container complete with liquid and a stainless steel stand. ULTIMA-TIG is CE marked and meets all current EU

Filters

  • Sold out

    ULTIMA GRINDING LIQUID

    PN 75494000
    ULTIMA TIG
    $332.00 / each

    $332.00 / each
    Sold out

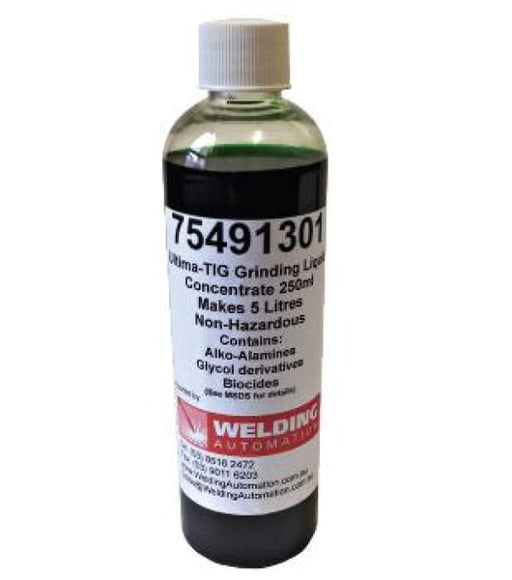

  • ULTIMA-TIG GRINDING FLUID CONCENTRATE 250ML

    PN 75491301
    ULTIMA TIG
    $166.69 / each

    Grinding Fluid Concentrate, 8 oz. (250ml). Used to Fill the Ultima-Tig Liquid Container - Ready to Use (PN 75494500) Used to fill the whee...

    View full details
    $166.69 / each

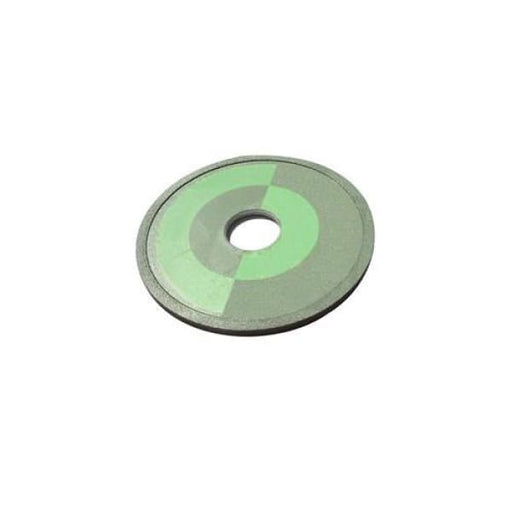

  • ULTIMA-TIG GRINDING WHEEL

    PN 44490512
    Ultima Tig
    $773.50 / each

    Diamond Wheel for Ultima-TIG Grinder Replacement abrasive diamond wheels for the Ultima-TIG wet grinder

    $773.50 / each
