ULTIMA-TIG WET TUNGSTEN GRINDER

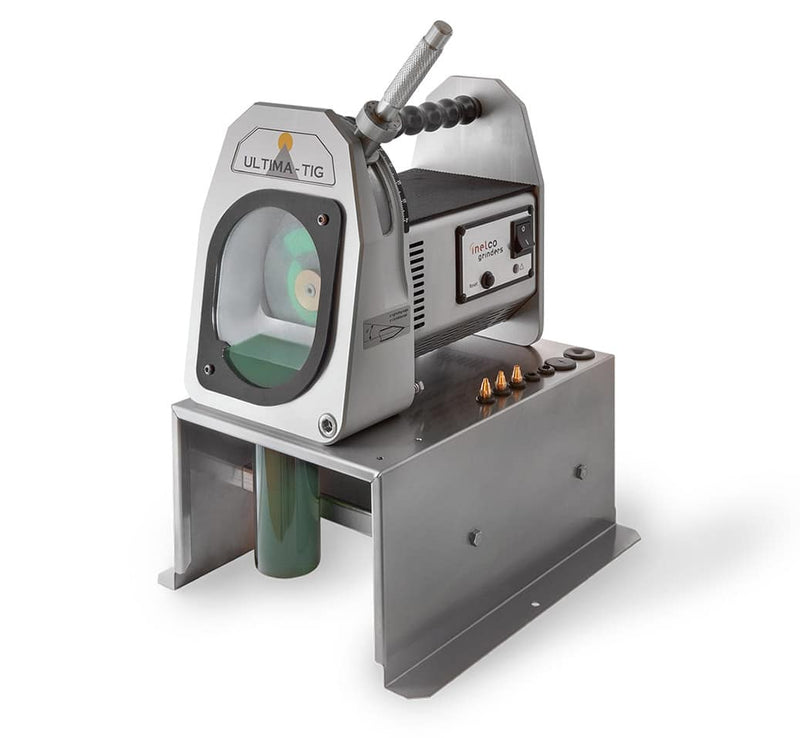

Ultima-TIG® Tungsten Electrode Grinder

The Ultima-TIG® Tungsten Grinder is a premium wet grinding system designed for professional TIG welders who demand precision, repeatability, and safety. Engineered to produce perfectly centred tungsten electrodes with accurate tip angles, the Ultima-TIG® improves arc stability, weld quality, and electrode lifespan while reducing grinding time and tungsten waste.

Unlike conventional grinding methods, the Ultima-TIG® uses a wet grinding process with a high-speed diamond grinding disc and integrated cooling liquid to prevent overheating, contamination, and tungsten damage. The result is a smooth, polished electrode surface that delivers consistent welding performance across manual, orbital, robotic, plasma, and automated welding applications.

Its sealed grinding chamber and disposable dust collection system help protect operators from hazardous tungsten dust while ensuring environmentally responsible disposal.

Why Choose the Ultima-TIG®?

• Precision grinding for TIG tungsten electrodes
• Adjustable grinding angles from 7.5° to 90°
• Produces perfectly centred electrode tips
• Wet grinding technology prevents overheating
• Sealed grinding chamber enhances operator safety
• Integrated tungsten dust collection system
• Reduces tungsten electrode consumption
• Delivers superior weld quality and arc stability
• Fast grinding process for increased productivity
• Suitable for workshop, field, orbital, robotic, and plasma welding operations

Key Benefits

Improve Weld Quality

Accurate grinding in the longitudinal direction of the tungsten electrode creates a consistent electrode geometry, resulting in improved arc control, cleaner welds, and fewer re-grinds.

Reduce Tungsten Waste

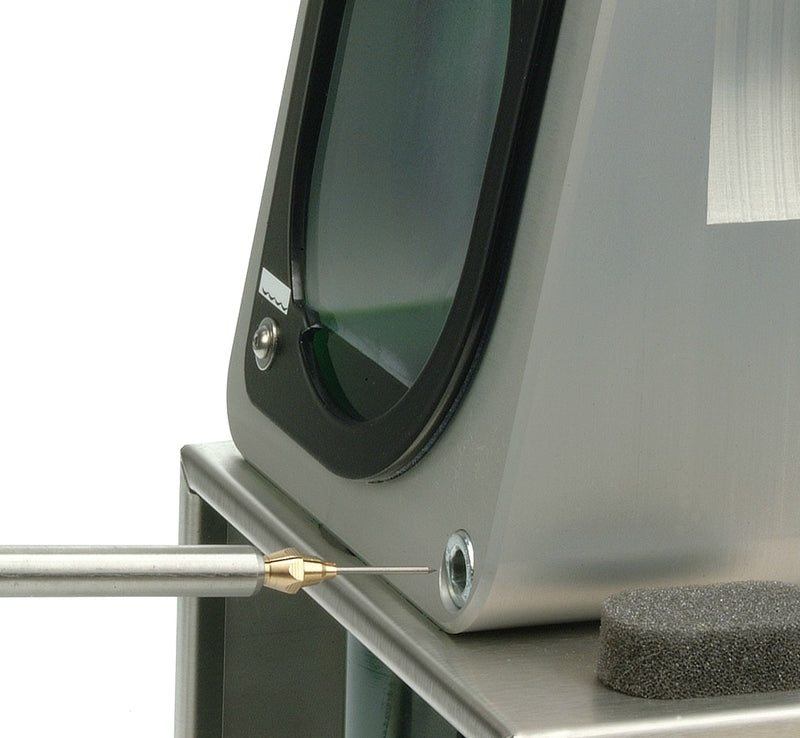

The specialised electrode holder and centring system allow grinding on electrodes as short as 8 mm with optional clamps, helping maximise tungsten usage and lower consumable costs.

Safer Working Environment

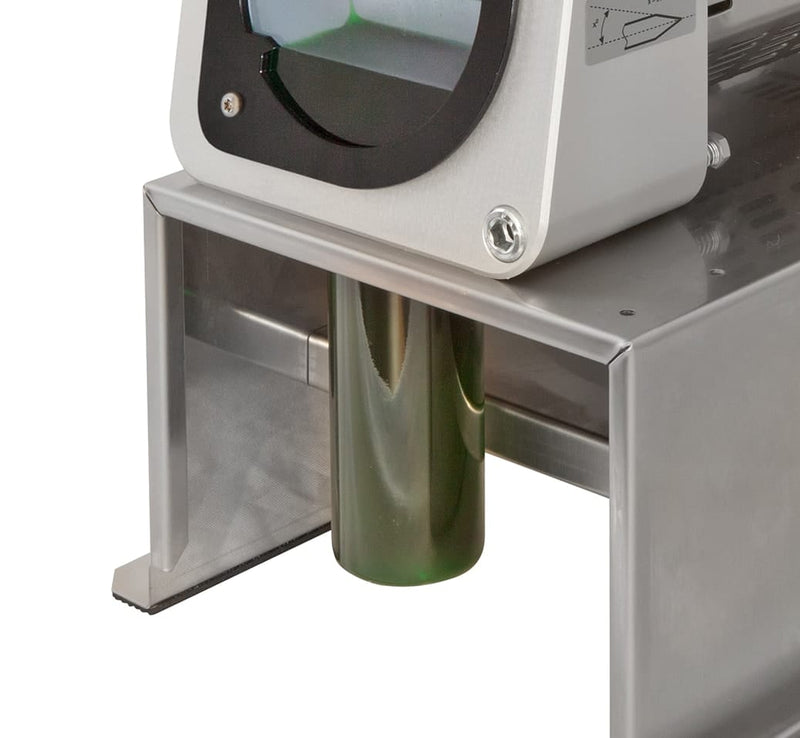

The enclosed grinding chamber automatically captures toxic tungsten dust in a disposable collection container, reducing airborne contamination and operator exposure.

Faster Grinding Performance

A powerful motor and high grinding speed produce a smooth electrode finish quickly, helping fabricators and welders minimise downtime.

Prevent Electrode Damage

The wet grinding system cools the tungsten during sharpening, preventing overheating, cracking, and damage to the electrode structure.

Technical Specifications

Grinding Capacity

• Electrode Size: Ø0.8 – 4.0 mm
• Minimum Electrode Length: 15 mm standard
• Minimum Length with Special Clamps: 8 mm

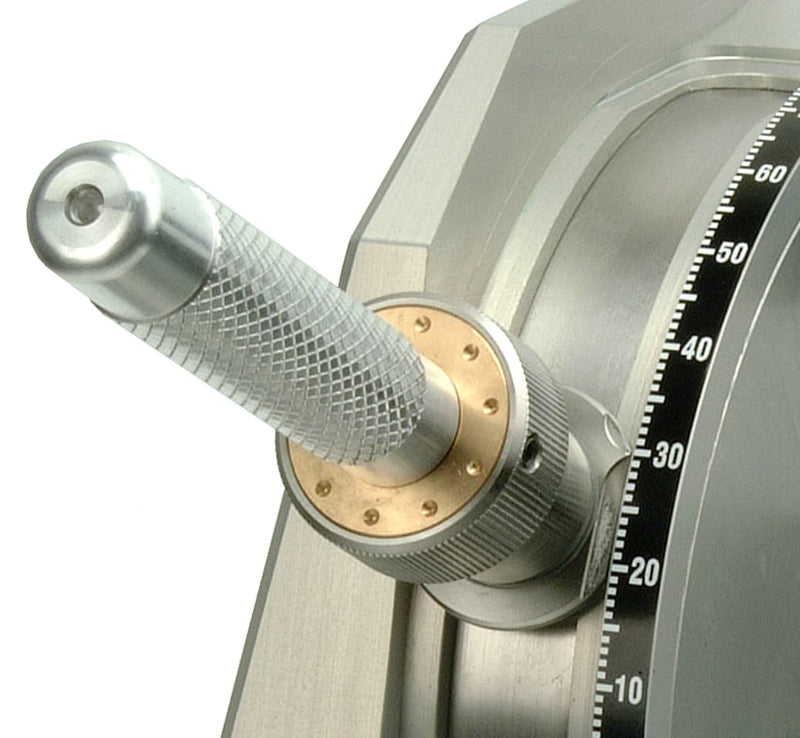

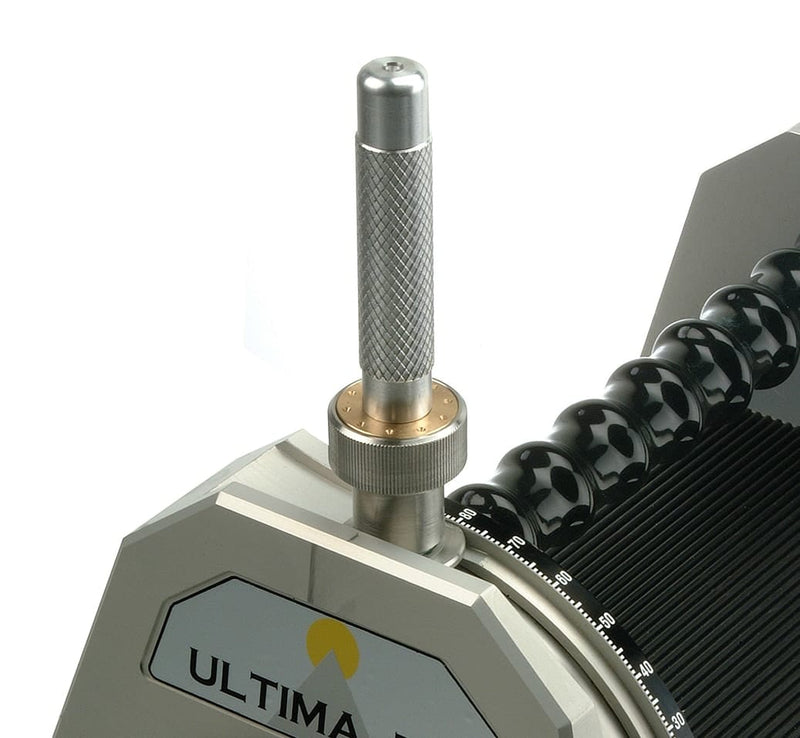

• Grinding Angle Range: 7.5° – 90°
• Equivalent Tip Angle: 15° – 180°

Machine Specifications

• Voltage: 110V or 220V, 50/60Hz
• Motor Power: 280W
• Motor Speed: 6000 RPM
• Grinding Speed: 31 m/s

Included as Standard

• Ultima-TIG® grinder
• Work table
• Diamond grinding disc
• Grinding liquid
• Electrode holder
• Clamps for 1.6 mm, 2.4 mm and 3.2 mm electrodes

Ideal Applications

The Ultima-TIG® is trusted across a wide range of welding sectors where electrode consistency directly affects weld quality:

• TIG Welding
• Orbital Welding
• Automated & Robotic Welding
• Plasma Welding
• Field Welding
• Aerospace Fabrication
• Food & Beverage Pipework
• Pharmaceutical Manufacturing
• Pressure Vessel Fabrication
• Stainless Steel Welding

Frequently Asked Questions

What is a tungsten grinder used for?

A tungsten grinder is used to sharpen and prepare tungsten electrodes for TIG welding. Proper grinding improves arc stability, weld quality, and electrode life.

Why is wet grinding better for tungsten electrodes?

Wet grinding cools the electrode during sharpening, preventing overheating and preserving the tungsten structure for improved welding performance.

Does the Ultima-TIG® collect tungsten dust?

Yes. The grinder features a sealed grinding chamber and disposable dust collection system that safely captures hazardous tungsten particles.

What electrode sizes can be ground?

The Ultima-TIG® accommodates tungsten electrodes from 0.8 mm to 4.0 mm diameter.

Can the grinding angle be adjusted?

Yes. The machine offers adjustable grinding angles from 7.5° to 90°, allowing precise electrode preparation for a variety of welding procedures.
