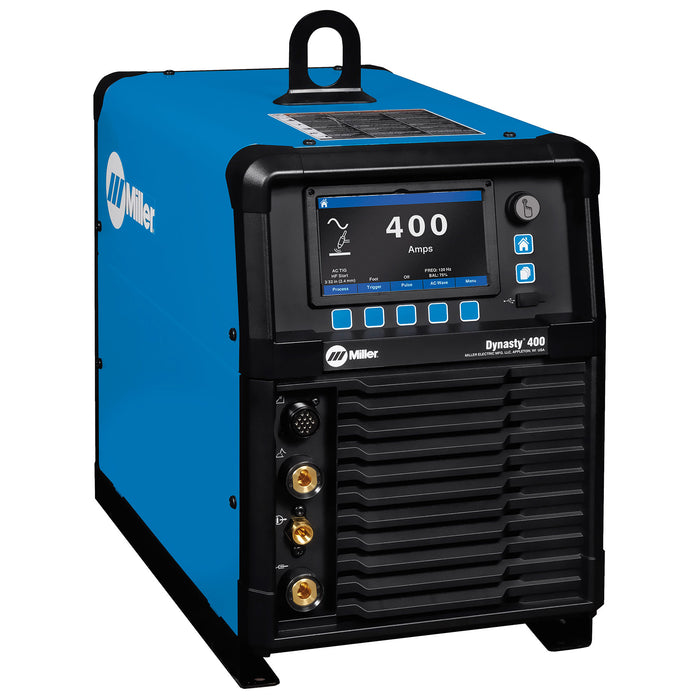

MILLER DYNASTY 400 TIG WELDER

Miller Dynasty 400 AC/DC TIG Welder

When only the finest AC/DC TIG performance will do, the Miller Dynasty 400 stands alone. Purpose-built for the most demanding precision TIG and Stick applications, the Dynasty 400 delivers unfailing arc accuracy, the highest quality aluminium weld results in the industry and a feature set that puts total control in the hands of even the most exacting welders. Capable of TIG welding aluminium up to 16mm, operating across a full 3–400A range and packed with exclusive Miller technologies, the Dynasty 400 is the benchmark against which all other AC/DC TIG welders are measured.

As real-world users have put it: "Best TIG welder you can buy, hands down" and "Simply the best investment I have ever made" — a machine that makes outstanding welders even better.

Blue Lightning™ — More Consistent Arc Starts, Every Time

The Dynasty 400 features Miller's exclusive Blue Lightning™ high-frequency arc starter, designed for non-contact arc initiation that is more consistent and reliable than traditional HF arc starters. Cleaner, more repeatable arc starts reduce tungsten contamination, eliminate downtime from failed starts and give operators the confidence to focus entirely on weld quality — not arc initiation.

Multiple AC Waveforms for Aluminium Perfection

For aluminium TIG welding, the Dynasty 400 offers a choice of four AC waveforms — Advanced, Soft, Sine and Triangular — giving operators precise control over arc characteristics to match the exact requirements of their application. Whether you need aggressive oxide cleaning on heavily oxidised aluminium, a soft arc for thin gauge work or a triangular waveform for a narrow, focused bead profile, the Dynasty 400 delivers it all.

AC Frequency Control (20–400 Hz) for Arc Width and Directional Precision

Adjustable AC frequency between 20 and 400 Hz allows operators to precisely control the width of the arc cone and the directional force of the arc. A higher frequency narrows the arc cone for concentrated, high-precision beads; lower frequencies widen the arc for broader heat distribution. This level of control is essential for high-quality aluminium fabrication in aerospace, precision engineering and anodised aluminium work.

Independent EP/EN Amplitude Control for Maximum Heat Precision

The Dynasty 400's AC TIG system features independent electrode positive (EP) and electrode negative (EN) amplitude control, allowing the heat input to the workpiece and the electrode to be set completely independently. Combined with extended AC balance control — which governs the oxide cleaning time in EN — this gives welders the fine-tuned precision needed for flawless welds on aluminium, particularly in applications where consistent penetration and appearance are critical quality requirements.

Quiet Pulse™ for a Distraction-Free Work Environment

Miller's Quiet Pulse™ technology creates a slower, more fluid transition between background and peak amperage during pulse TIG welding, resulting in the minimum possible audible noise output. In production environments where multiple machines operate simultaneously, Quiet Pulse™ significantly reduces operator fatigue and allows welders to concentrate entirely on the work at hand.

Hot Start™ and DIG Control for Stick Excellence

For Stick (SMAW) applications, the Dynasty 400 includes Hot Start™ adaptive control for positive, stick-free arc starts, and tailored DIG arc force control that allows the arc characteristics to be adjusted for specific electrodes — from smooth, fluid 7018 performance to stiffer, more penetrating 6010 behaviour. The Dynasty 400 handles both demanding cellulosic and low-hydrogen Stick welding with equal authority.

Locks & Limits for Procedural Compliance

The Dynasty 400's Locks & Limits feature allows supervisors and quality managers to define the acceptable parameter ranges for any given weld procedure. Operators can only adjust settings within the approved window — minimising deviations from welding procedure specifications, reducing rework and ensuring consistent compliance in quality-critical environments such as aerospace, pressure vessels and structural fabrication.

Auto-Line™ Technology (380–600V) for Reliable Power Anywhere

Auto-Line™ allows the Dynasty 400 to accept any three-phase input voltage between 380V and 600V with no manual reconnection required. This makes it ideal for industrial facilities with variable supply voltage, and ensures stable, consistent welding output even when input power quality is inconsistent or unreliable.

Cooler Power Supply (CPS) for Liquid-Cooled Torch Integration

The Dynasty 400 features an integrated 120V Cooler Power Supply (CPS) receptacle specifically designed to power the Miller Coolmate™ 3.5 water cooler. The machine's power switch simultaneously activates the receptacle — ensuring the torch cooling system is always operational when welding begins, protecting against torch failure from inadequate cooling.

Program Memory and USB Port for Workflow Efficiency

Named weld programs can be saved, recalled and transferred between machines via the built-in USB port — enabling fast job changeovers in production environments, consistent parameter recall across shifts, and simplified software updates without specialist intervention.

Key Specifications

Industry Applications

The Dynasty 400 is the preferred choice for aerospace, heavy fabrication, precision fabrication, aluminium ship repair, pipe and tube fabrication and anodised aluminium fabrication — any application where AC/DC TIG quality cannot be compromised.

Frequently Asked Questions:

What is the Miller Dynasty 400? The Miller Dynasty 400 is a professional 3-phase AC/DC TIG and Stick welder with a 3–400A welding range, capable of TIG welding aluminium up to 16mm. It features Blue Lightning™ HF arc starts, multiple AC waveforms, AC frequency control (20–400 Hz), Quiet Pulse™, Pro-Set™, Locks & Limits and Auto-Line™ technology (380–600V), and is widely regarded as the best AC/DC TIG welder available.

How thick can the Miller Dynasty 400 weld aluminium? The Miller Dynasty 400 can TIG weld aluminium up to 16mm thick using its AC TIG output.

What is Blue Lightning™ on the Miller Dynasty 400? Blue Lightning™ is Miller's proprietary high-frequency arc starter that provides non-contact arc initiation, delivering more consistent and reliable arc starts than traditional HF systems — reducing tungsten contamination and improving overall weld quality.

What AC waveforms does the Dynasty 400 support? The Dynasty 400 supports four selectable AC waveforms — Advanced, Soft, Sine and Triangular — allowing operators to optimise arc characteristics for specific aluminium welding applications.

What is the difference between the Miller Dynasty 300 and Dynasty 400? The Dynasty 400 is a dedicated, premium AC/DC TIG and Stick machine offering a higher amperage range (3–400A vs 5–300A), a wider AC frequency range (20–400 Hz vs 50–150 Hz on the 300 Multiprocess), greater aluminium thickness capacity (16mm vs 9.5mm), Blue Lightning™ HF arc starts, multiple AC waveforms, independent EP/EN amplitude control, Quiet Pulse™, Locks & Limits and Cooler Power Supply (CPS). The Dynasty 300 Multiprocess additionally supports MIG and Flux-Cored welding, making it better suited to portable multi-process applications, while the Dynasty 400 is the choice for operators who demand the highest possible AC/DC TIG performance.

What is Quiet Pulse™ on the Miller Dynasty 400? Quiet Pulse™ reduces the audible noise generated during pulse TIG welding by creating a slower, more fluid transition between background and peak amperage — allowing operators to focus without distraction in production environments.

What is the Locks & Limits feature on the Dynasty 400? Locks & Limits allows supervisors to restrict welding parameter adjustments to a defined range, ensuring operators cannot deviate from approved welding procedure specifications — essential for quality-controlled environments in aerospace, pressure vessel and structural fabrication.

Download Product Brochure: Miller Dynasty 400 AC/DC TIG Welder
