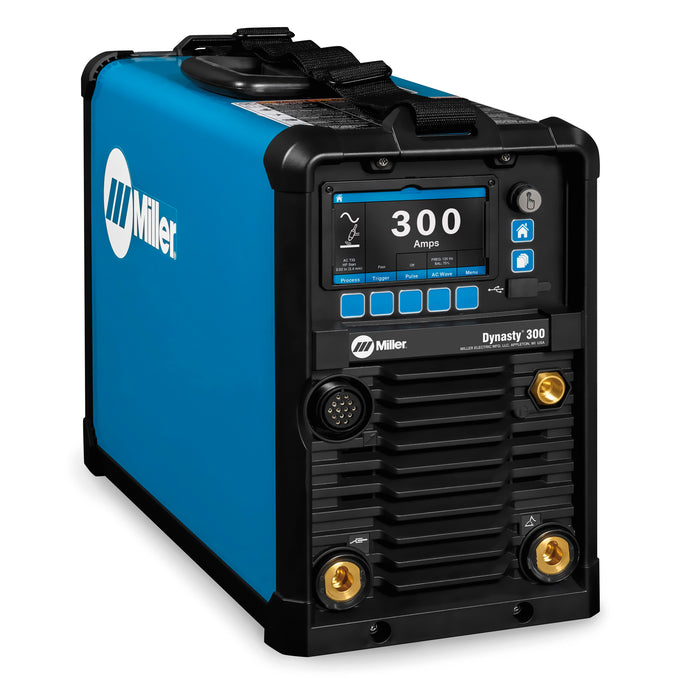

MILLER DYNASTY 300 MULTI PROCESS WELDER

Miller Dynasty® 300 Multiprocess Portable Welder

The Miller Dynasty® 300 Multiprocess represents the pinnacle of portable, precision multi-process welding. Built on Miller's industry-leading Dynasty TIG platform — renowned for its exceptional AC/DC arc quality — the Dynasty 300 Multiprocess expands into a complete all-in-one solution by adding CV output for MIG and Flux-Cored capability. The result is the most capable and versatile portable welding machine available, equally at home in precision aerospace fabrication, aluminium shipbuilding, pipe and tube work, construction and heavy maintenance and repair.

Weighing just 25kg and accepting any input voltage from 208 to 600V through Miller's Auto-Line™ technology, the Dynasty 300 Multiprocess goes wherever the job demands — without compromise.

Industry-Leading AC/DC TIG Performance

At its core, the Dynasty 300 Multiprocess delivers the TIG arc quality that the Dynasty series has built its reputation on. Supporting both AC and DC TIG with High-Frequency and Lift-Arc starts, plus full pulse capability (GTAW-P), it gives precision welders complete control over arc characteristics across the full current range of 5–300A. Material thickness capability spans 0.1mm to 9.5mm in DC TIG and 0.3mm to 9.5mm in AC TIG — making it equally capable on ultra-thin gauge stainless steel and heavier aluminium sections.

AC TIG for Aluminium Welding

The Dynasty 300 Multiprocess is a premier choice for aluminium TIG welding, with AC output enabling the precise oxide-cleaning arc action that aluminium requires. Whether you're working on anodised aluminium fabrication, aluminium ship repair or aerospace-grade aluminium components, the Dynasty 300's AC TIG performance delivers the penetration, bead appearance and control that critical aluminium applications demand.

Multi-Process Capability: MIG, Stick, Flux-Cored and Gouging

Beyond its TIG capabilities, the Dynasty 300 Multiprocess supports MIG (GMAW), Flux-Cored (FCAW/FCAW-S), AC/DC Stick (SMAW) and Air Carbon Arc Cutting and Gouging — covering every core welding and cutting process in a single, portable unit. When paired with the Miller ArcReach® SuitCase® wire feeder, it delivers a superior portable MIG solution for job-site and remote applications.

Auto-Line™ Technology for True Job-Site Flexibility

Miller's Auto-Line™ technology allows the Dynasty 300 Multiprocess to accept any single-phase or three-phase input voltage from 208V to 600V with no manual linking or reconnection required. Whether connecting to workshop power, generator supply or international power sources, the machine adapts instantly — making it ideal for contractors, rental fleets and operators working across varied environments and locations.

Intuitive LCD Interface with Pro-Set™ and Program Memory

The Dynasty 300 Multiprocess features a full-colour LCD display with on-screen explanations and dynamic images, guiding operators through machine setup and parameter selection with confidence. Pro-Set™ pre-set controls eliminate guesswork by automatically calculating key parameters — reducing setup time and dependence on operator experience for consistent results. Program Memory allows operators to name, save and instantly recall their favourite weld settings, while a built-in USB port enables easy software updates, settings backup and program transfer between machines.

Weldable Materials

Steel, stainless steel, aluminium and specialty metals — the Dynasty 300 Multiprocess handles the broadest range of base materials of any machine in its class.

Key Machine Specifications

TIG Welding Specifications

Stick Welding Specifications

MIG Welding Specifications (with ArcReach SuitCase 12)

Air Carbon Arc Gouging

Industry Applications

The Dynasty 300 Multiprocess is engineered for aerospace, heavy and precision fabrication, aluminium ship repair, pipe and tube fabrication, anodised aluminium fabrication, shipbuilding, construction, rental and maintenance and repair operations.

Frequently Asked Questions:

What is the Miller Dynasty 300 Multiprocess? The Miller Dynasty 300 Multiprocess is a portable AC/DC multi-process welder supporting TIG (with pulse), MIG, Stick, Flux-Cored and Air Carbon Arc Gouging. It weighs 25kg, accepts any input voltage from 208–600V via Auto-Line™ technology, and is widely regarded as the most versatile portable welder in its class.

Can the Miller Dynasty 300 weld aluminium? Yes. The Dynasty 300 Multiprocess features AC TIG output, enabling full aluminium TIG welding across material thicknesses of 0.3mm to 9.5mm. It is suited to aluminium ship repair, aerospace fabrication and anodised aluminium applications.

What processes does the Dynasty 300 Multiprocess support? The Dynasty 300 Multiprocess supports AC/DC TIG (with pulse), AC/DC Stick, MIG, Flux-Cored and Air Carbon Arc Cutting and Gouging across a current range of 5–300A.

What is Auto-Line™ technology on the Dynasty 300? Auto-Line™ allows the Dynasty 300 to accept any single or three-phase input voltage between 208V and 600V with no manual linking required. This makes it compatible with workshop power, generator power and international power supplies without modification.

What is Pro-Set™ on the Miller Dynasty 300? Pro-Set™ is a feature that automatically pre-sets key welding parameters based on the operator's inputs, reducing setup time and eliminating guesswork — particularly useful for less experienced operators or when switching quickly between jobs.

Does the Dynasty 300 Multiprocess have program memory? Yes. The Dynasty 300 features a Program Memory function that allows operators to name, save and recall favourite weld settings at any time. A USB port also enables settings backup and program transfer between multiple units.

What wire feeder is compatible with the Dynasty 300 for MIG welding? The Dynasty 300 Multiprocess is compatible with the Miller ArcReach® SuitCase® 12 wire feeder for MIG and Flux-Cored welding, supporting wire sizes from 0.6–1.2mm and spool sizes up to 15kg.

Download Product Brochure: Miller Dynasty® 300 Multiprocess Portable Welder
